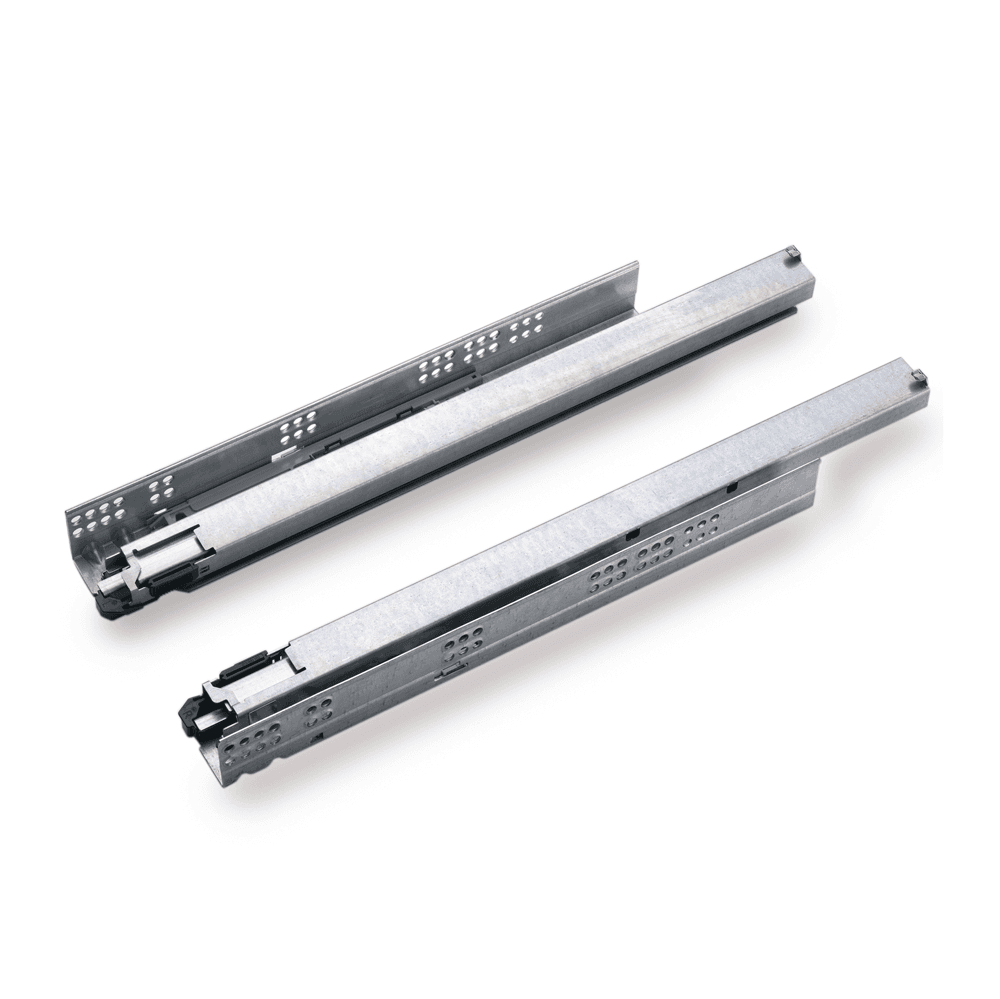

21" Dynapro 3D Undermount Drawer Slide for 3/4" Material, 132lb Capacity Full Extension Soft-Closing

Dynapro 3D Heavy Duty Undermount Slides for Drawer Thickness up to 3/4"

With a drawer as technically advanced as Dynapro, you will find many enhanced features. The ease in which Dynapro pulls open is smooth and comfortable. But Dynapro•s closing action is what makes an impression. Whether it is the standard soft-closing action or a mechanically enhanced soft-closing action, Dynapro drawers pull closed with a smooth, gentle motion that is nothing short of amazing.

Features:
• Face frame or frameless applications from 16mm (5/8") up to19mm (3/4") drawer material
• FACE FRAME APPLICATION MUST BE BLOCKED OUT
• Full extension with a synchronized mechanism
• Fully enclosed soft-close liquid damping system
• Self-latching front locking devices have comfortable release levers for drawer removal and installation
• Height adjustment +3.5mm
• Side adjustment ñ1.5mm
• Tilt adjustment +4.0mm
• Depth adjustment +4.5mm (optional)
• 132 lb load rating (60 kg) heavy duty
• 110 lb load rating (50 kg) extended length

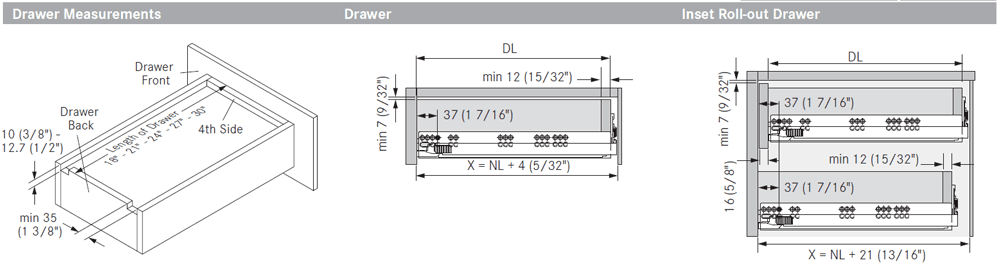

Setback on Standard Drawers: 4mm (5/32")
See Locking Device for Inset Drawer Setbacks

NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY
