30" Dynapro 19 3D Undermount Extended Length Drawer Slide for 3/4" Material, 110lb Capacity Full Extension Soft-Closing

Item # GDYNA3DHD19-30B
Mfr # F130135029604

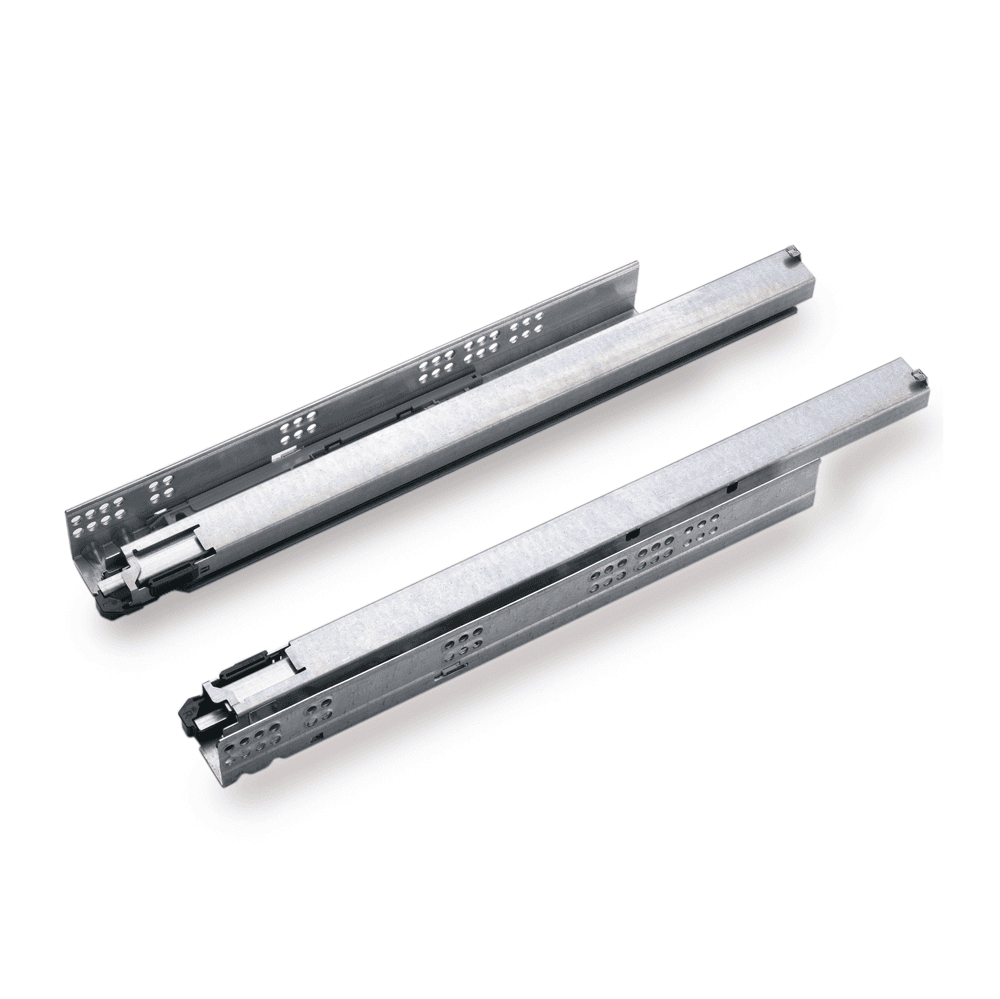

30 inch Dynapro 19 3D undermount drawer slide for 3/4 inch material, 132lb capacity full extension soft-closing - Front view

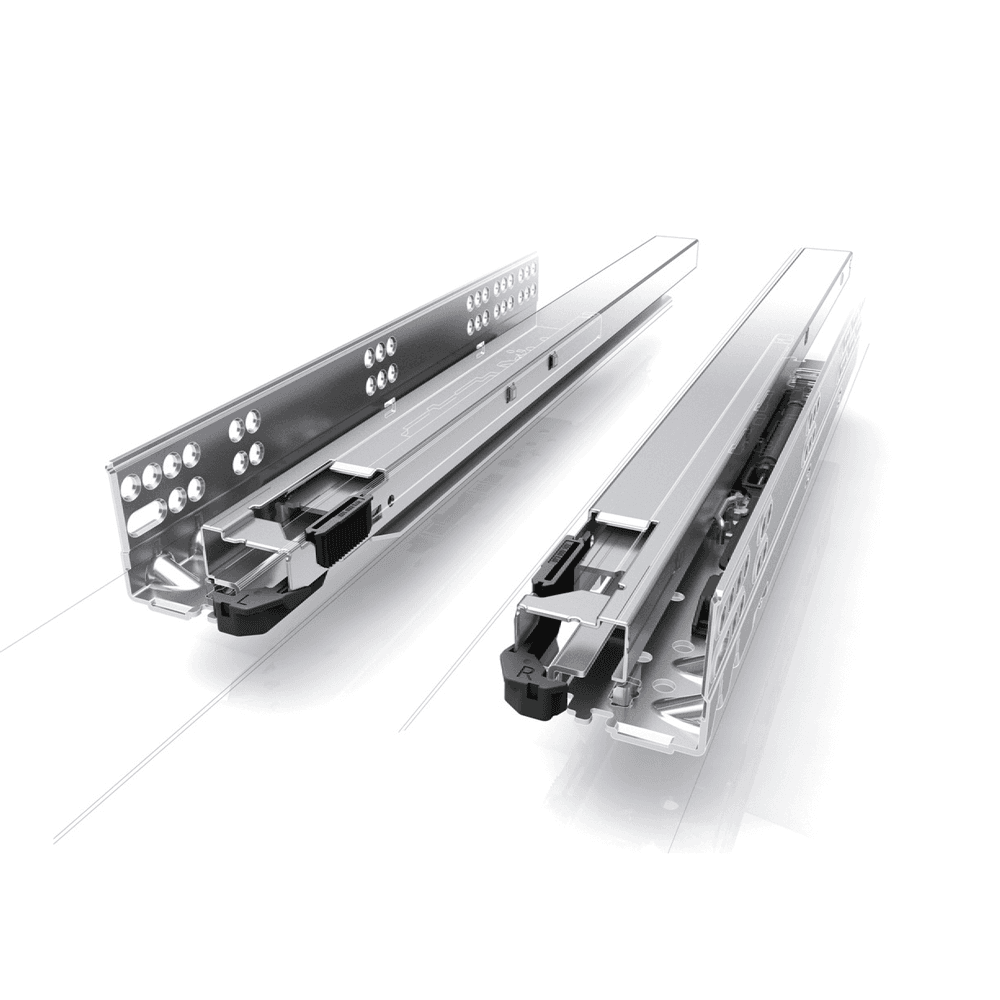

Dynapro 19 3D undermount drawer slide - Side view
30" Dynapro 16 3D Undermount Extended Length Drawer Slide for 5/8" Material, 110lb Capacity Full Extension Soft-Closing - Main Image
Full extension soft-closing drawer slide - Close-up view
Grass 30" Dynapro 19 3D undermount drawer slide - Back view
Grass Dynapro 19 3D undermount drawer slide - Bottom view
$105.37
/Pair
5 items
$101.83/Pair

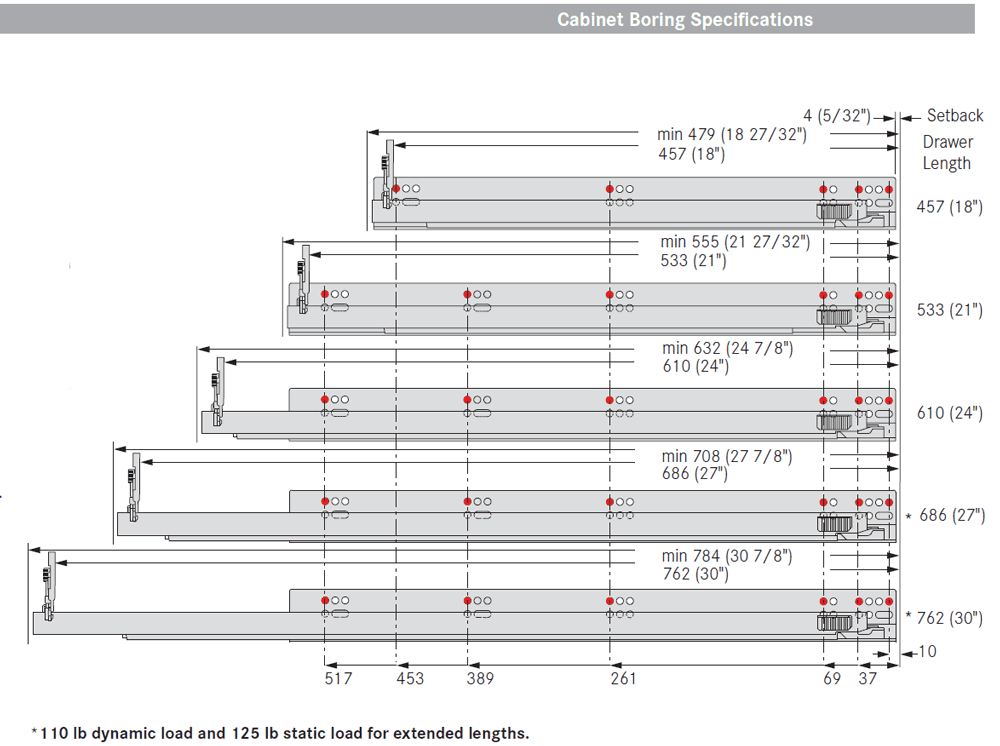

Drawer Length: 30"

Model: Dynapro 3D 19 HD

Load Capacity: 132lb

Material Thickness: 5/8" to 3/4"

Qty /
Min Order: 1
Qty mult. by: 1

Product Details

Dynapro 16 3D Heavy Duty Undermount Slides for Drawer Material Thickness 5/8" to 3/4"
EXTENDED LENGTH

With a drawer as technically advanced as Dynapro, you will find many enhanced features. The ease in which Dynapro pulls open is smooth and comfortable. But Dynapro’s closing action is what makes an impression. Whether it is the standard soft-closing action or a mechanically enhanced soft-closing action, Dynapro drawers pull closed with a smooth, gentle motion that is nothing short of amazing.

Features:

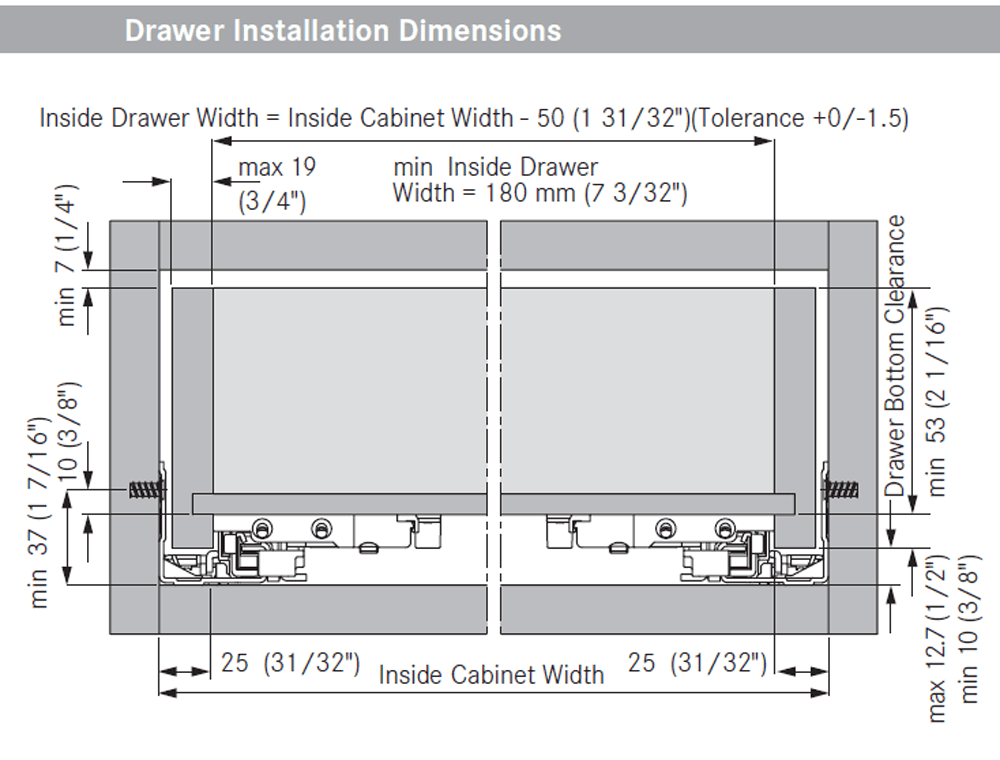

• Face frame or frameless applications from 16mm (5/8") to19mm (3/4") drawer material
• FACE FRAME APPLICTIONS MUST BE BLOCKED OUT
• Full extension with a synchronized mechanism
• Fully enclosed soft-close liquid damping system
• Self-latching front locking devices have comfortable release levers for drawer removal and installation
• Height adjustment +3.5mm
• Side adjustment ±1.5mm
• Tilt adjustment +4.0mm
• Depth adjustment +4.5mm (optional)
• 110 lb load rating (50 kg) extended length

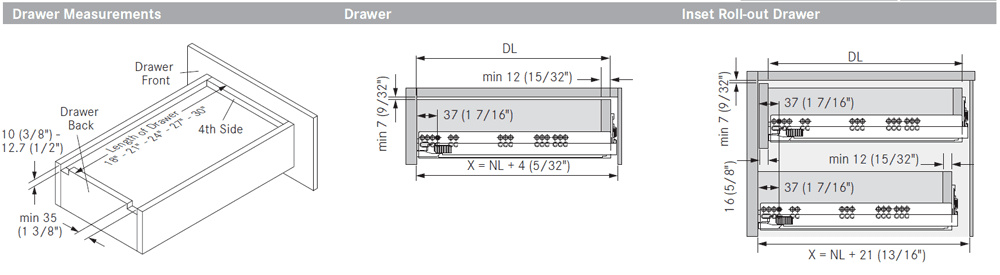

Drawer Setback: 4mm (5/32")
See Locking Device for Inset Drawer Setbacks

NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY

Specifications

Box Quantity5
Length
FinishZinc
Drawer Length30"
Closing TypeSoft-Closing
ModelDynapro 3D 19 HD
Load Capacity132lb
TravelFull Extension
Product TypeUndermount Drawer Slide
Left or RightBoth (Pair)
Cabinet Type
Mounting TypeUndermount
Material
Slide Type
Height
Certifications
Width
Material Thickness5/8" to 3/4"
Cabinet Width
Thickness
Overlay
