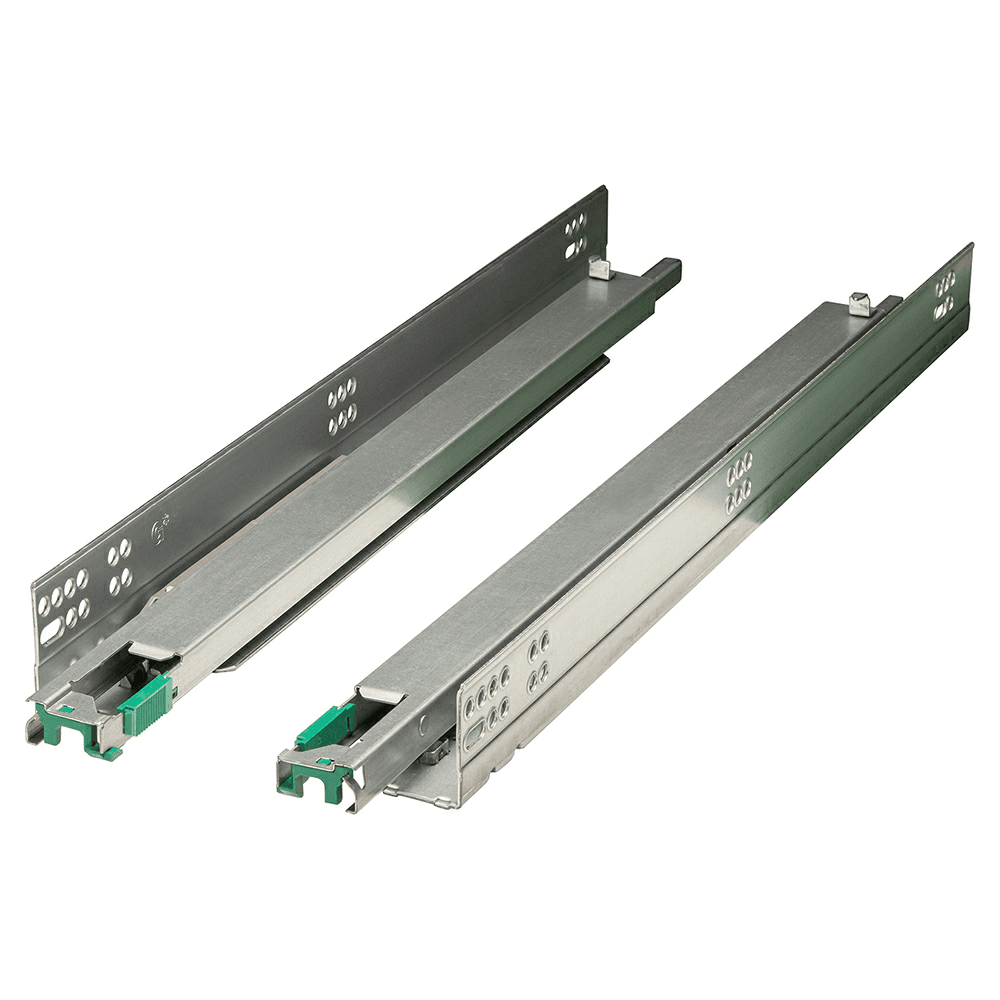

21" Dynapro 2.0 Undermount Drawer Slide for 5/8" Material, 100lb Capacity, Full Extension, Soft-Closing
Item # GDYNAPRO2-21B
•Mfr # 13104-03
$20.99
/Pair
5 items
$19.10/Pair
200 items
$18.17/Pair
Drawer Length: 21"
Model: Dynapro 2.0
Load Capacity: 100lb
Material Thickness: 1/2" to 5/8"
Min Order: 1
Quantity Multiple by: 1
Product Details
Dynapro 2.0 Undermount Slides for Drawer Thickness up to 5/8"
Dynapro2.0 has all of the key ingredients for a superb undermount slide system. Synchronized for a smooth running action, easy open pull force, and heavy carrying capacities are just a few of the features of Dynapro2.0. With the ever-increasing emphasis on convenience and comfort, this synchronized full extension slide system combines superior quality of motion and outstanding running performance.
Features:
Face frame or frameless applications from 12.7mm (1/2") to 16mm (5/8") drawer material

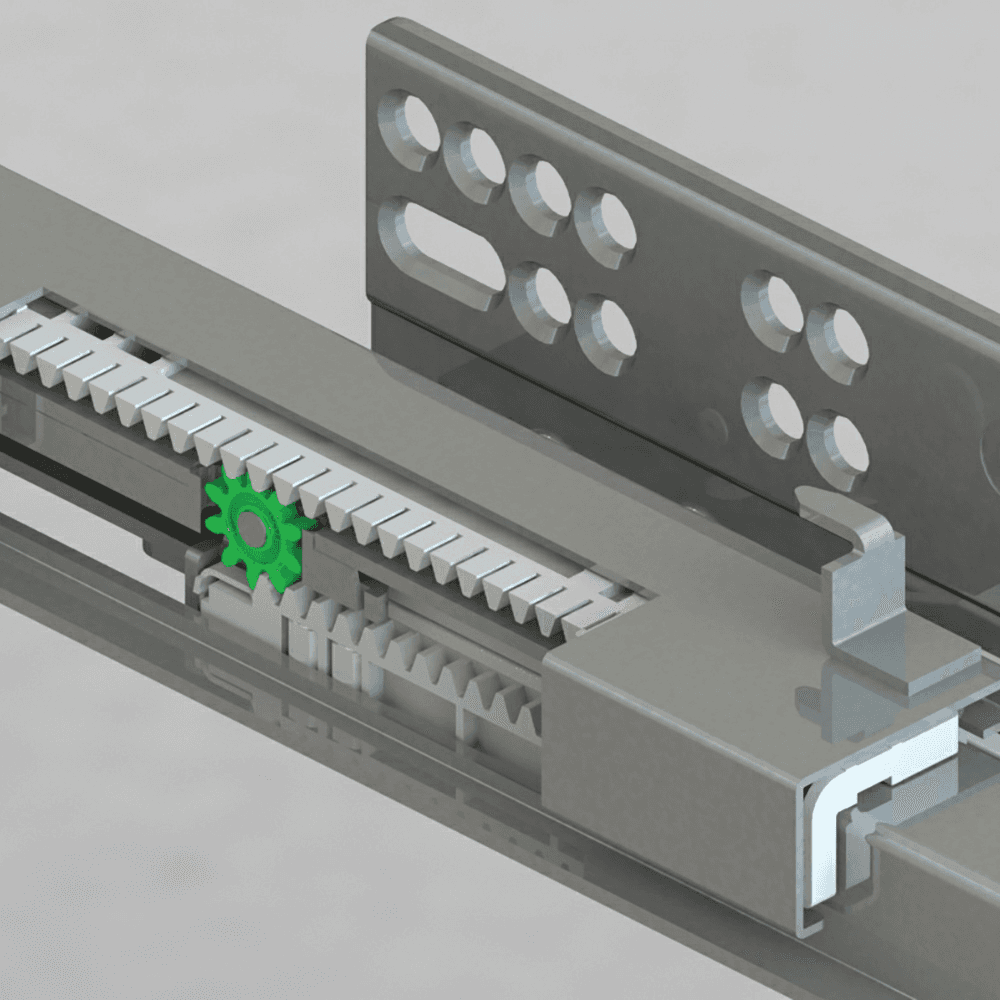

Full extension with a synchronized mechanism
Soft-close liquid damping system

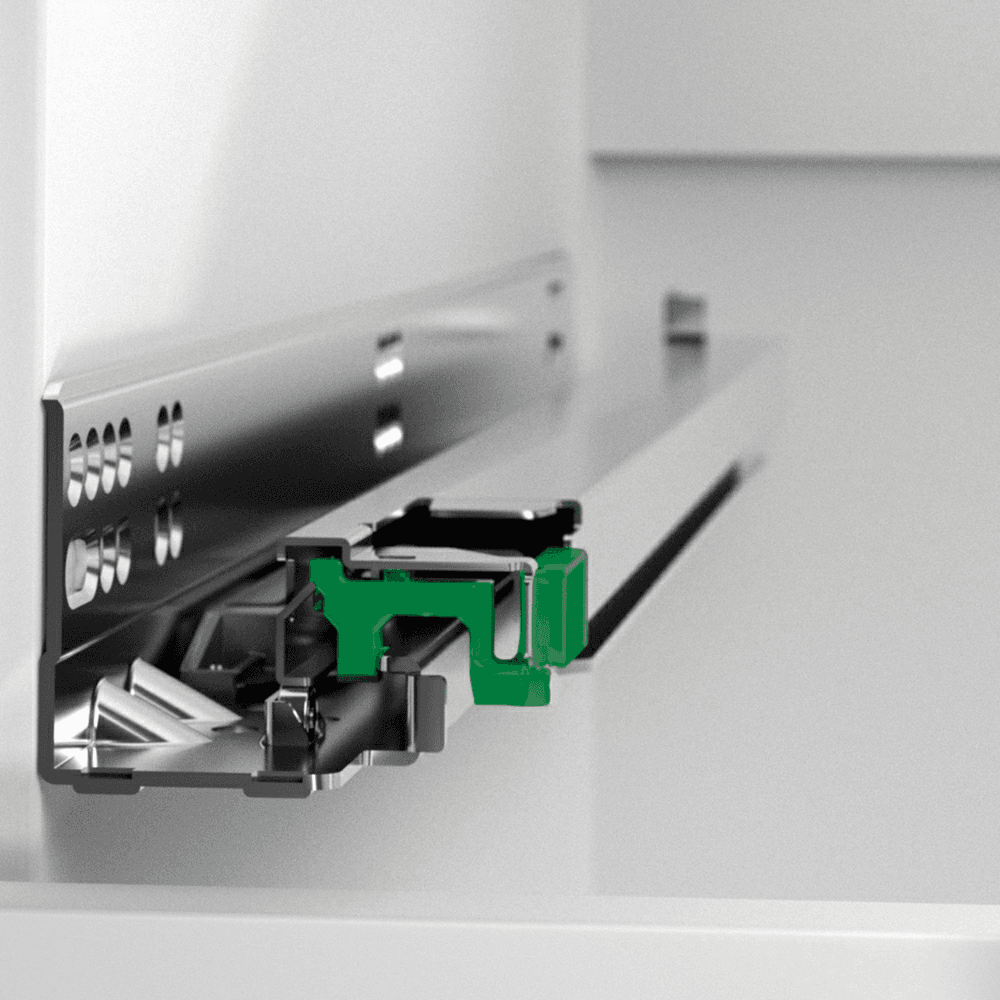

Self-latching front locking devices have easy release levers for drawer removal and installation
Height adjustment +3.5mm with suitable front locking device
Side adjustment ñ1.5mm with suitable front locking device
Depth adjustment +3.0mm forward with suitable front locking device
100lb. static load rating (45 kg)
Setback on Standard Drawers: 4mm (5/32")
NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY
Dynapro2.0 has all of the key ingredients for a superb undermount slide system. Synchronized for a smooth running action, easy open pull force, and heavy carrying capacities are just a few of the features of Dynapro2.0. With the ever-increasing emphasis on convenience and comfort, this synchronized full extension slide system combines superior quality of motion and outstanding running performance.
Features:
Face frame or frameless applications from 12.7mm (1/2") to 16mm (5/8") drawer material
Full extension with a synchronized mechanism
Soft-close liquid damping system
Self-latching front locking devices have easy release levers for drawer removal and installation
Height adjustment +3.5mm with suitable front locking device
Side adjustment ñ1.5mm with suitable front locking device
Depth adjustment +3.0mm forward with suitable front locking device
100lb. static load rating (45 kg)
Setback on Standard Drawers: 4mm (5/32")
NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY
Downloads
Specifications
Length | |
Finish | Zinc |
Drawer Length | 21" |
Closing Type | Soft-Closing |
Model | Dynapro 2.0 |
Load Capacity | 100lb |
Travel | Full Extension |
Product Type | Undermount Drawer Slide |
Left or Right | Both (Pair) |
Cabinet Type | |
Mounting Type | Undermount |
Material | |
Slide Type | |
Height | |
Certifications | |
Width | |
Material Thickness | 1/2" to 5/8" |
Cabinet Width | |
Thickness | |
Overlay |
