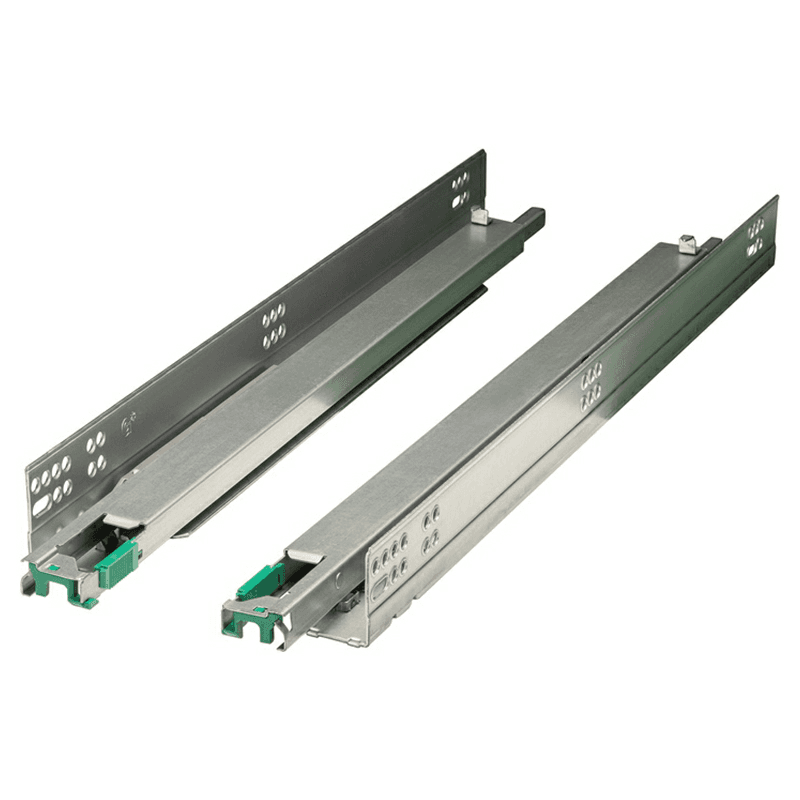

12" Dynapro 2.0 Undermount Drawer Slide for 3/4" Material, 100lb Capacity, Full Extension, Soft-Closing
Item # GDYNAPRO234-12B
•Mfr # 13106-03
Drawer Length:
Product Details
Dynapro 2.0 Undermount Slides for Drawer Thickness up to 3/4"
Dynapro2.0 has all of the key ingredients for a superb undermount slide system. Synchronized for a smooth running action, easy open pull force, and heavy carrying capacities are just a few of the features of Dynapro2.0. With the ever-increasing emphasis on convenience and comfort, this synchronized full extension slide system combines superior quality of motion and outstanding running performance.
Features:
• Face frame or frameless applications from 16mm (5/8") to 19mm (3/4") drawer material
• Full extension with a synchronized mechanism
• Soft-close liquid damping system
• Self-latching front locking devices have easy release levers for drawer removal and installation
• Height adjustment +3.5mm with suitable front locking device
• Side adjustment ñ1.5mm with suitable front locking device
• Depth adjustment +3.0mm forward with suitable front locking device
• 100 lb. static load rating (45 kg)
Setback on Standard Drawers: 4mm (5/32")
NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY
Dynapro2.0 has all of the key ingredients for a superb undermount slide system. Synchronized for a smooth running action, easy open pull force, and heavy carrying capacities are just a few of the features of Dynapro2.0. With the ever-increasing emphasis on convenience and comfort, this synchronized full extension slide system combines superior quality of motion and outstanding running performance.
Features:
• Face frame or frameless applications from 16mm (5/8") to 19mm (3/4") drawer material
• Full extension with a synchronized mechanism
• Soft-close liquid damping system
• Self-latching front locking devices have easy release levers for drawer removal and installation
• Height adjustment +3.5mm with suitable front locking device
• Side adjustment ñ1.5mm with suitable front locking device
• Depth adjustment +3.0mm forward with suitable front locking device
• 100 lb. static load rating (45 kg)
Setback on Standard Drawers: 4mm (5/32")
NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY
Downloads
Specifications
| Box Quantity | 5 |
| Finish | Zinc |
| Drawer Length | 12" |
| Closing Type | Soft-Closing |
| Model | Dynapro 2.0 |
| Load Capacity | 100Ib |
| Travel | Full Extension |
| Product Type | Undermount Drawer Slide |
| Left or Right | Both (Pair) |
| Mounting Type | Undermount |
| Material Thickness | 5/8" to 3/4" |
