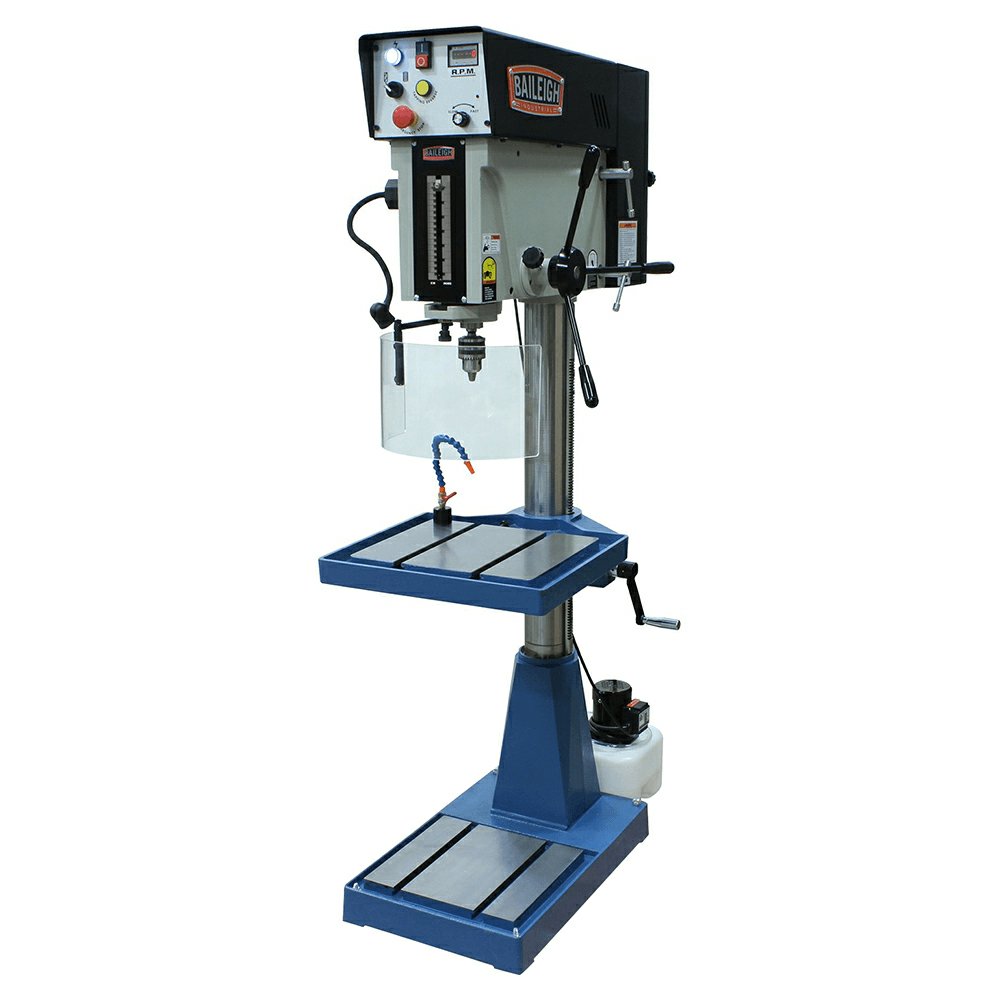

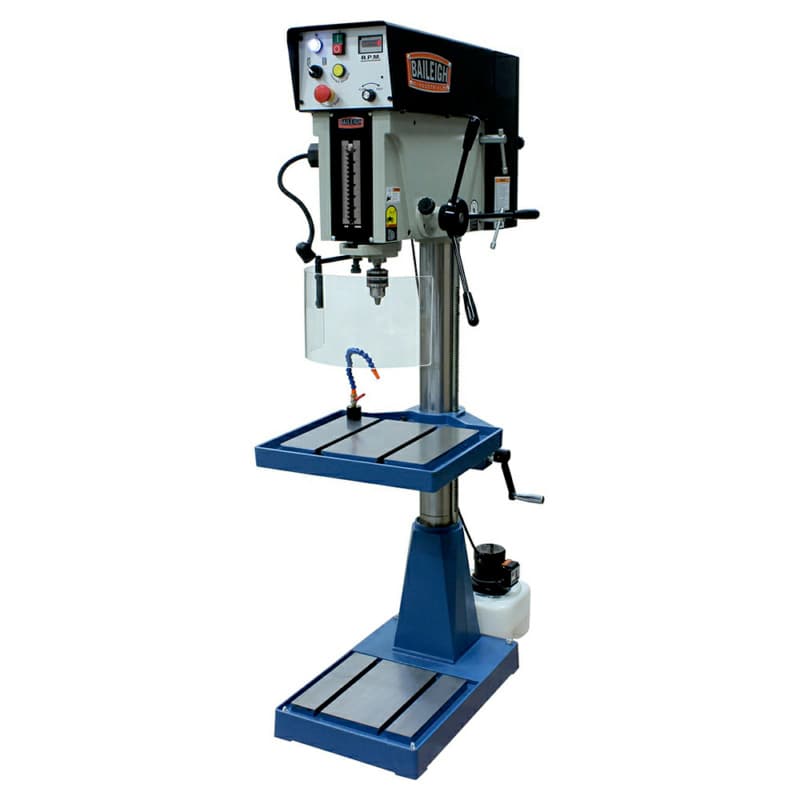

Baileigh DP-1200VS 2 HP Variable Speed Drill Press
This item may incur additional shipping costs and lead times.
Product Details

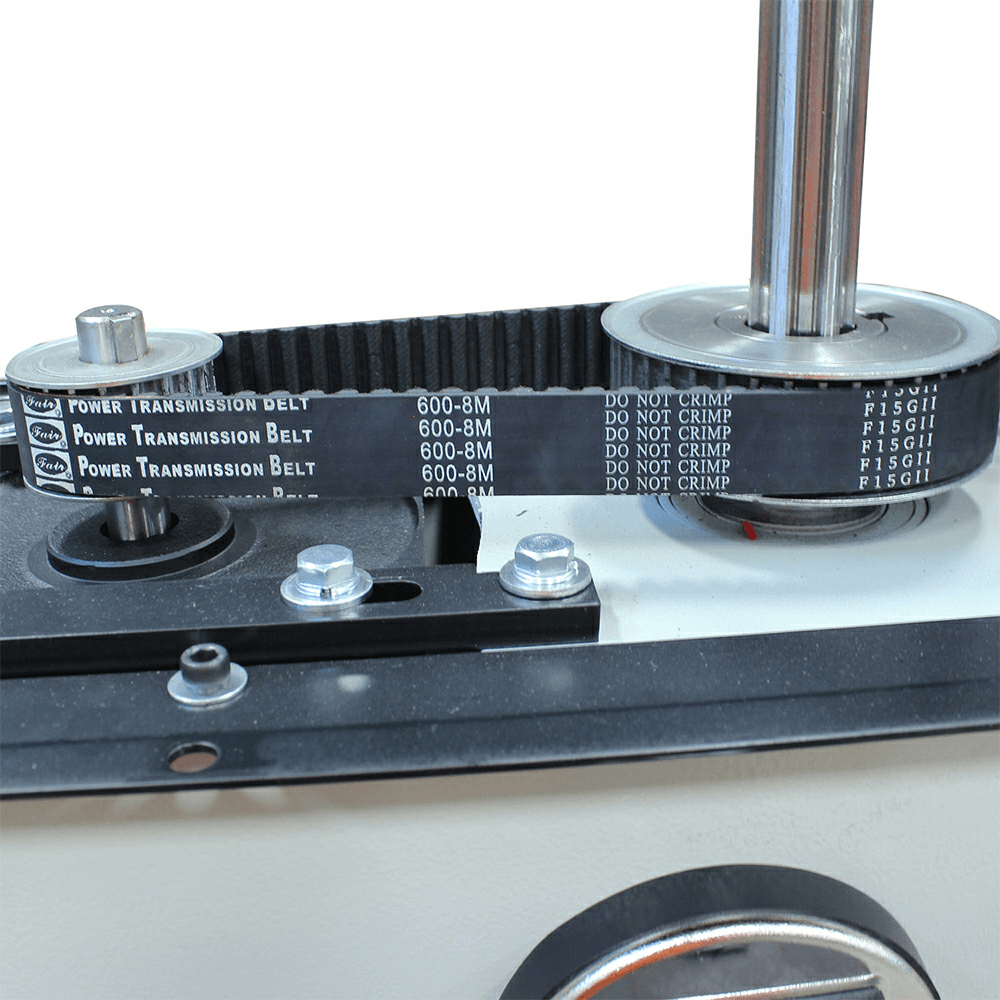

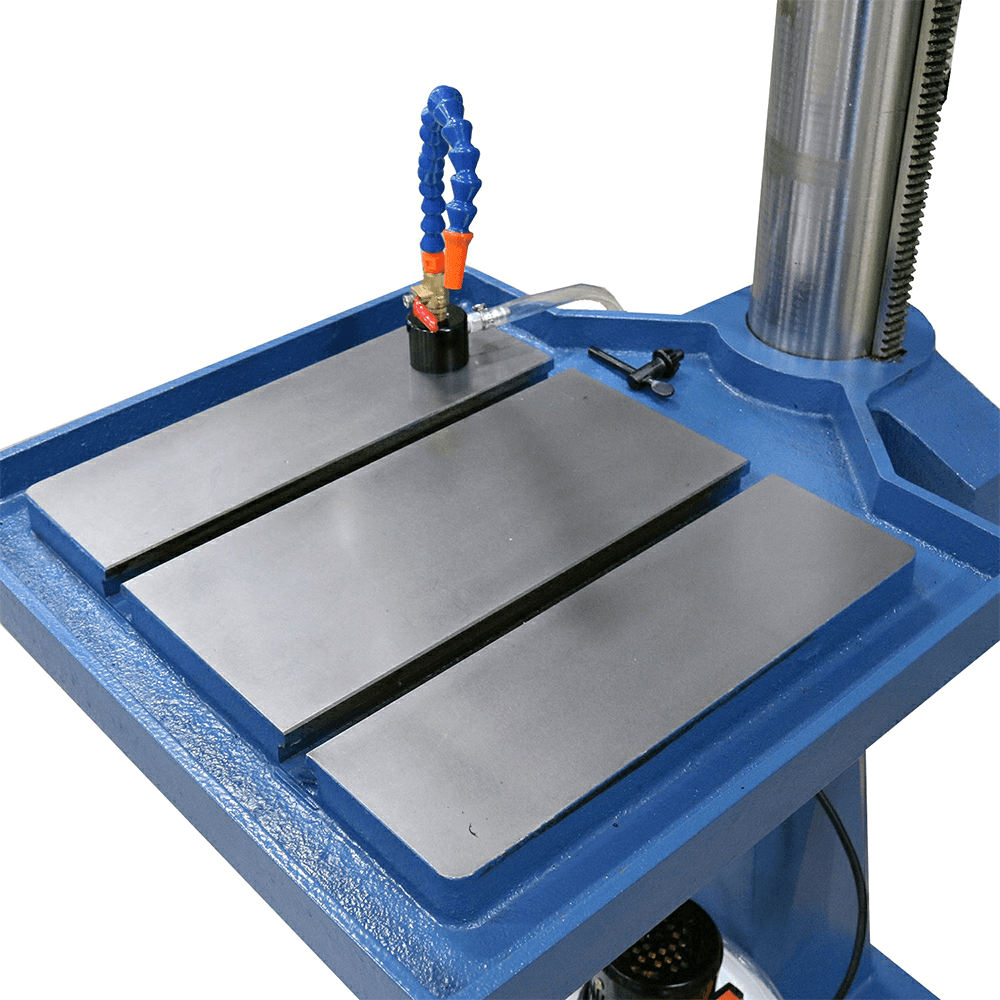

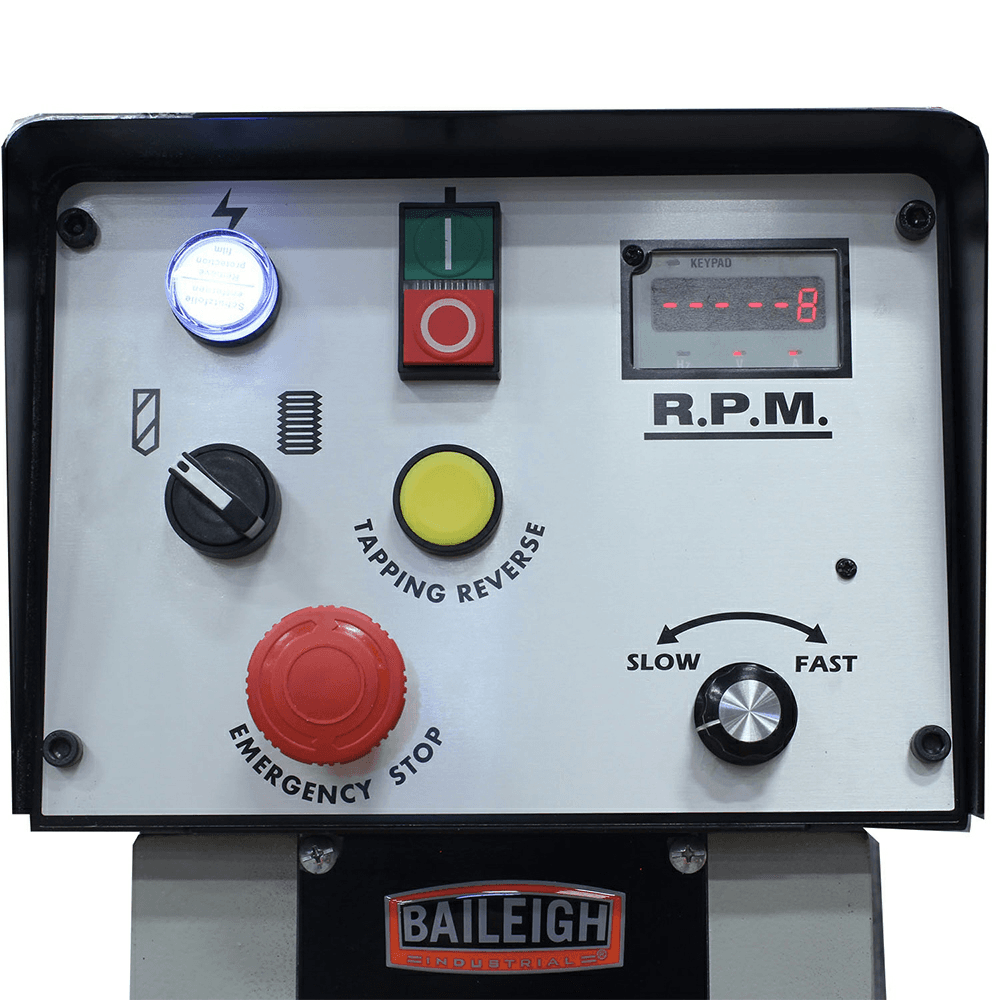

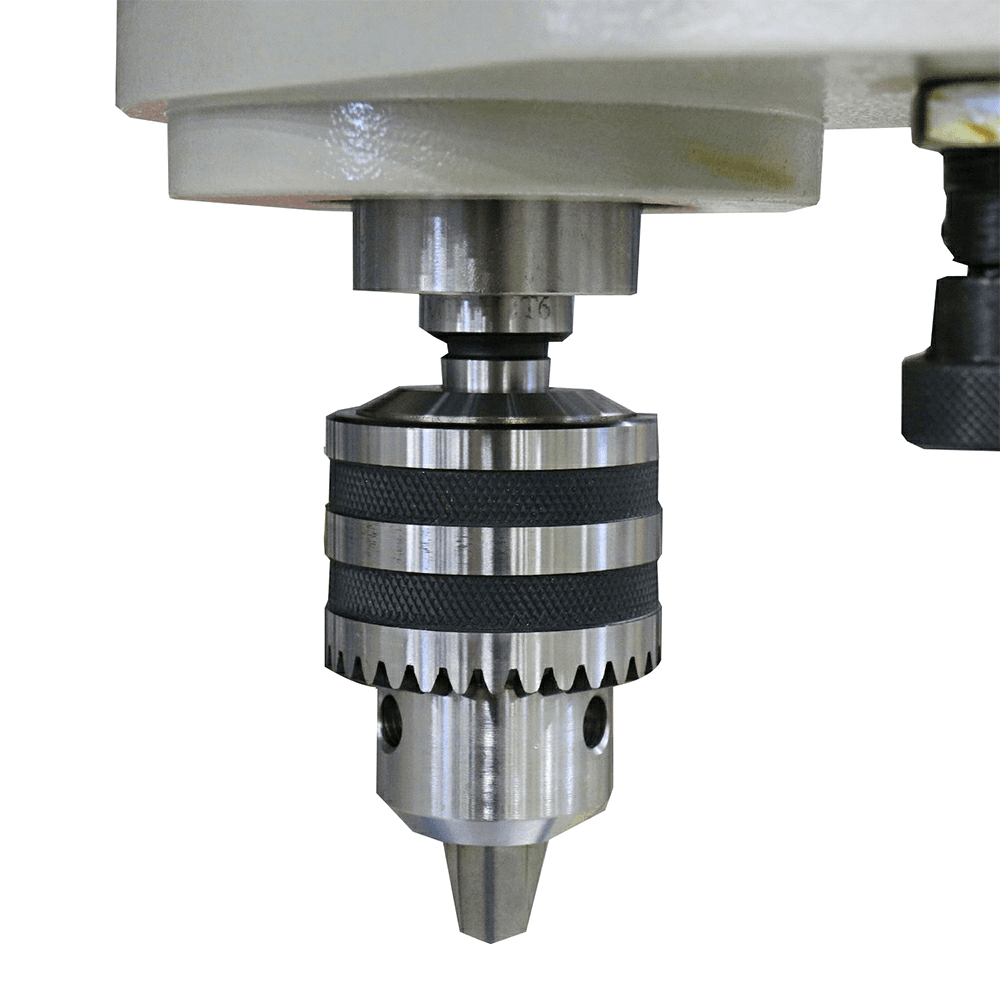

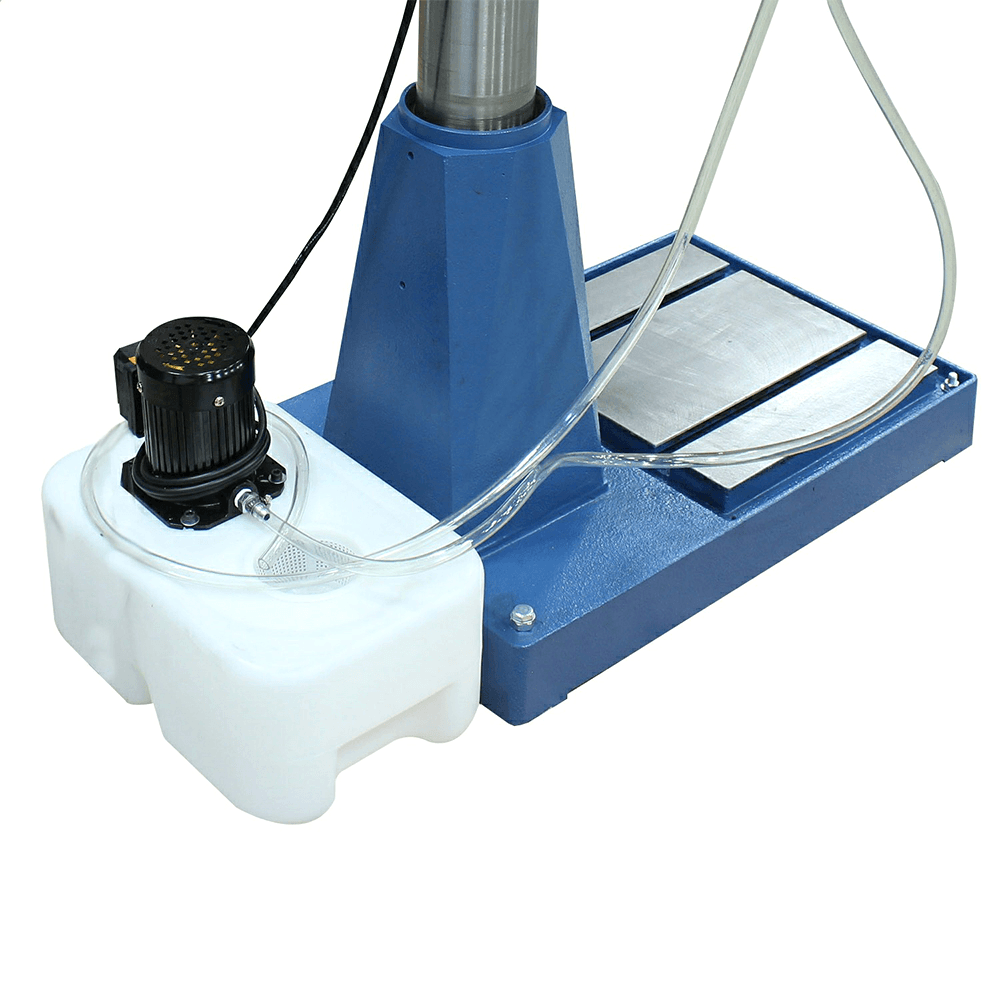

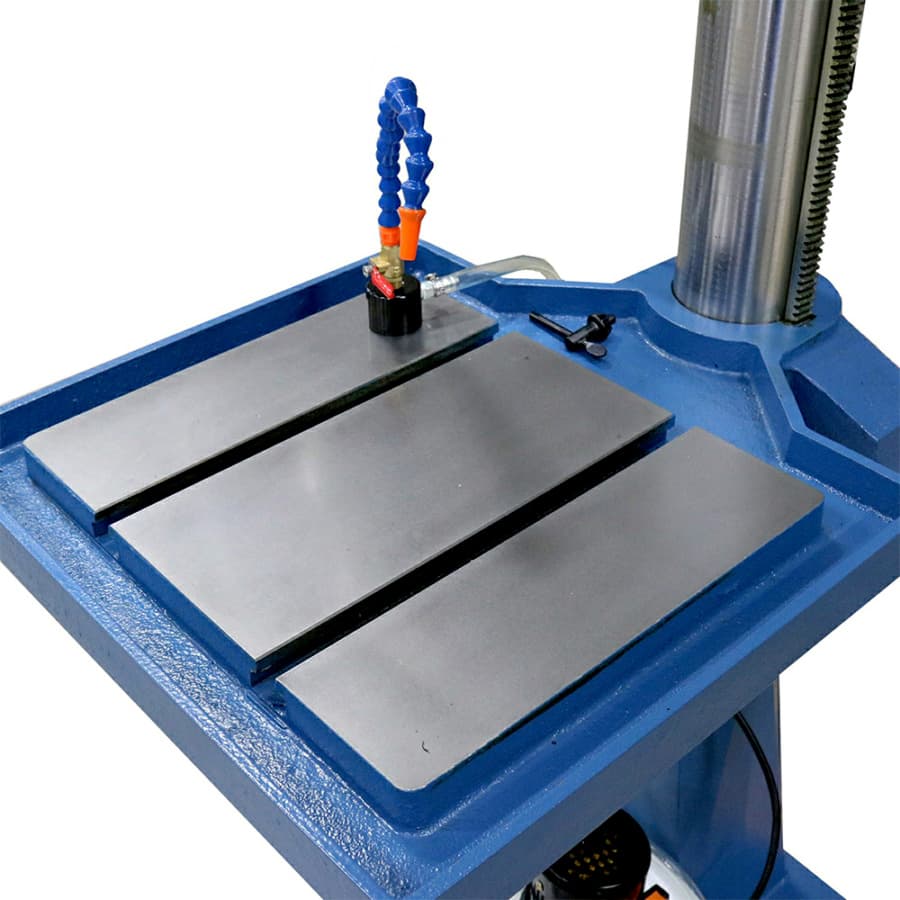

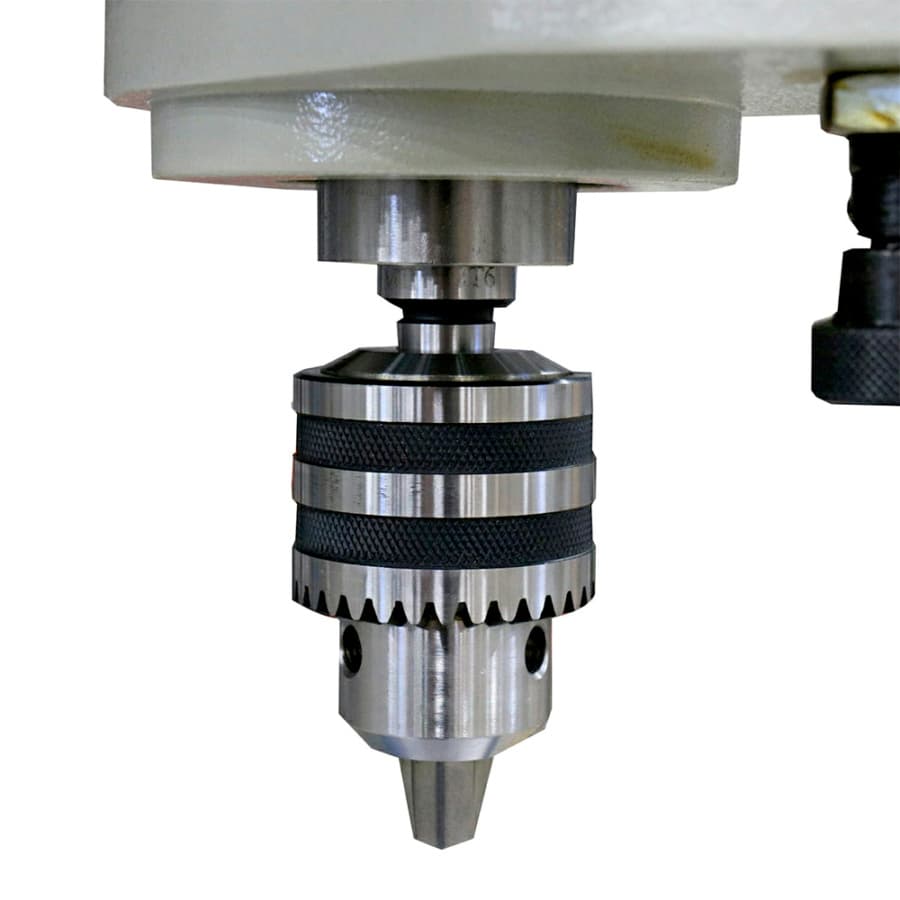

Built to last for years, the DP-1200VS floor drill press is an economical option for any shop. With a 22" swing, this variable-speed drill press will prove an ideal investment for any machinist or fabricator Features: • 2 hp motor runs on just 220 volts of single-phase power • Tackles a maximum drilling capacity of 1-1/16" mild steel • Heavy duty spindle transfers power to the #3 Morse taper tooling • Speed potentiometer dial controls powerful inverter-driven head • Variable drilling speed, ranging from 10 to 2250 rpm, lets you choose the right setting to suit your application • Digital readout displays actual spindle rpm, ensuring precise results time after time • Features an auto-reversing tap function with up to .1/2" capacity • Wide column provides extra support and rigidity to reduce flexing even during the toughest drilling sessions • Base and 16-3/4" x 19" table are made of a heavy iron casting to increase rigidity • Very large 0.625" T-slots let a vise or fixture securely hold your material • Movable coolant system, with magnetic fixture, sprays out where you need it to extend drill bit and tap lifespan
Specifications
| Box Quantity | 1 |
| Base Dimensions | |
| Number of Spindle Speeds | |
| Power Feed | |
| Product Type | Variable-Speed Drill Presses |
| Quill Diameter | 3" |
| Quill Feed | |
| Speed Range | |
| Spindle Distance to Table (Max.) | |
| Swing | 22" |
| Table Slots | 0.625" |
| Tapping Capacity Cast Iron | |
| Motor Voltage (V.) | 220V |
| Motor Power (HP) | |
| Base Size | 25-3/4" x 16-1/2" |
| Column Diameter | 4.52" |
| Coolant Pump Motor | |
| Distance Base to Spindle (Min.) | |
| Drilling Capacity | 1.25" |
| Drilling Capacity Cast Iron | |
| Drilling Capacity Mild Steel | 1-1/16" |
| Max. Spindle Speed | |
| Min. Spindle Speed | |
| Motor Phase | 1 |
| Tapping Capacity Mild Steel |
