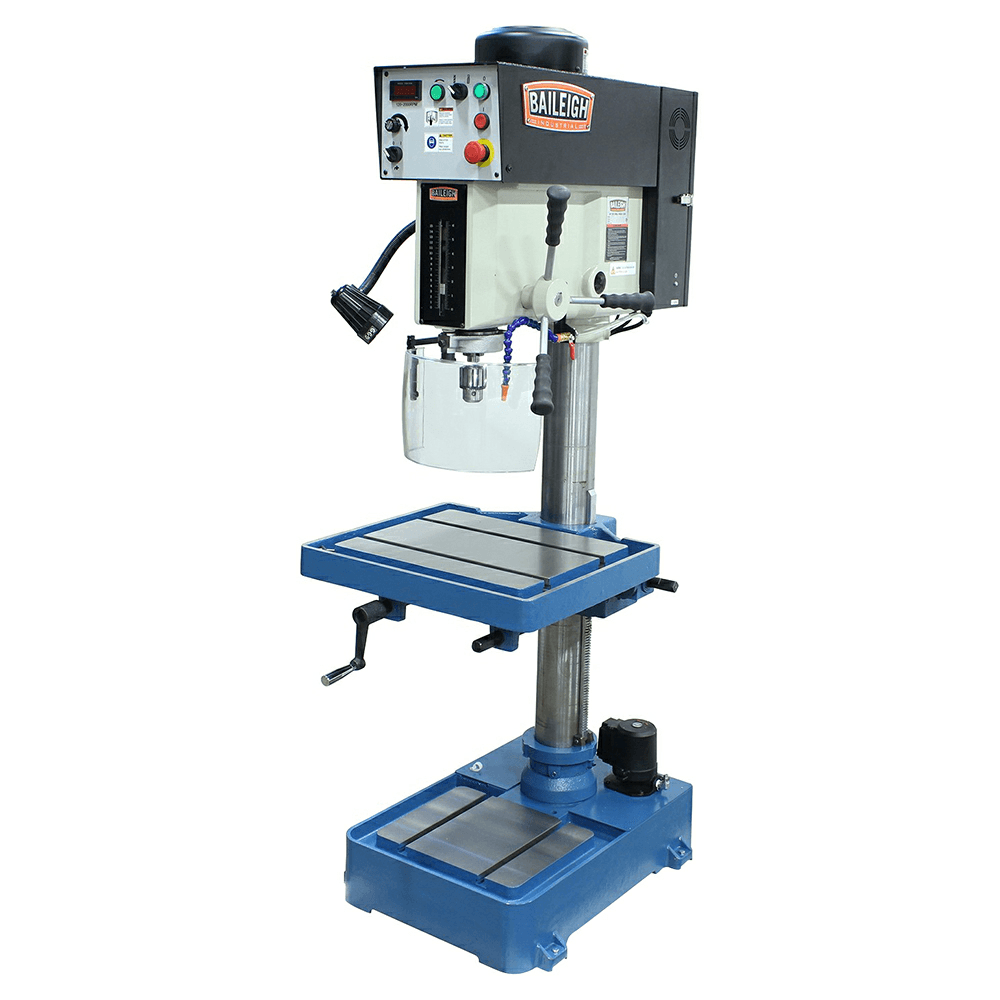

Baileigh DP-1375VS-110 1/8 HP Variable Speed Drill Press
This item may incur additional shipping costs and lead times.
Product Details

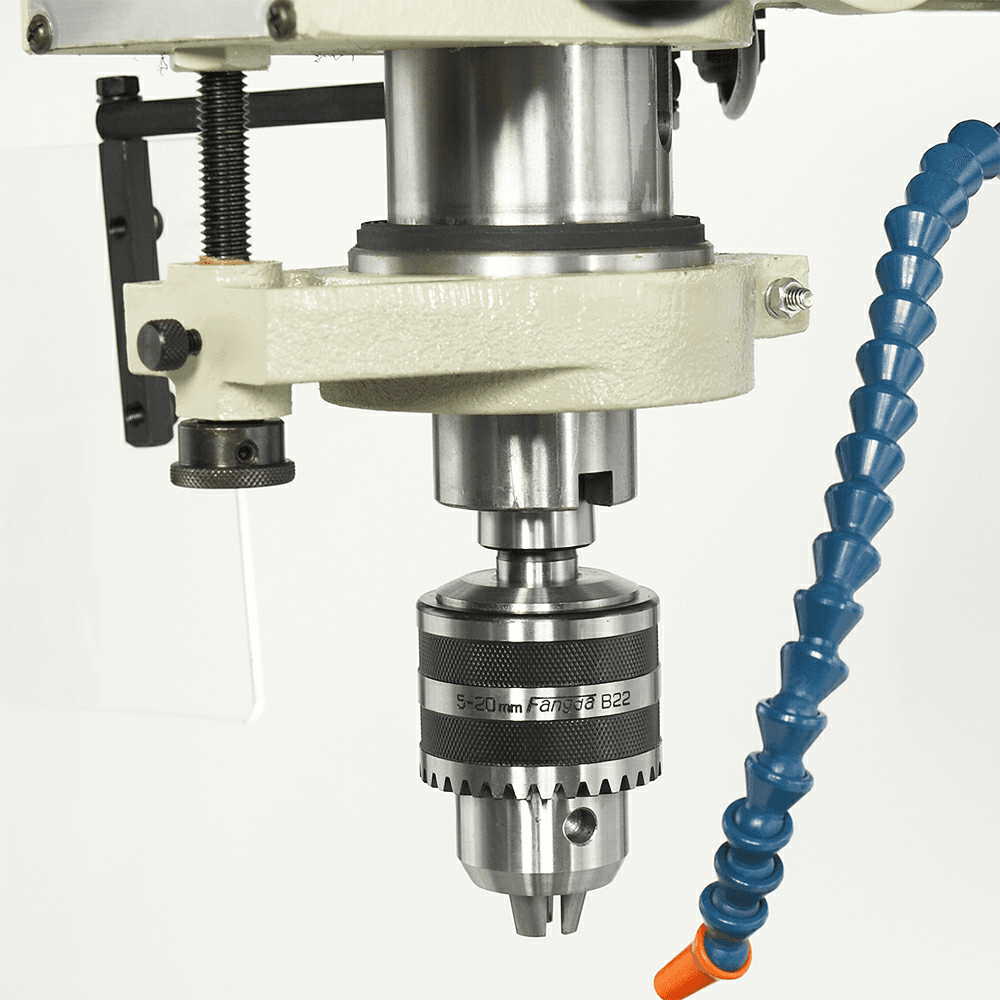

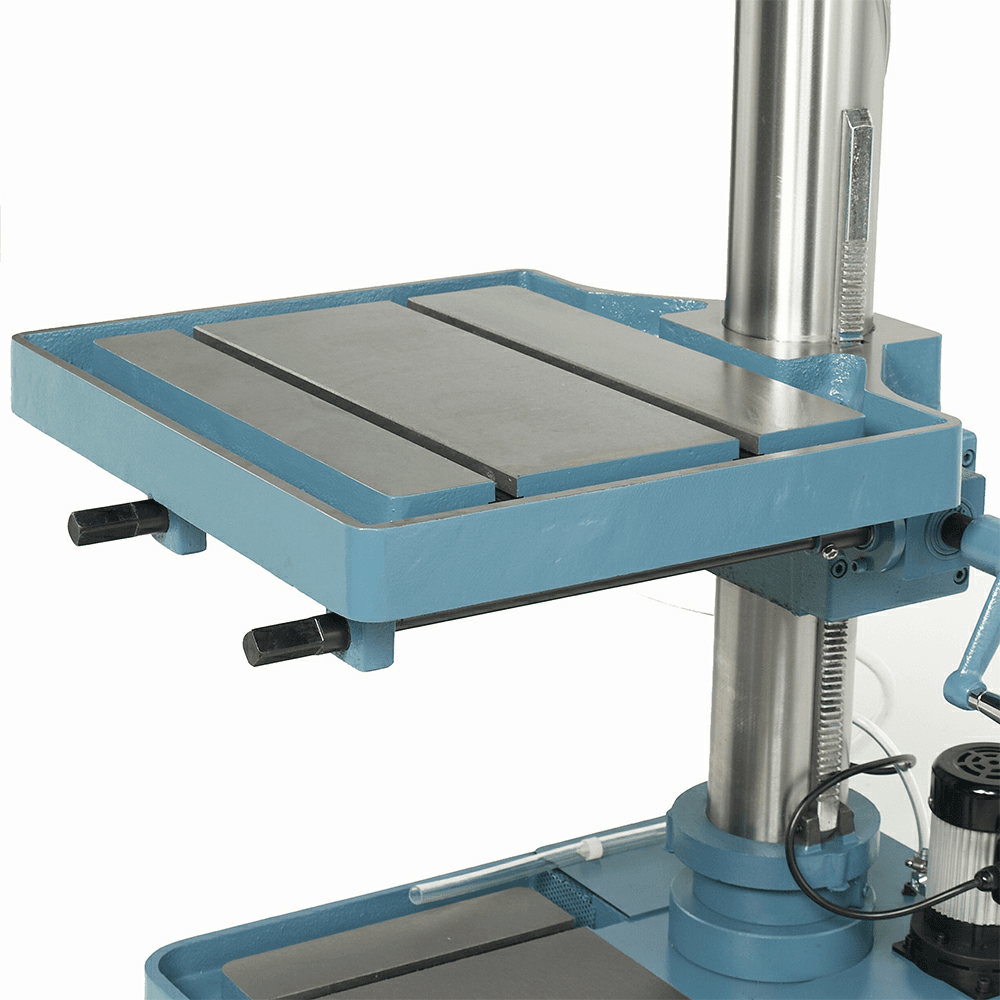

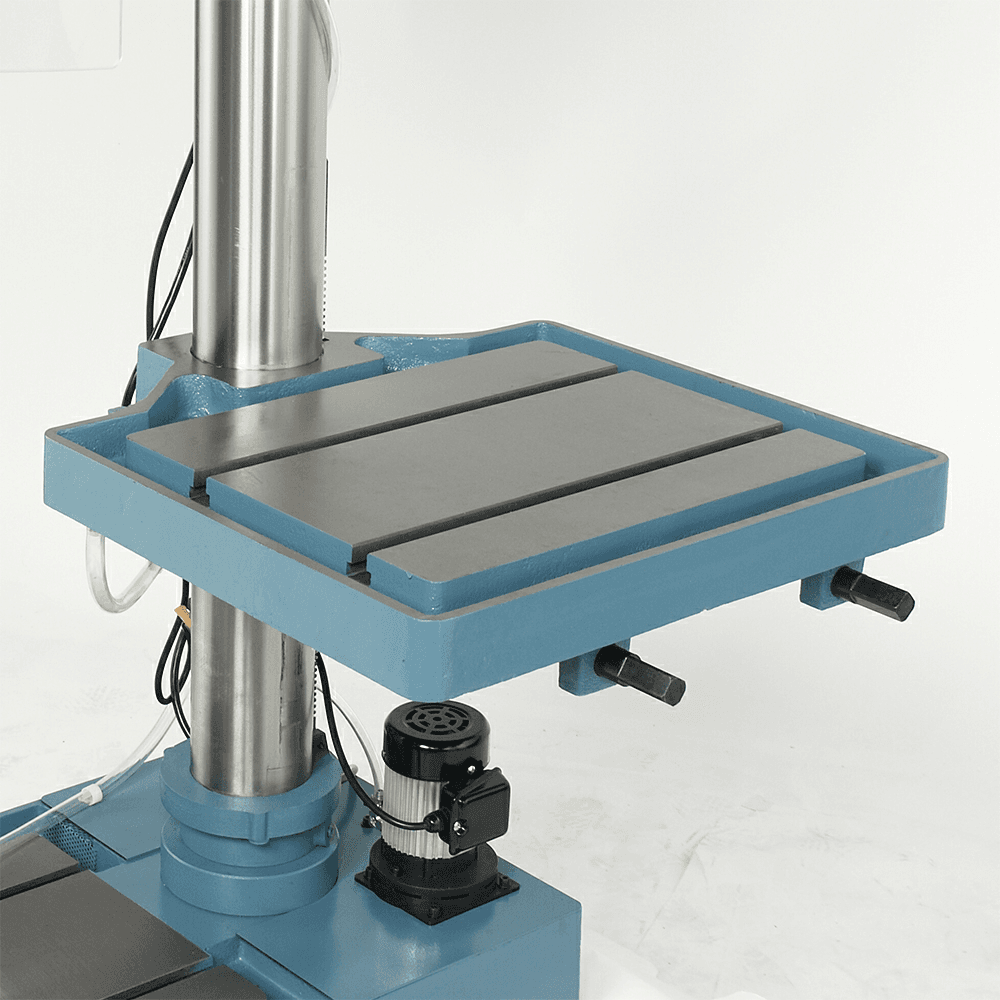

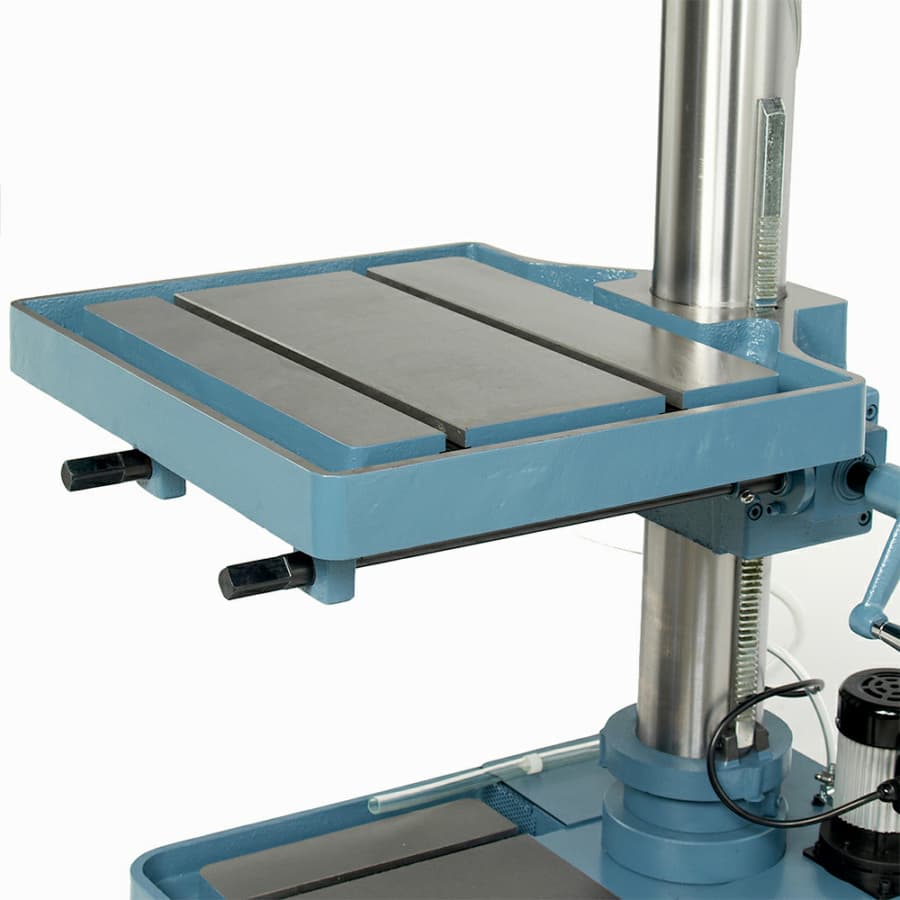

Sometimes you just need a high quality metalwroking drill press in am area that doeesnt have easy access to 220V power. That’s where the Baileigh DP-1375VS-110 comes in. Like all of our drill presses, the DP-1375VS-110 is built to last for years because it draws strength from its sturdy base and column that won€™t flinch during the heaviest drilling sessions. With a 22" swing, this variable-speed drill press will prove an ideal investment for any machinist or fabricator Features: • 2 hp motor runs on just 110 volt power • Tackles a maximum drilling capacity of 1.1/16" mild steel • Heavy duty spindle transfers power to the #3 Morse taper tooling • Speed potentiometer dial controls powerful inverter-driven head • Variable drilling speed, ranging from 120 to 2000 rpm, lets you choose the right setting to suit your application • Digital readout displays actual spindle rpm, ensuring precise results time after time • Features an auto-reversing tap function with up to 5/8" capacity • 4-1/2" Wide column provides extra support and rigidity to reduce flexing even during the toughest drilling sessions • Base and 22 x 18.5" table are made of a heavy iron casting to increase rigidity • Very large .625" T-slots let a vise or fixture securely hold your material • Coolant system, stored in the base, sprays out at the end of the spindle behind the splash and safety guard to extend drill bit and tap lifespan
Specifications
| Box Quantity | 1 |
| Base Dimensions | |
| Number of Spindle Speeds | Inverter Driven Variable |
| Power Feed | |
| Product Type | Variable-Speed Drill Presses |
| Quill Diameter | |
| Quill Feed | |
| Speed Range | |
| Spindle Distance to Table (Max.) | |
| Swing | 22" |
| Table Slots | 0.625" |
| Tapping Capacity Cast Iron | |
| Motor Voltage (V.) | 110V |
| Motor Power (HP) | |
| Base Size | 27" x 19" |
| Column Diameter | 4.52" |

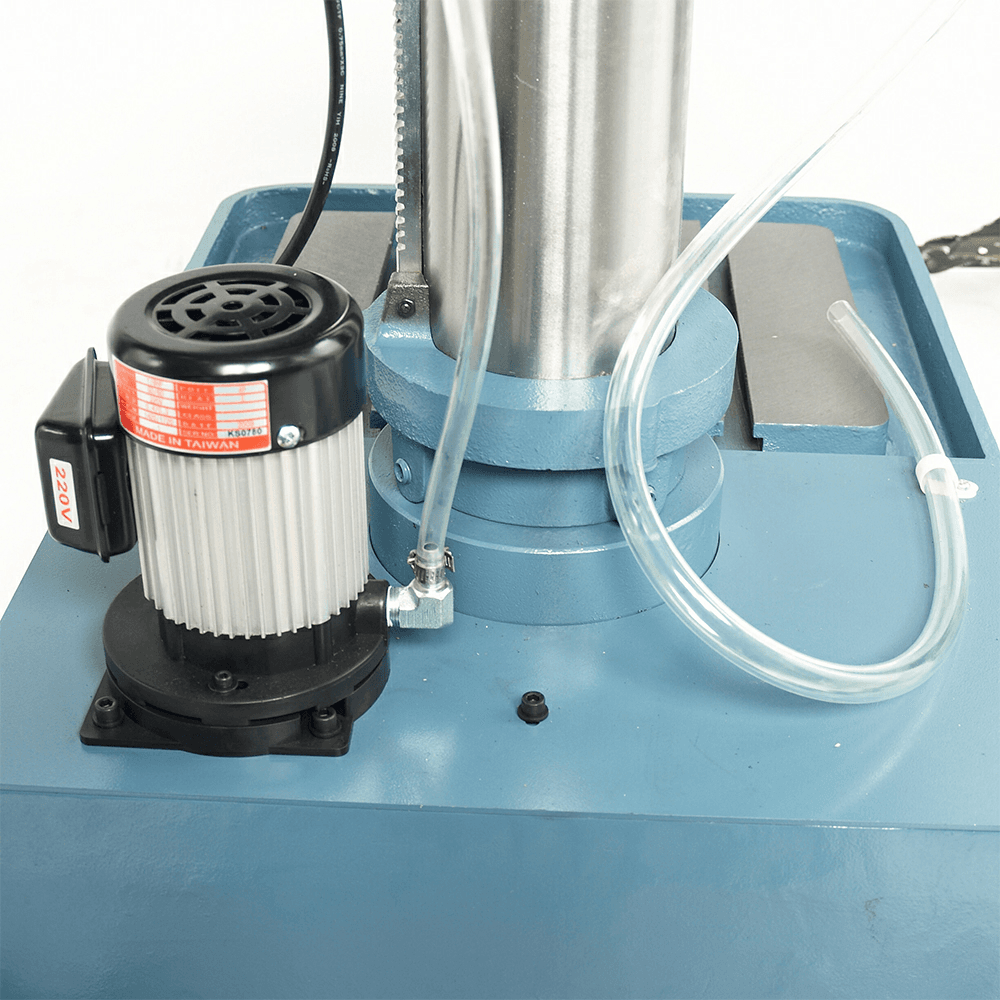

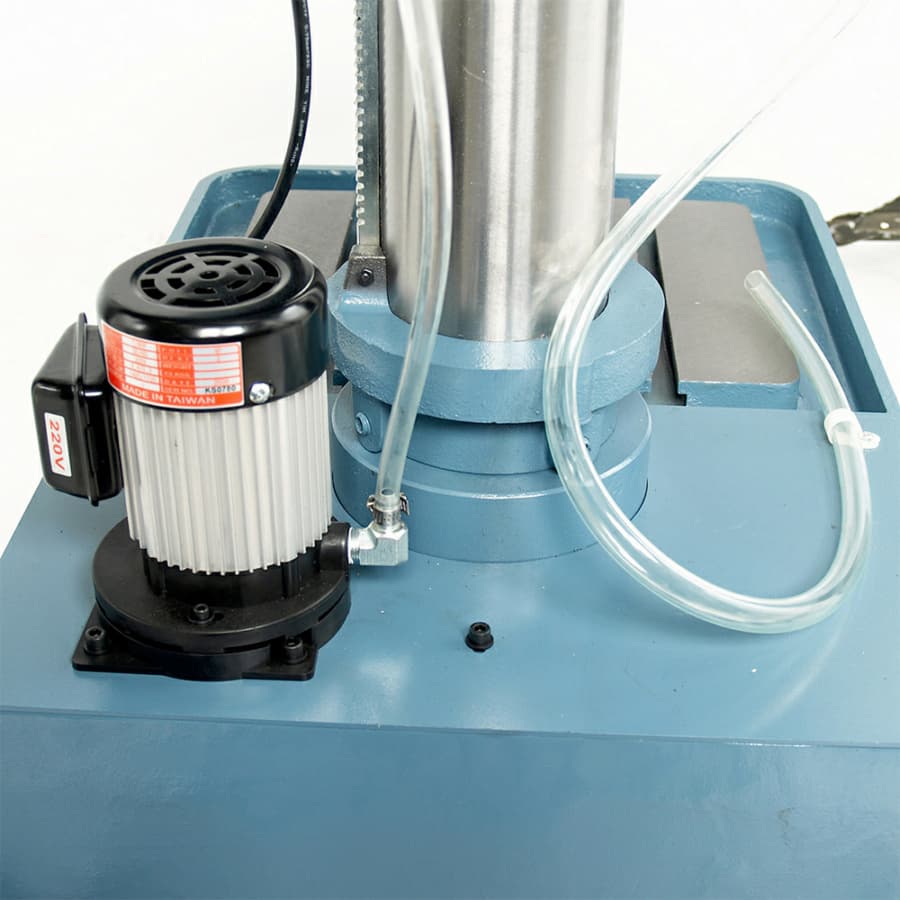

| Coolant Pump Motor | 1/8 hp |
| Distance Base to Spindle (Min.) | |
| Drilling Capacity | 1.25 |
| Drilling Capacity Cast Iron | 1-1/16" |
| Drilling Capacity Mild Steel | 1-1/4" |
| Max. Spindle Speed | |
| Min. Spindle Speed | |
| Motor Phase | |
| Tapping Capacity Mild Steel |
