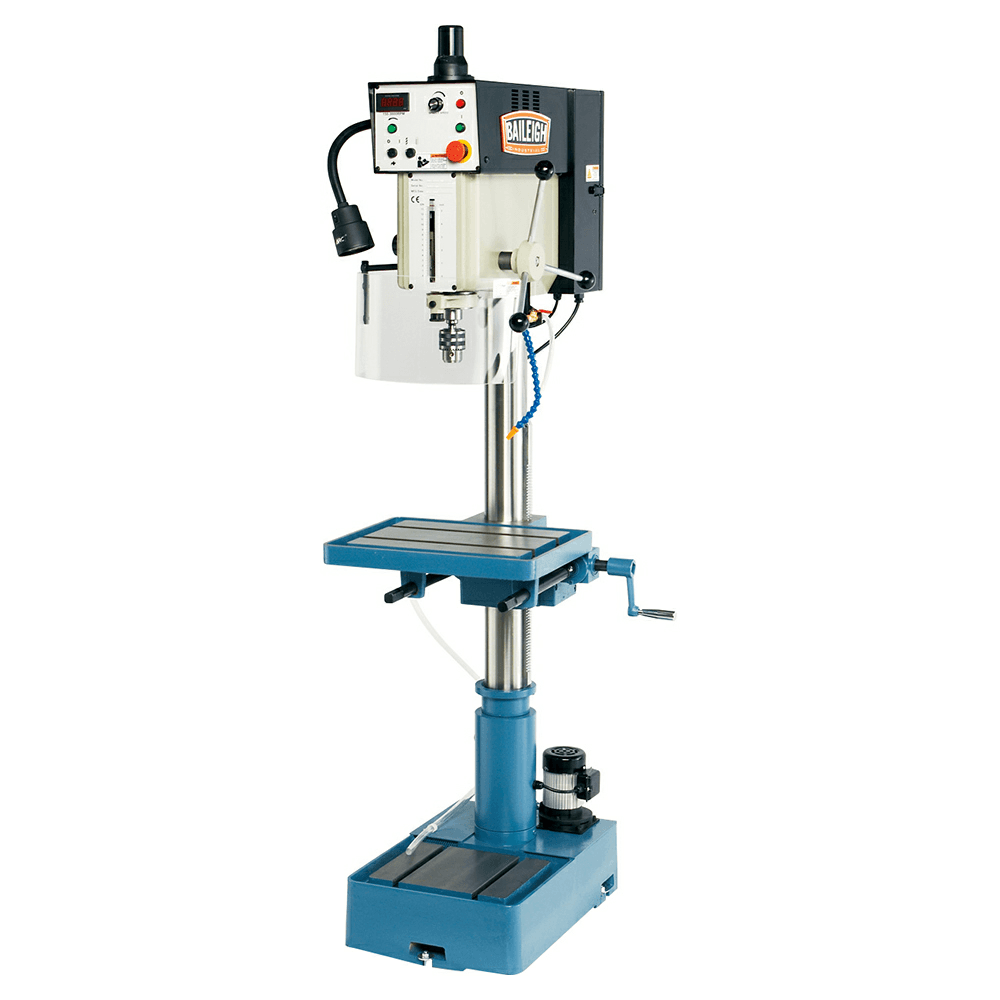

Baileigh DP-1000VS Variable Speed Drill Press
This item may incur additional shipping costs and lead times.
Product Details

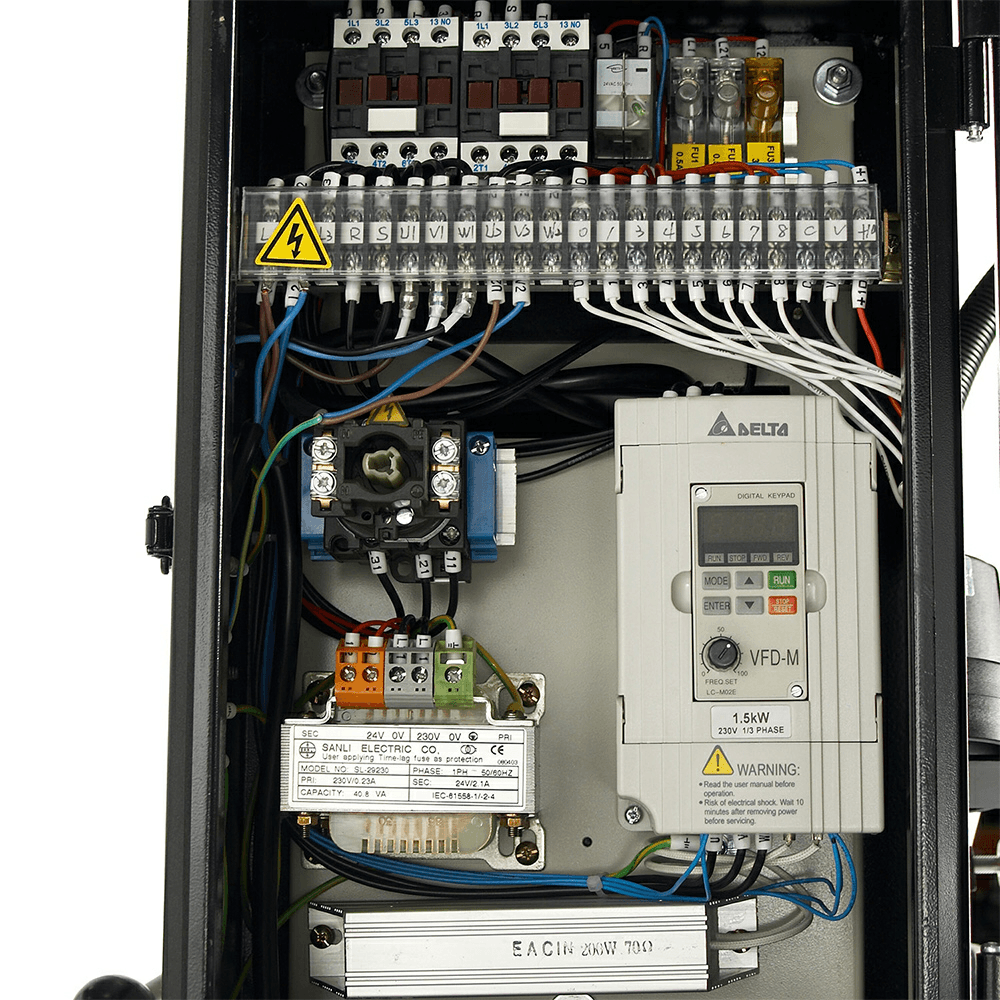

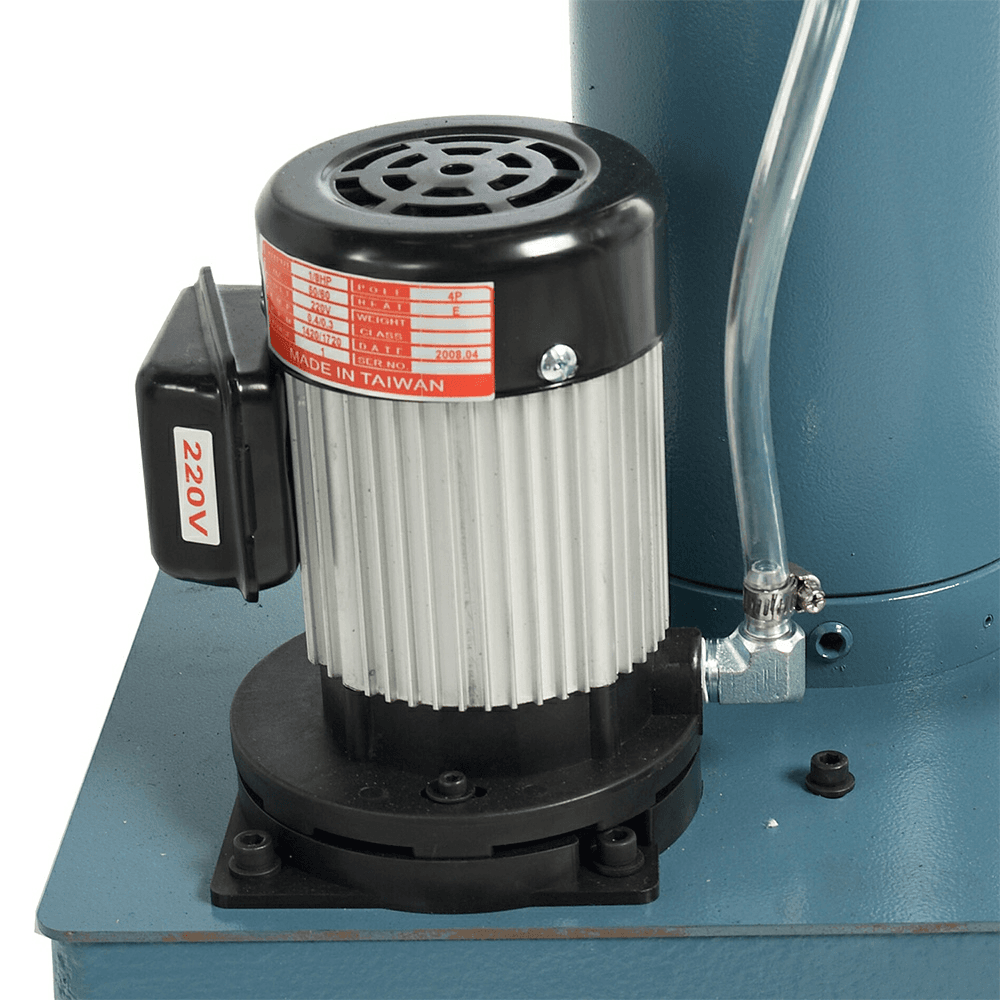

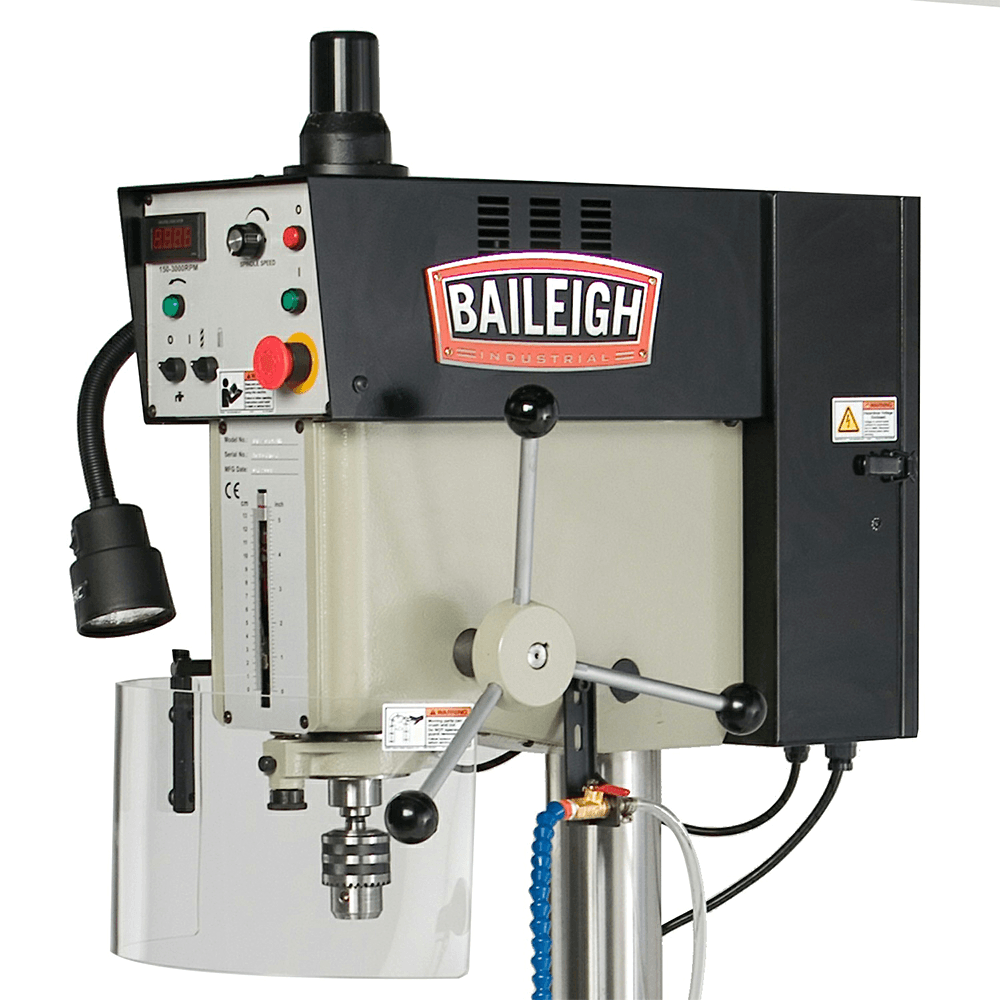

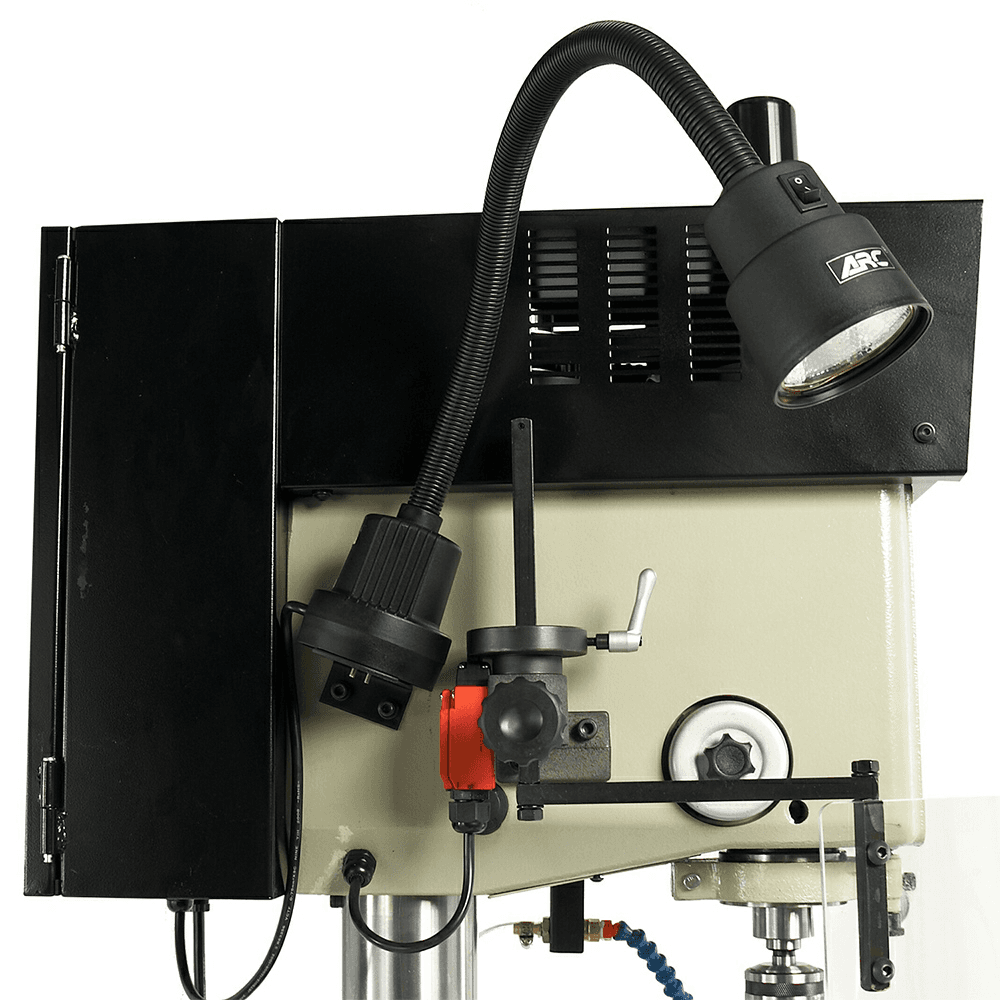

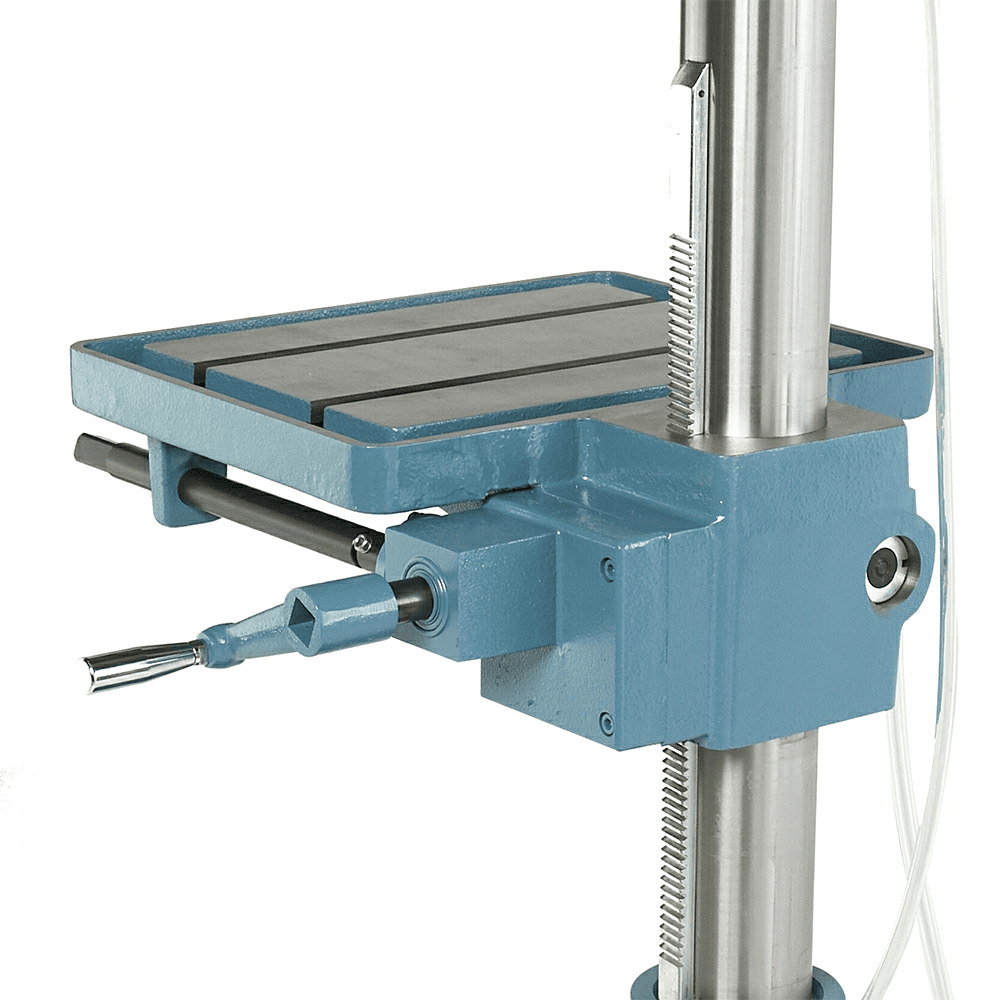

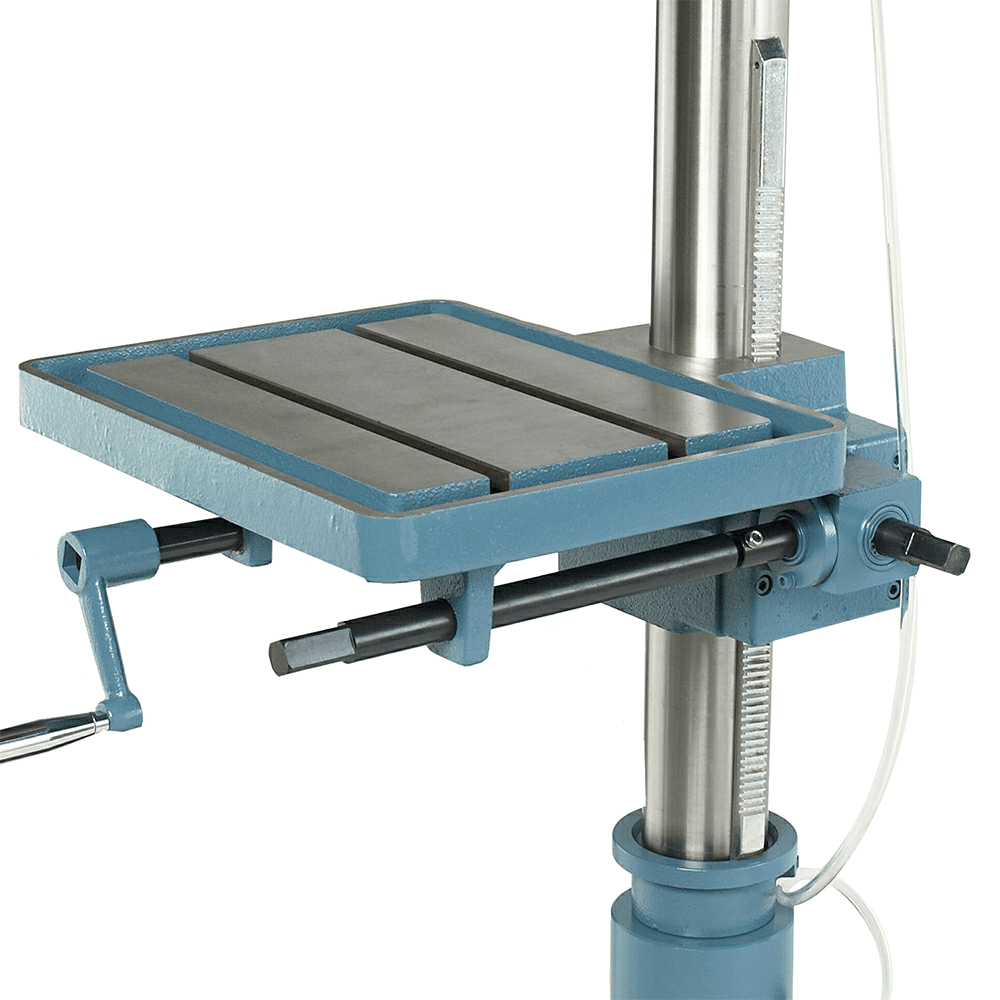

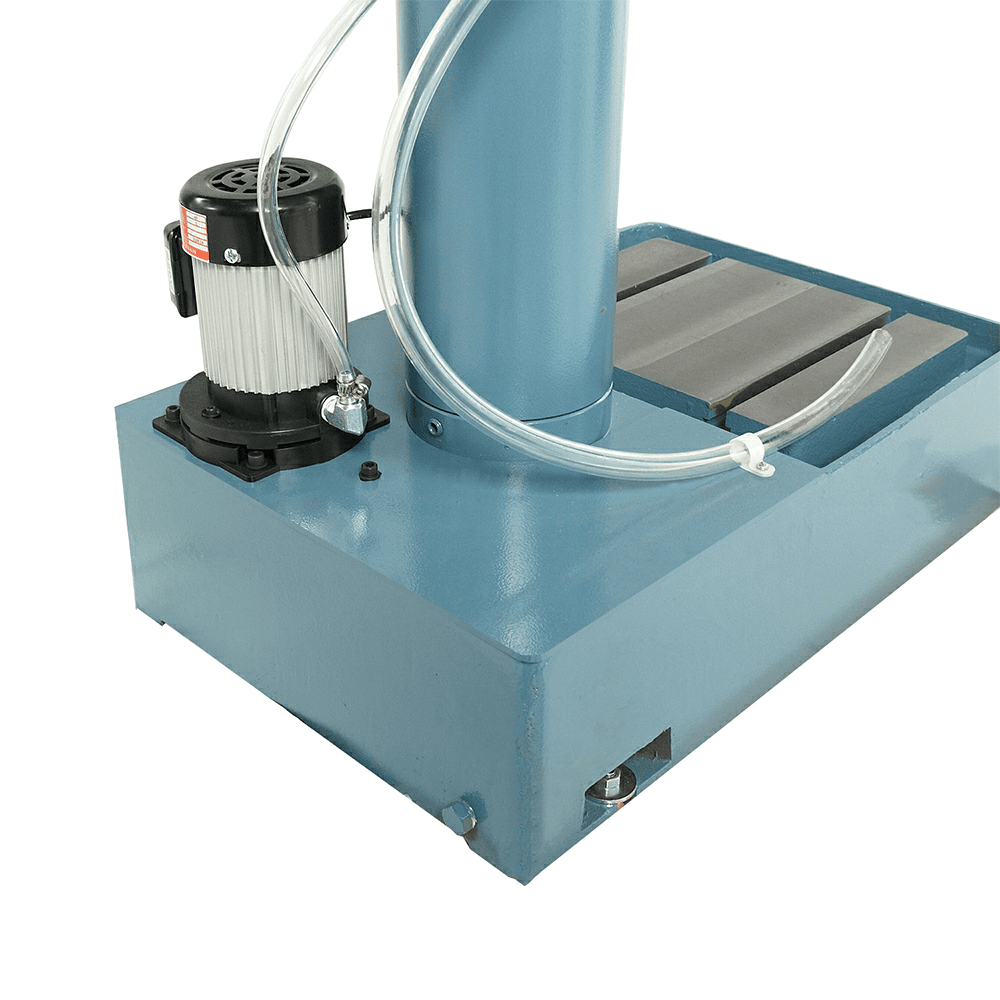

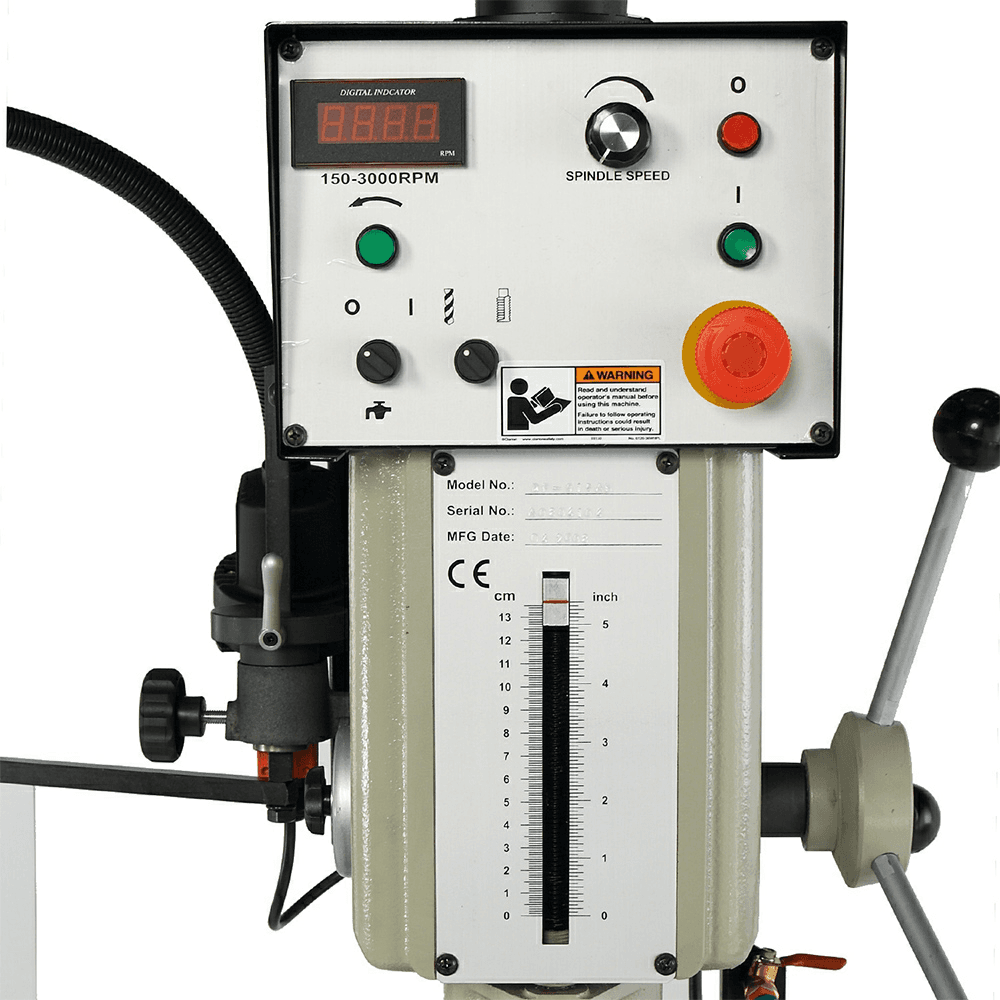

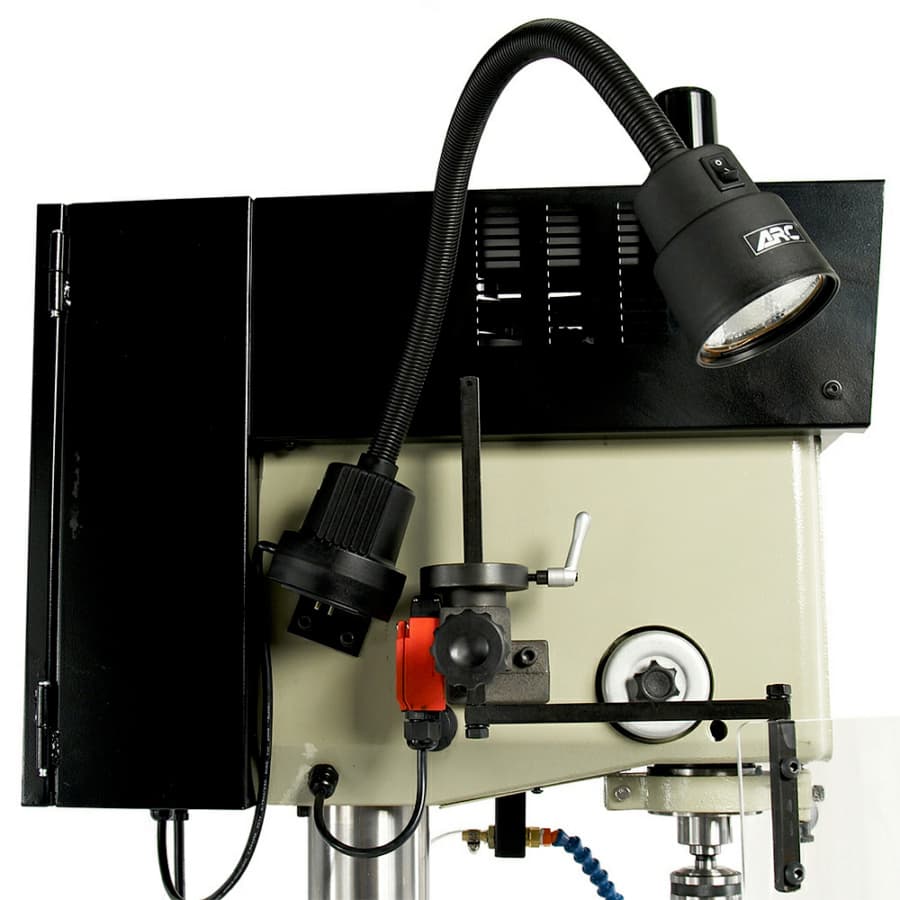

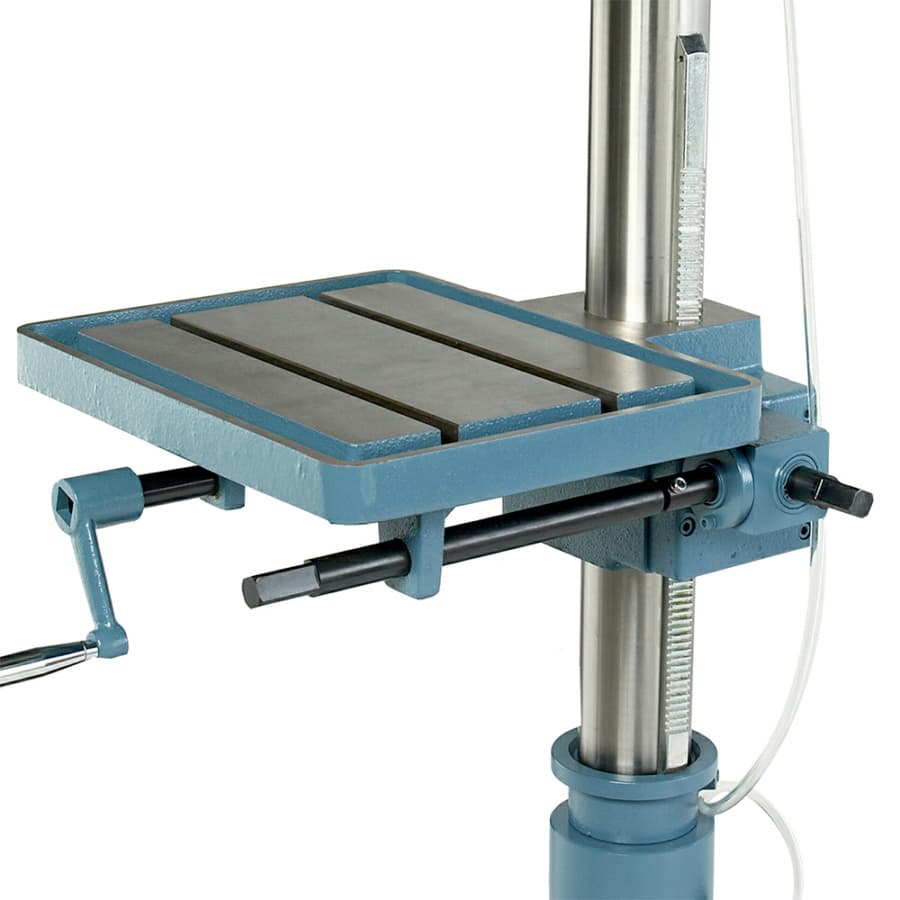

This variable-speed drill press runs smoothly even at full capacity-and will do so for years at your shop. Unlike pulley-driven drills, this 16" drill press lets you run tooling at the proper speed to fit your application and extend tooling life Features: • 2 hp motor requires 220-volt single-phase power and will work at virtually any shop or site • Inverter-driven head drills a maximum capacity of 1" steel • You can fine-tune the speed in the range from 150 to 3000 rpm to suit your application • Auto-reversing tap has a tapping capacity of 5/8" steel • Wide steel column eliminates flexing even when drilling at full capacity • Rigid cast iron base and table add strength to the drill’s structure • Comes standard with a coolant system, a feature that some competing companies consider an upgrade • Includes a safety shield around the drill head to protect you, as well as a halogen light that bends to help you see the project better
Specifications
| Box Quantity | 1 |
| Base Dimensions | 27" x 19" |
| Number of Spindle Speeds | |
| Power Feed | |
| Product Type | Variable-Speed Drill Presses |
| Quill Diameter | 2.44" |
| Quill Feed | |
| Speed Range | |
| Spindle Distance to Table (Max.) | |
| Swing | |
| Table Slots | 0.625" |
| Tapping Capacity Cast Iron | 3/4" |
| Motor Voltage (V.) | 220V |
| Motor Power (HP) | 2 HP |
| Base Size | |
| Column Diameter | 3.62" |
| Coolant Pump Motor | |
| Distance Base to Spindle (Min.) | |
| Drilling Capacity | |
| Drilling Capacity Cast Iron | 1.25" |
| Drilling Capacity Mild Steel | 1" |
| Max. Spindle Speed | |
| Min. Spindle Speed | |
| Motor Phase | 1 |
| Tapping Capacity Mild Steel |
