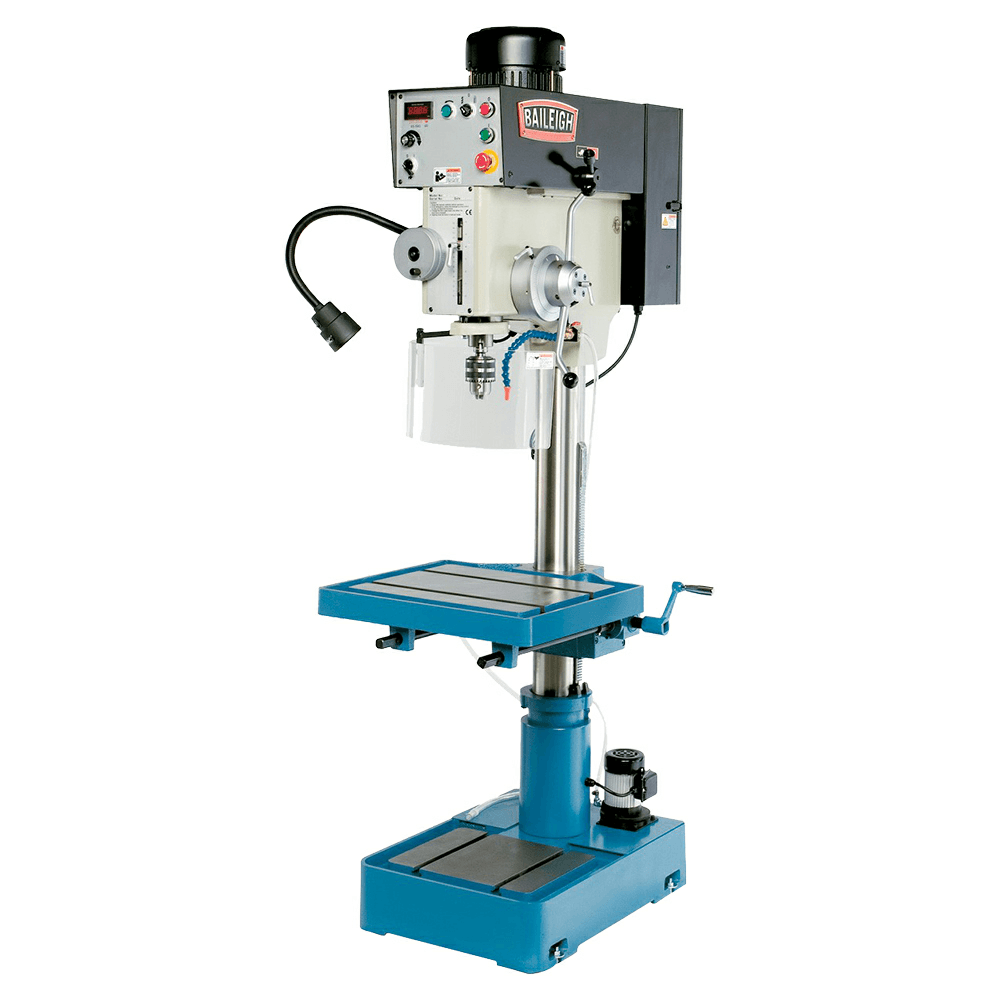

Baileigh DP-1500VS 2 HP Variable Speed Drill Press
This item may incur additional shipping costs and lead times.
Product Details
Drill smarter and harder with this 20" floor-type drill press which tackles hefty capacities at up to 2000 rpm. Built to deliver precise results for years, the DP-1500VS comes equipped with a variety of time-saving and performance-enhancing features Features: • 2 hp motor runs on 220-volt single-phase power and handles a maximum drilling capacity of 1.5" steel and 1.75" cast iron • Auto-reversing tapping feature has a capacity of 0.937" with a speed range from 65 to 2000 rpm • Potentiometer dial controls the drill speed and the digital readout on the front displays the speed in rpm for easy checking • Sophisticated Delta inverter drives #4 Morse taper spindle • Chuck with automatic tool ejector simplifies tooling changes • Large, machined 22" x 18.5" drill table offers plenty of room for material while the oversized .625" T-slots allow for secure clamping of a vise or fixture • Sturdy 4.52" column eliminates flex and boosts drilling accuracy while the cast base supports rigidity at maximum capacity • Power-down feed helps to prolong the machine’s lifetime of use while the safety guard around the spindle with a limit switch protects you and your shop • Powerful coolant system, housed in the base, keeps the drill from overheating and helps the drill last longer • Includes a bright halogen light that bends to enable you to see the material better as you work
Specifications
| Box Quantity | 1 |
| Base Dimensions | 27" x 19" |
| Number of Spindle Speeds | |
| Power Feed | |
| Product Type | Variable-Speed Drill Presses |
| Quill Diameter | 2.95" |
| Quill Feed | 0.0078", 0.004", 0.002" per rev |
| Speed Range | |
| Spindle Distance to Table (Max.) | |
| Swing | |
| Table Slots | 0.625" |
| Tapping Capacity Cast Iron | |
| Motor Voltage (V.) | 230V |
| Motor Power (HP) | |
| Base Size | |
| Column Diameter | 4.52" |
| Coolant Pump Motor | |
| Distance Base to Spindle (Min.) | |
| Drilling Capacity | |
| Drilling Capacity Cast Iron | 1.75" |
| Drilling Capacity Mild Steel | 1.5" |
| Max. Spindle Speed | 245 - 2000 RPM |
| Min. Spindle Speed | 65 - 540 RPM |
| Motor Phase | 1 |
| Tapping Capacity Mild Steel |
