Baileigh BP-17913 CNC 1/2 HP Hydraulic Press Brake, 3 Phase/220V
Item # JPWBA9-1000789
•Mfr # BA9-1000789
$88,439.00
/Each
Min Order: 1
Qty mult. by: 1
Product Details

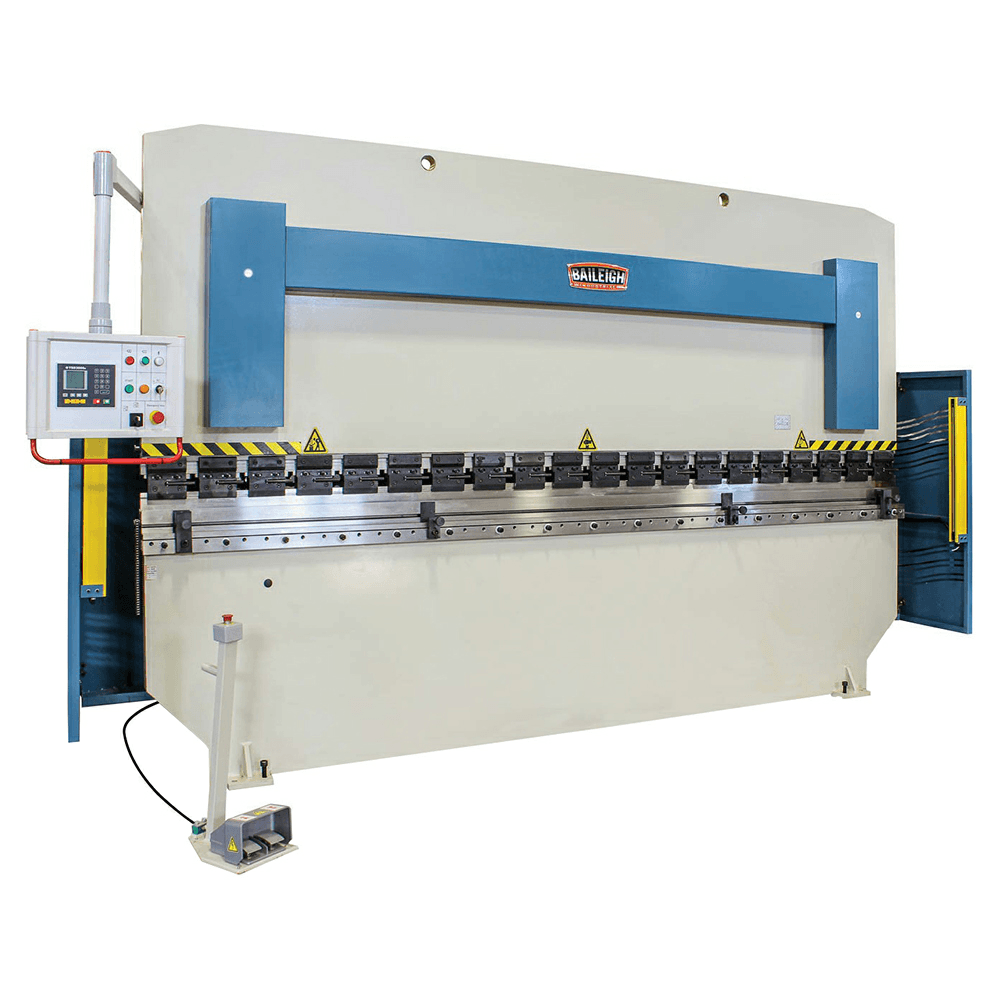

This large press brake lets you slide 10-foot sheets between the housings. A rigid steel frame and hydraulic parts by Nachi® and Vickers/Eaton® keep the machine running reliably.

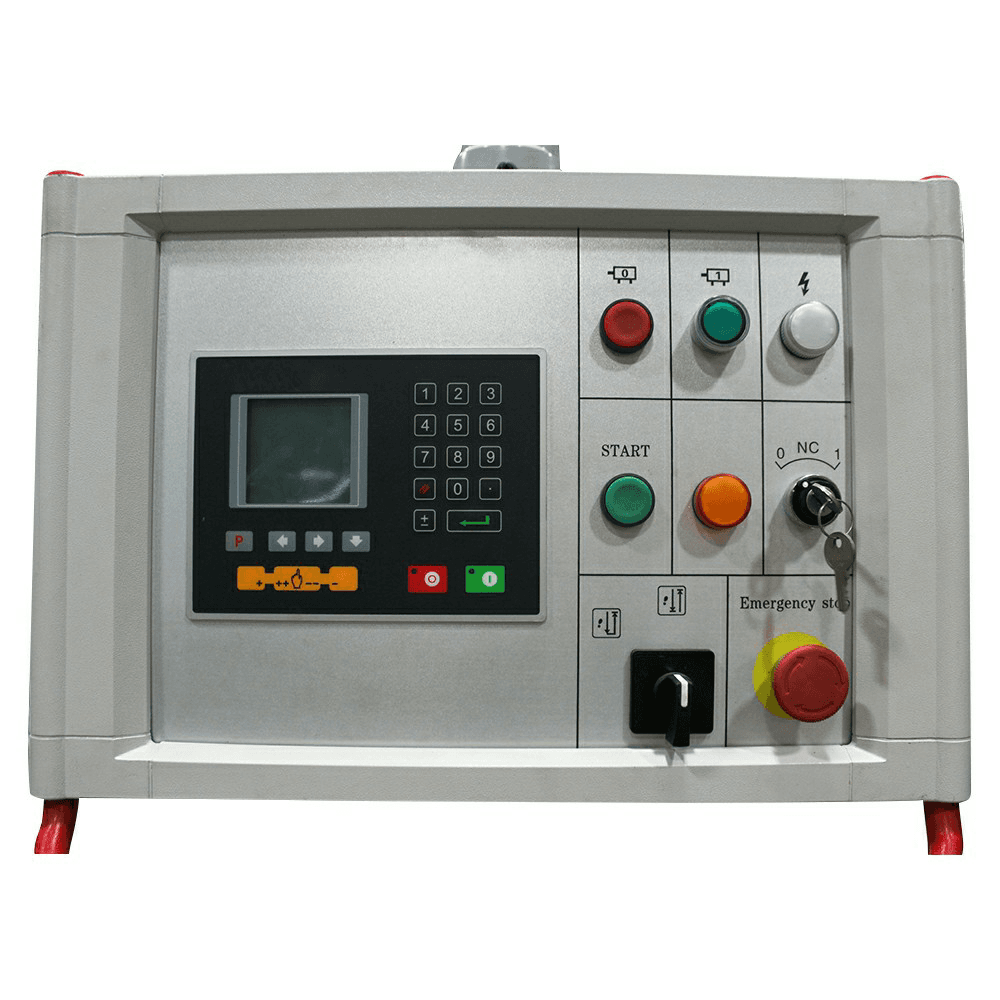

Accurate, User-Friendly Control System:

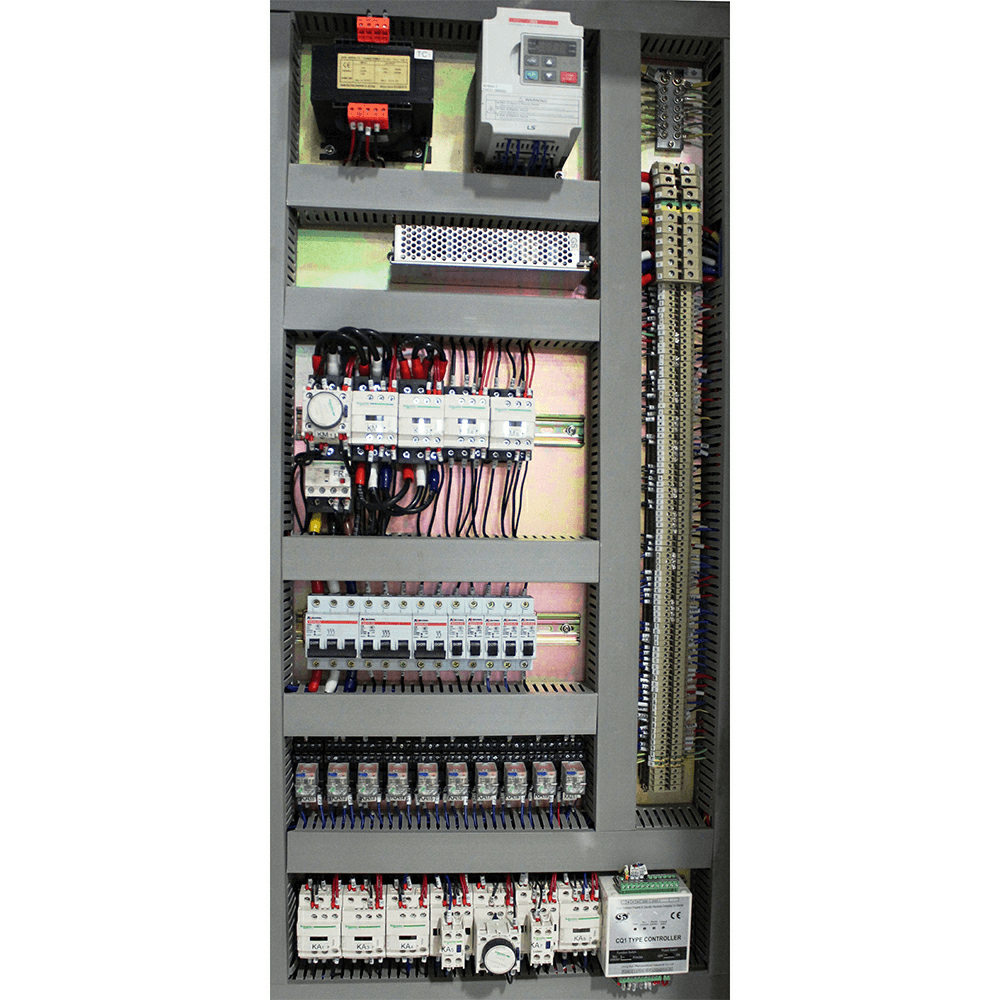

• Runs in single-bend mode or programmable mode • Comes standard with 2 axes of control: stroke and back gauge distance • Controller is so simple that you could train someone to use it in 5 minutes • Programmer stores up to 40 programs with up to 25 bends per program, great for saving time on production • Bending is accurate to +/- .01mm, ensuring that parts come out right the first time • Main electrical components made in Germany by Weidmueller and Schneider® will give you years of trouble-free productivity • Foot pedal brings the stroke up and down. Just input your specs on the controller, then press the pedal for each bend • You can make a complete part without touching the controller. Push the metal in while pressing the foot pedal • Choose between 2 speeds: a rapid approach and retract and a slow bending speed • Speed option lets you reduce cycle time and make your shop more efficient • Chain drive back gauge system uses tried-and-true technology that you can maintain easily • The 23.62" back gauge can advance or retract according to programmed instructionsSteel Plate Construction and Included Tooling:

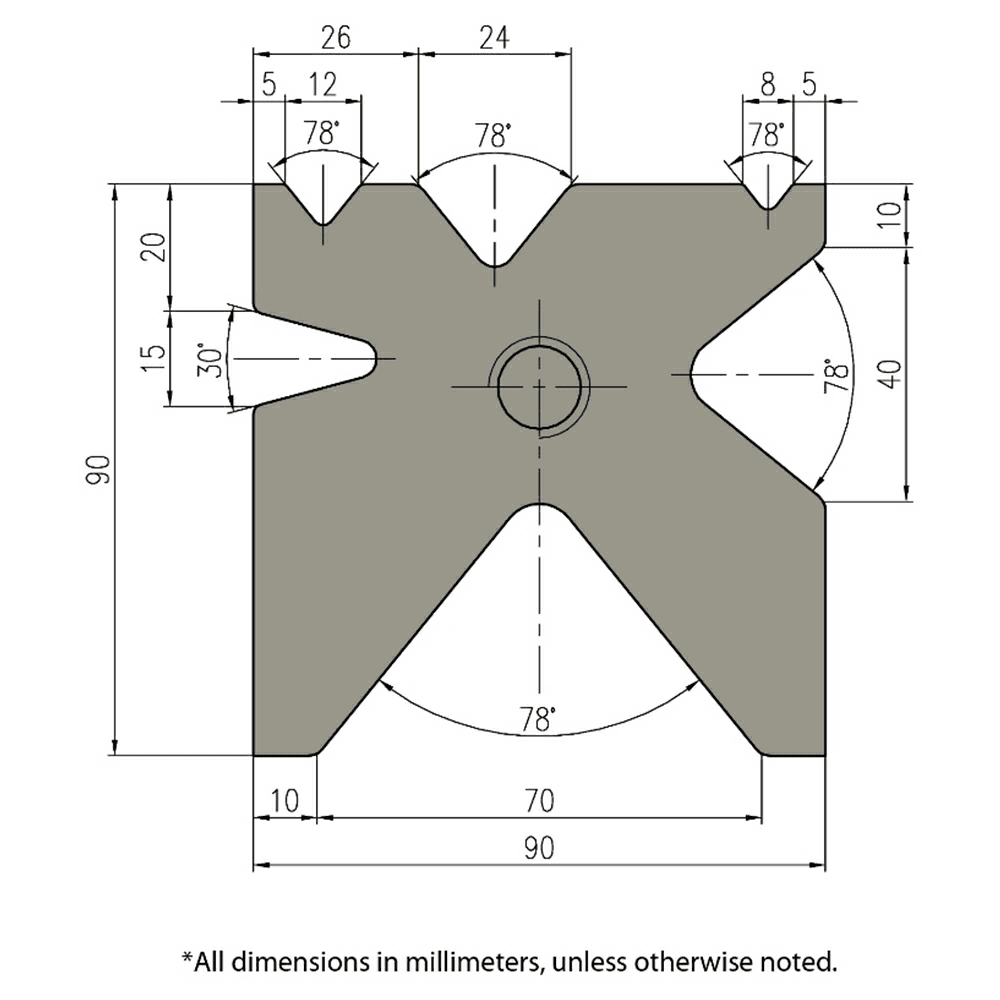

• Fully welded all-steel construction helps prevent deformation and minimize flex during the bending process • Weighs a whopping 24,640 lbs. for massive structural strength that ensures accurate results • Includes support arms around 2 feet in length • Comes standard with tooling: a multi-Vee bottom die and gooseneck punches (European Style) • Quick-release tool holders let you make changes easily. Just open a lever and it drops the top die out. No time-consuming cap screws • Crowning adjustment dial gives you the option to deliver more pressure in the center of a bend for consistency all the way across • CNKELI® safety light curtains prevent the machine from bending when someone is too close • Light curtains will swing open and get out of the way when you're doing a tool change. Features: • Delivers 179 tons of pressure • Offers 13-foot length (157") and 123" of distance between the housings • This press brake is also available in a 10-foot version • Runs on 220-volt 3-phase power • Industrial-grade hydraulic system with Vickers/Eaton® and Nachi® components will last for many years at peak capacity • Torque tube connects the 2 hydraulic cylinders, so they always stay synchronized and parallel to the bending table • Chain drive linkage keeps hydraulic cylinders in time with each other, so the machine stays balanced and lasts longer • Hydraulic cylinders are near the back of the machine for convenient fluid changesSpecifications
| Box Quantity | 1 |
| Approach Speed | 2.0" per sec |
| Miter Angle Range (Deg.) | |
| Motor (HP) | |
| Motor Amps | |
| Oil Reservoir Capacity (cc) | |
| Overall Length | |
| Product Type | Vertical Press Brakes |
| Punch Work Height | |
| Range of Speeds | |
| Rectangle at 45 Degrees | |
| Rectangle Capacity | |
| Short Description | *179 tons of pressure *13-foot length (157") *Controller stores 40 programs *Nachi® and Vickers/Eaton® hydraulic parts |
| Speed (rpm) | |
| Stroke Length | |
| Table Height | |
| Throat Depth | 12.5" |
| Minimum Return Speed (In./Sec) | |
| Maximum Pressure (PSI) | |
| Maximum Notch | |
| Approx. Pressure (Tons) | |
| Assembled Machine Dimensions (L x W x H) | 134" x 64" x 103" |
| Back Gauge Capacity | 23.62" |
| Back Gauge Motor (hp) | 1/2 HP |
| Bending Capacity Max Length And Thickness | |
| Bending Speed | .236" / sec |
| Configurable Base Item | |
| Digital Readout | |
| Distance Between Housings | 100/123 |
| Distance From Table To Ram | 17.7" |
| Distance Per Stroke - jpw_distance_per_stroke_in | 7" |
| Fixture Holes | |
| Horse Power (HP) | |
| Included Tooling | |
| Input Power | 220V / 3 Phase |
| Volts | 220V |
