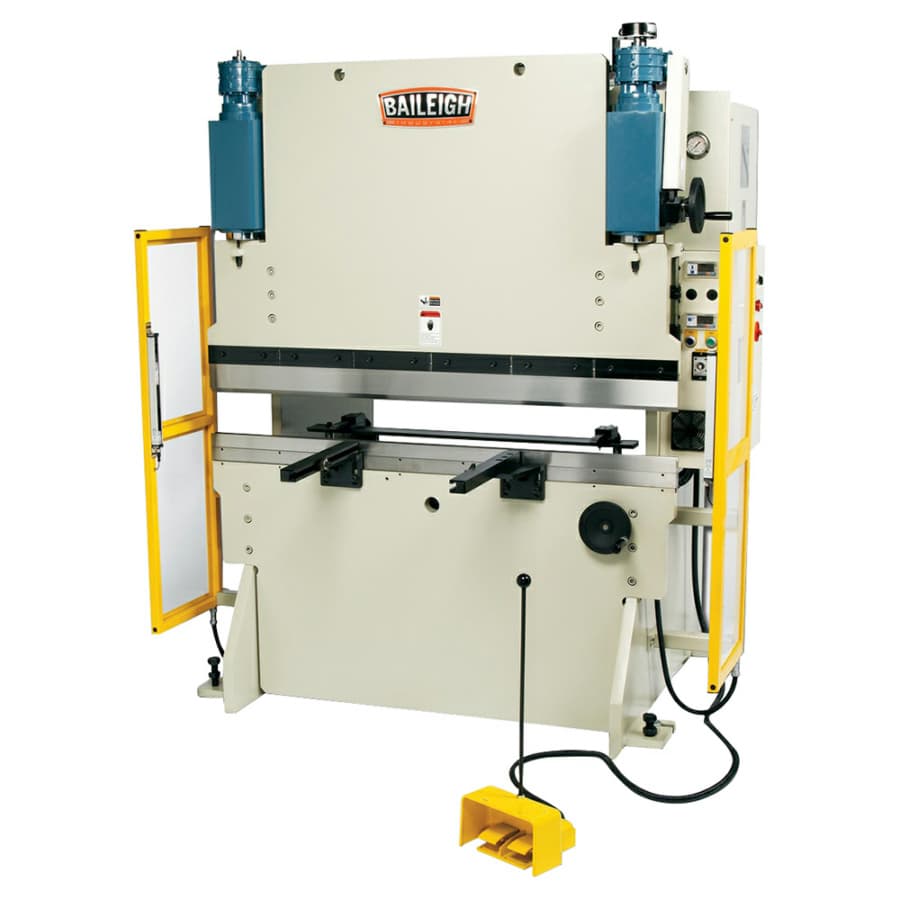

Baileigh BP-5060NC 1/2 HP Hydraulic Sheet Metal Press Brake, 3 Phase/220V

With its 6,000-pound steel frame, this hydraulic press brake makes crisp bends across its full 61" width. The stroke and back gauge are tied to encoders with DROs for precision.

Rigid Structure and Low Maintenance:

• Heavy electro welded frame, made of solid plate steel, keeps this press brake accurate and running smoothly in production for many years
• Upper beam rides on a hardened, stabilizing track, coupled together by 3 axes of bearings, to ensure high accuracy between both dies at any position of the stroke
• Includes a set of hardened single-Vee American tooling
• Accepts standard press brake tooling, giving you a wide variety of options
• Comes with front material rests (or support arms), which some competing machines do not include
• 6-light safety curtain helps protect you from injury. This guard stops the machine from running if your hand passes through the light beam
• 4 grease zerks let you add oil every few months
• Large hydraulic reservoir on the back allows for convenient fluid changes every 6 to 8 months

Fast Shipping and Lifetime Service

• Typically, in stock and usually ships in 72 hours
• Most replacement parts are in stock at our Wisconsin headquarters, so we can get them to you without delay
• Comes covered by a 1-year parts warranty

Features:

• Runs in 3 modes: jog mode for setup, manual mode for more control over descent and return, and automatic mode for full production
• 2 encoder-controlled hydraulic cylinders move the top beam
• Digital readout (DRO) displays the position of the downward stroke, so you can fine-tune a bend and make it right every time
• It takes a just few seconds to change the top beam pressure and the top position of the stroke (for more or less travel)
• You can set a timer for bend delay to hold the beam down at the bottom of the stroke, so the bend keeps its shape
• 2 hand wheels let you adjust the position of the beam and back gauge for consistency across the entire width of the beam
• Foot pedal brings the stroke up and down, leaving your hands free to position the material
• Motorized back gauge rides on a solid ball screw trolley mechanism
• Back gauge encoder shows its position on its own DRO
• Parallel mechanism on the beam synchronizes the top and bottom die to deliver better quality bends across the entire width of the machine
