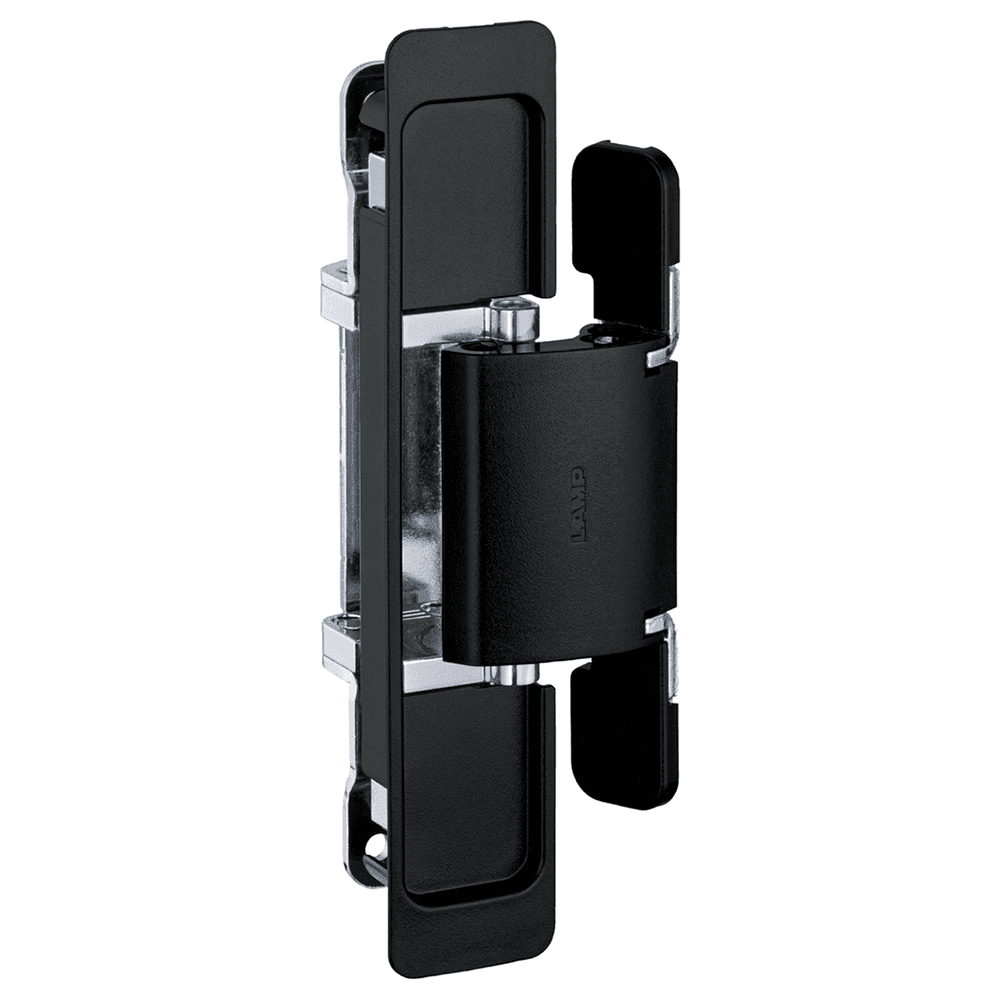

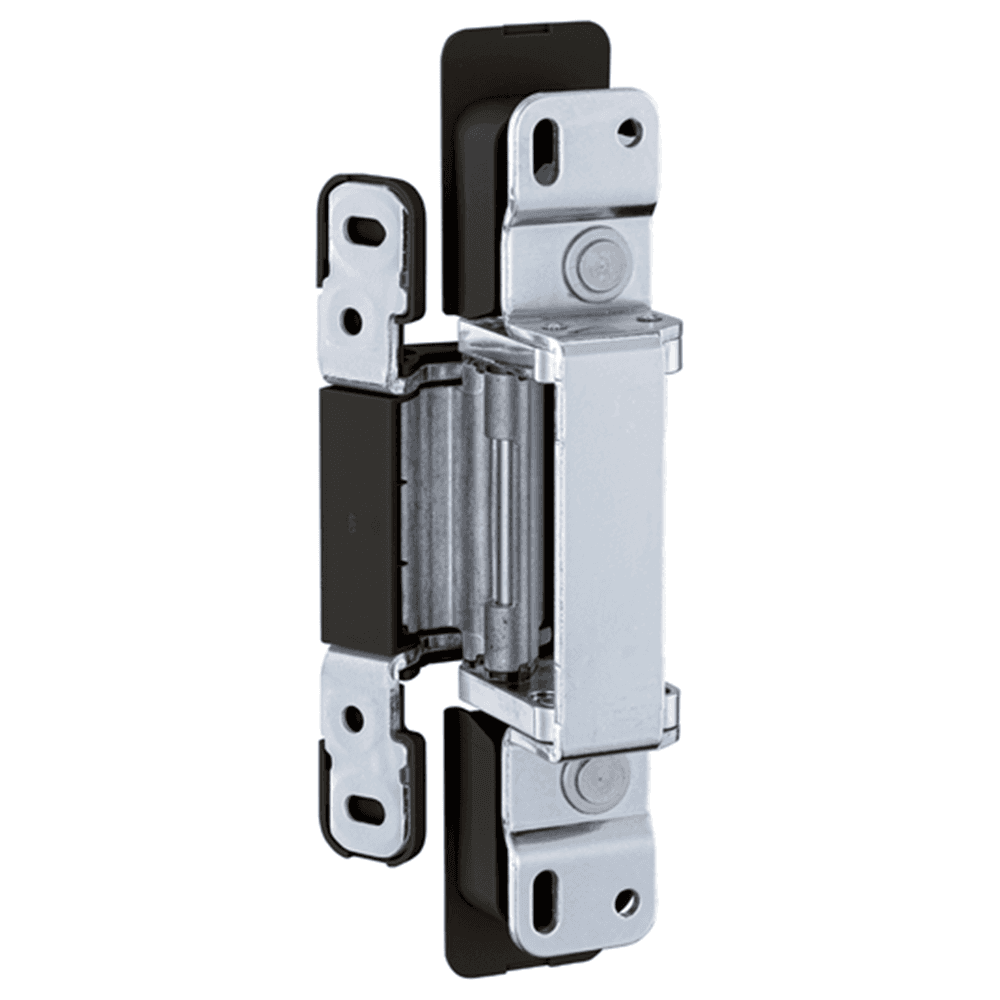

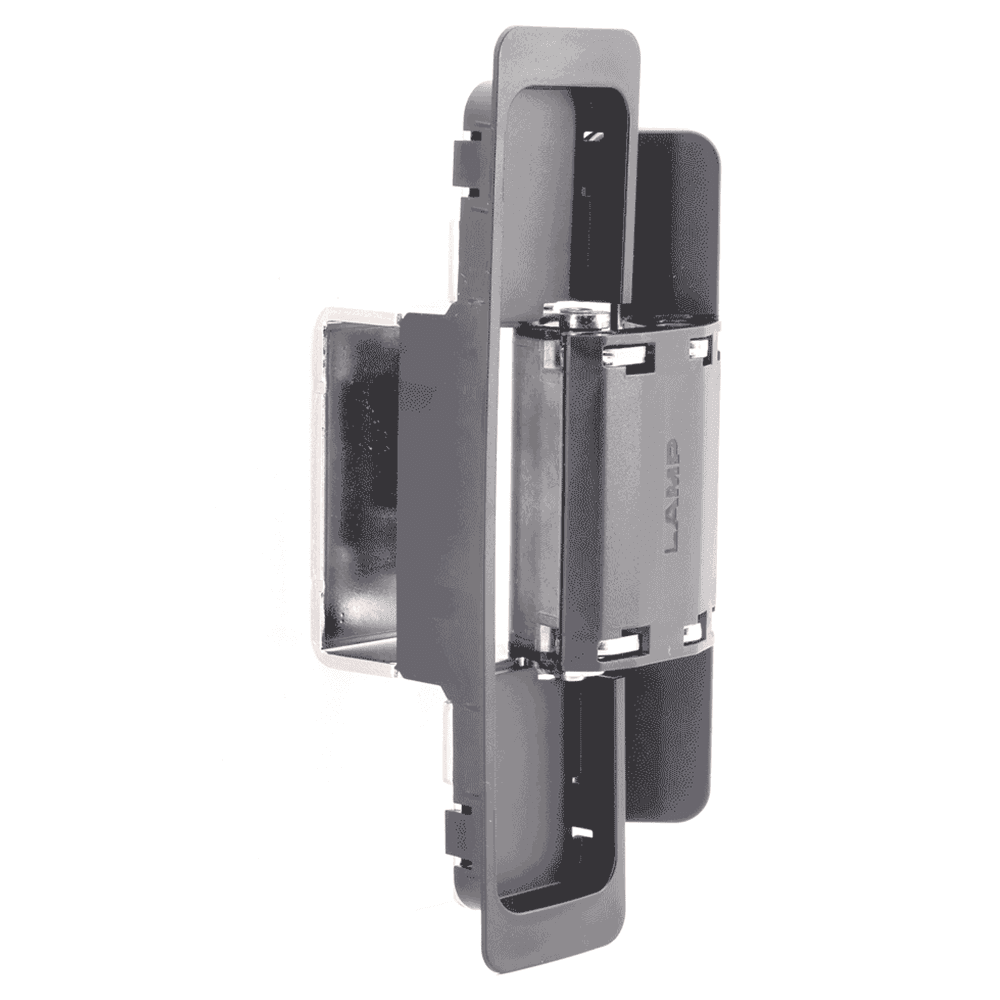

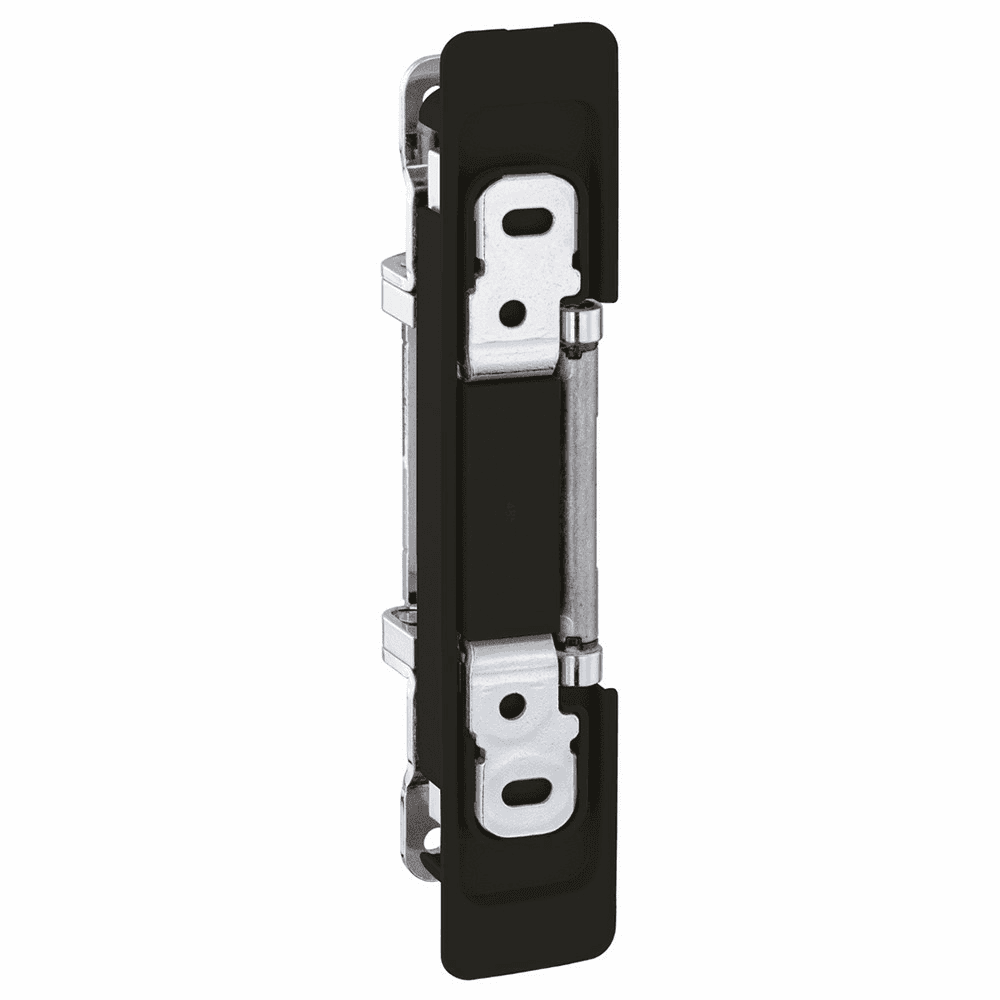

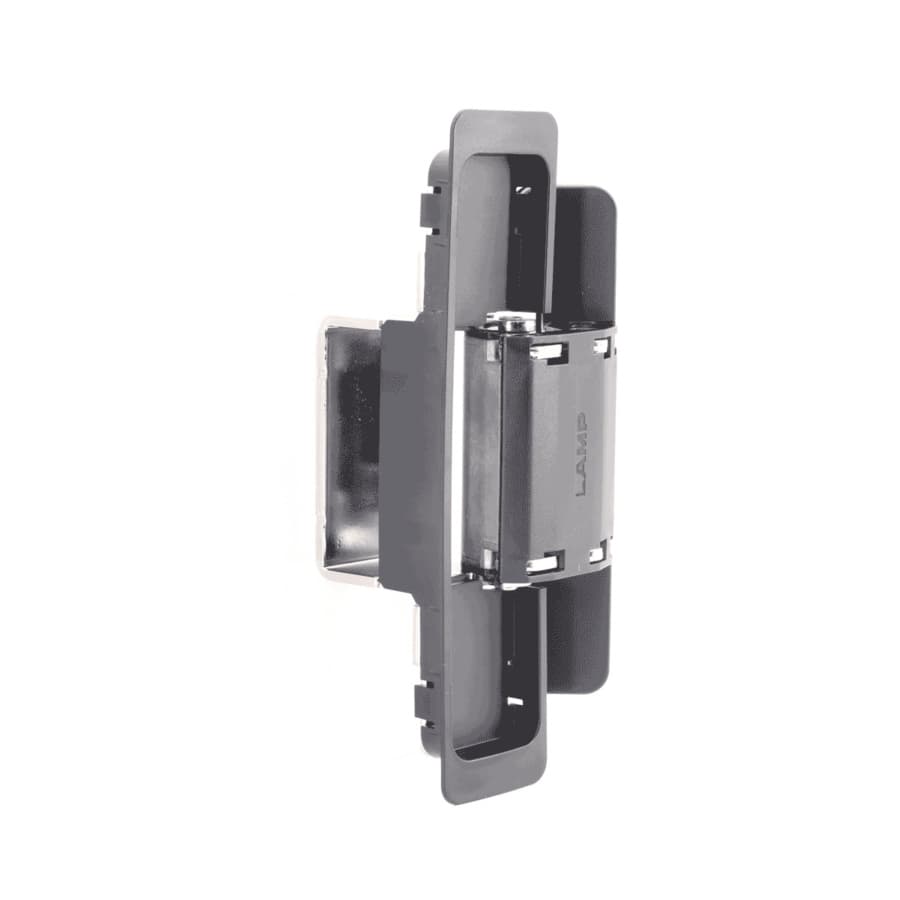

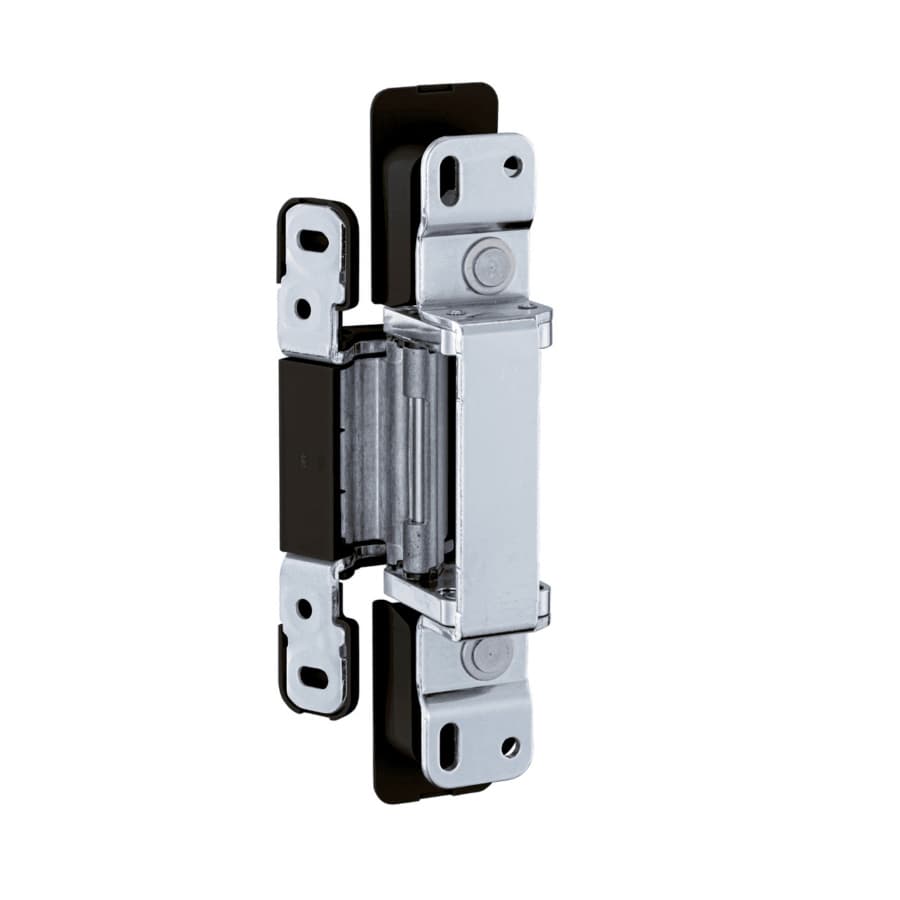

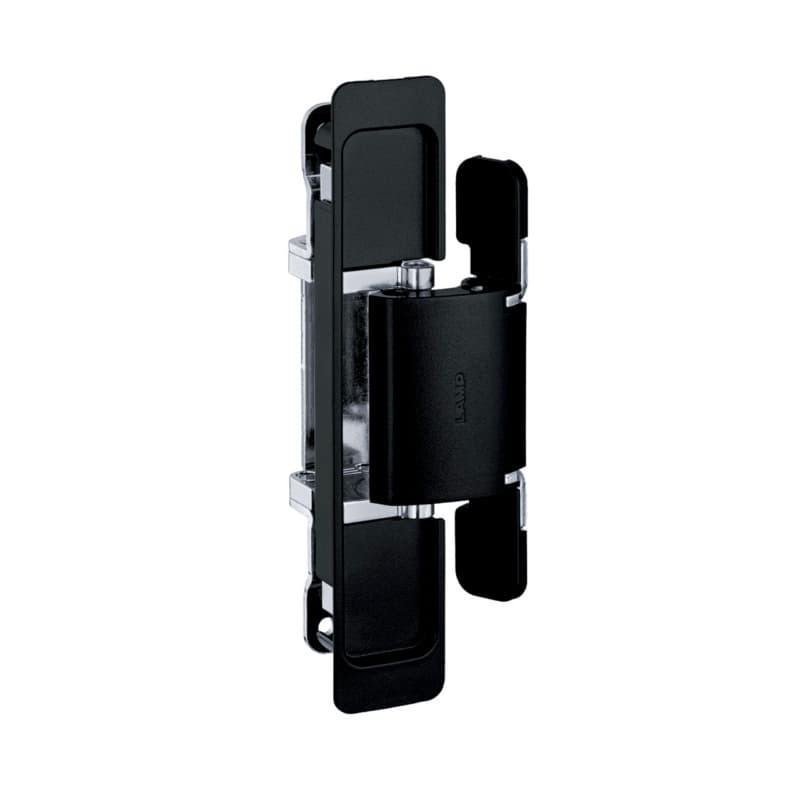

HES2S 3-Way Adjustable Concealed 110° Opening Hinge (Frame-Surface Mount), Black
24 items

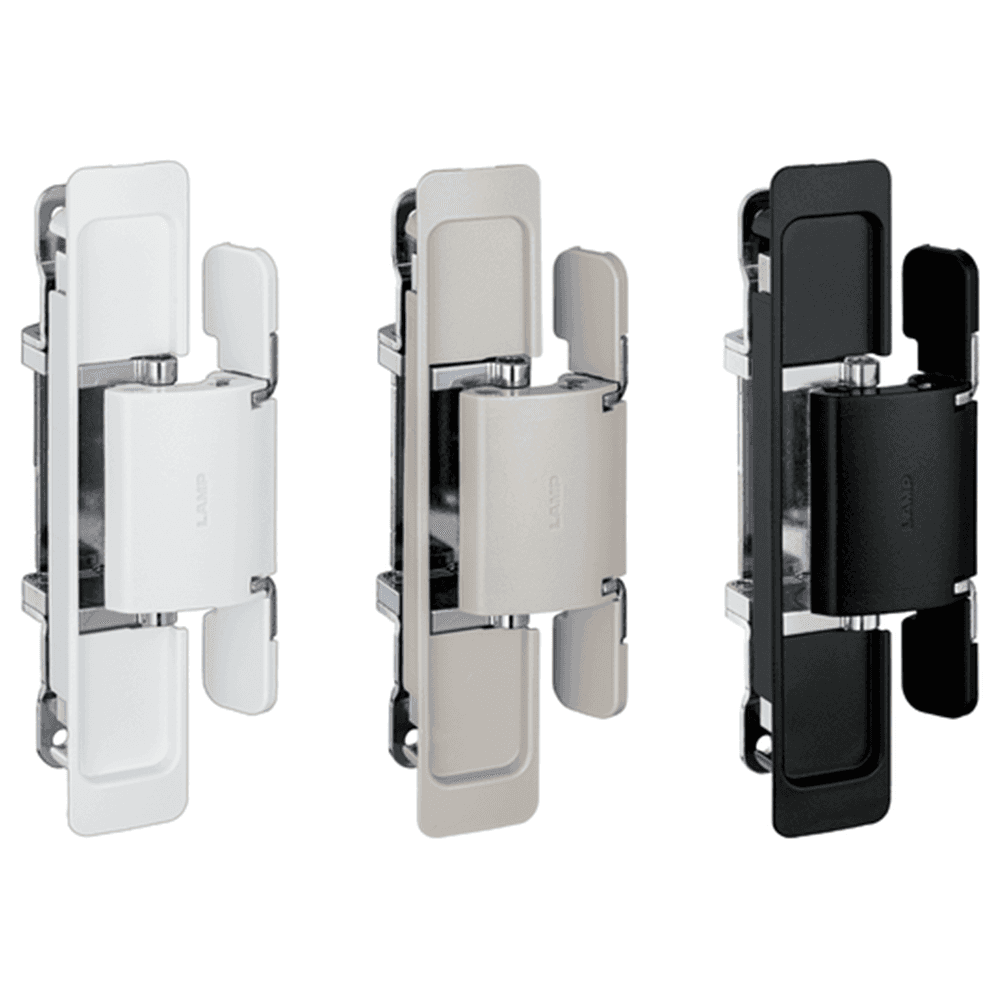

Finish: Black
Product Details

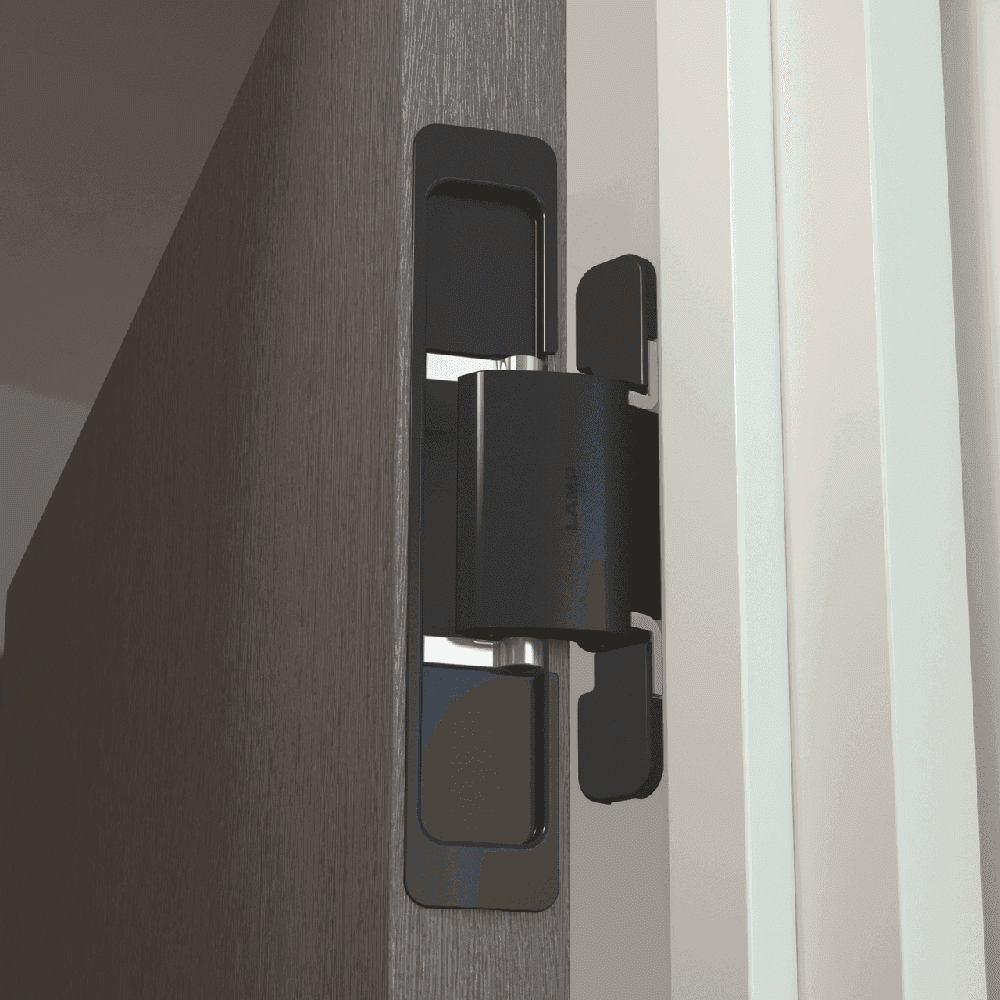

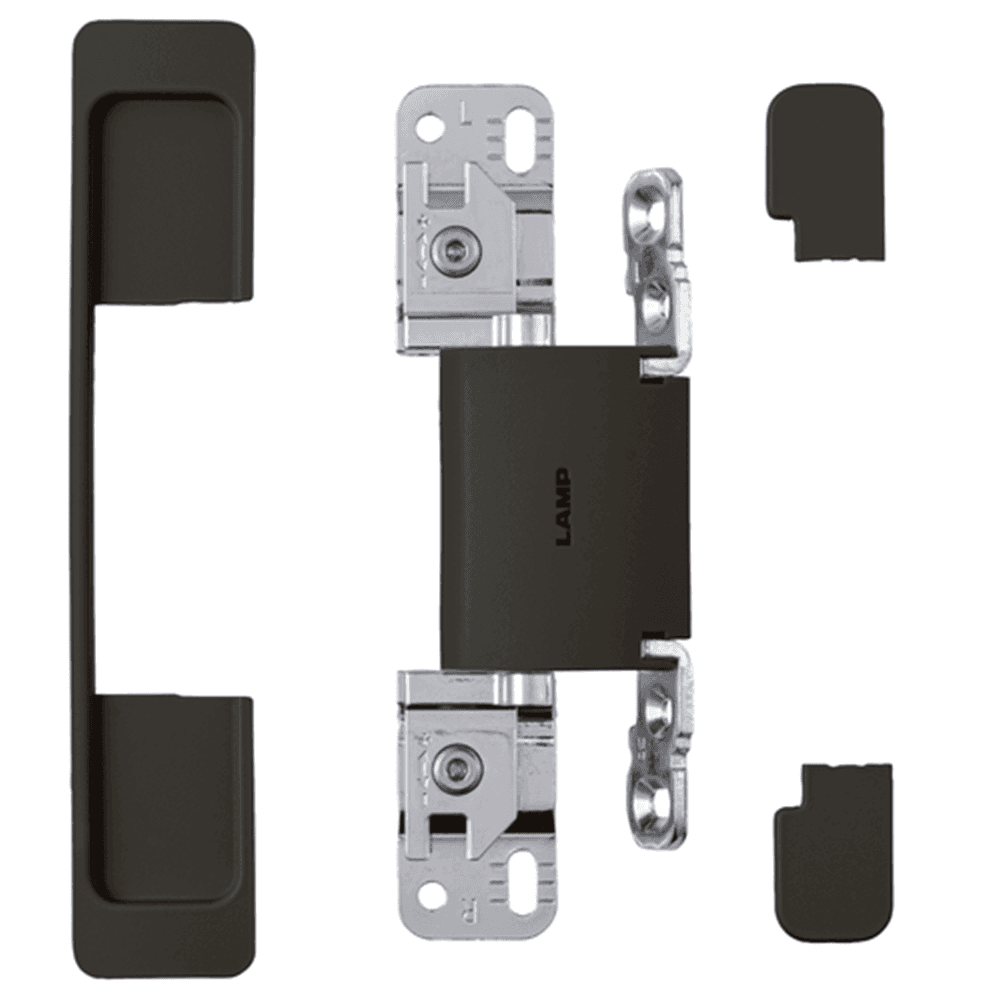

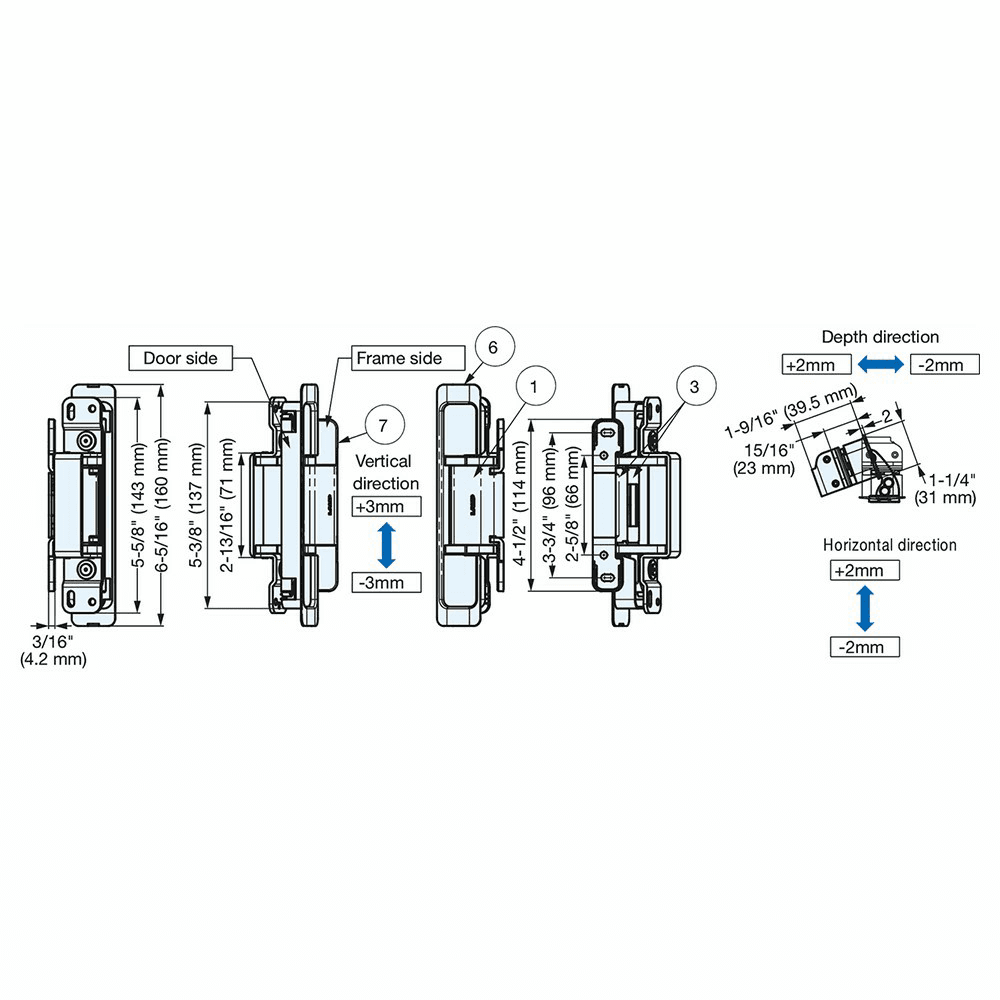

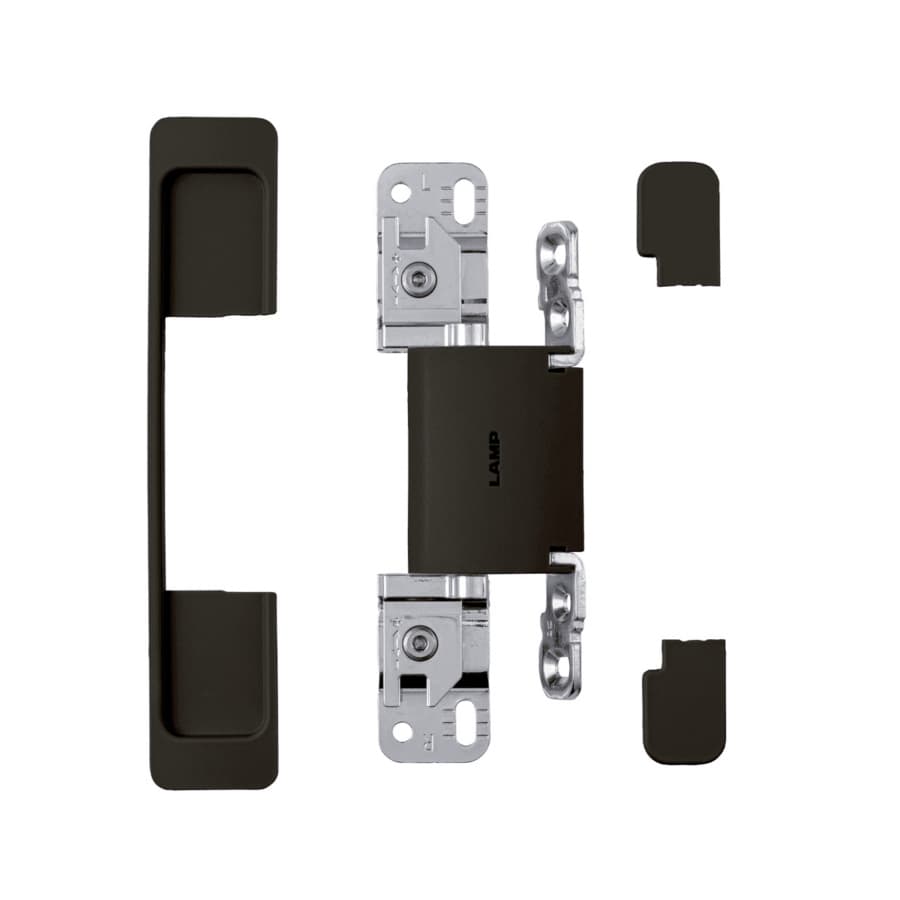

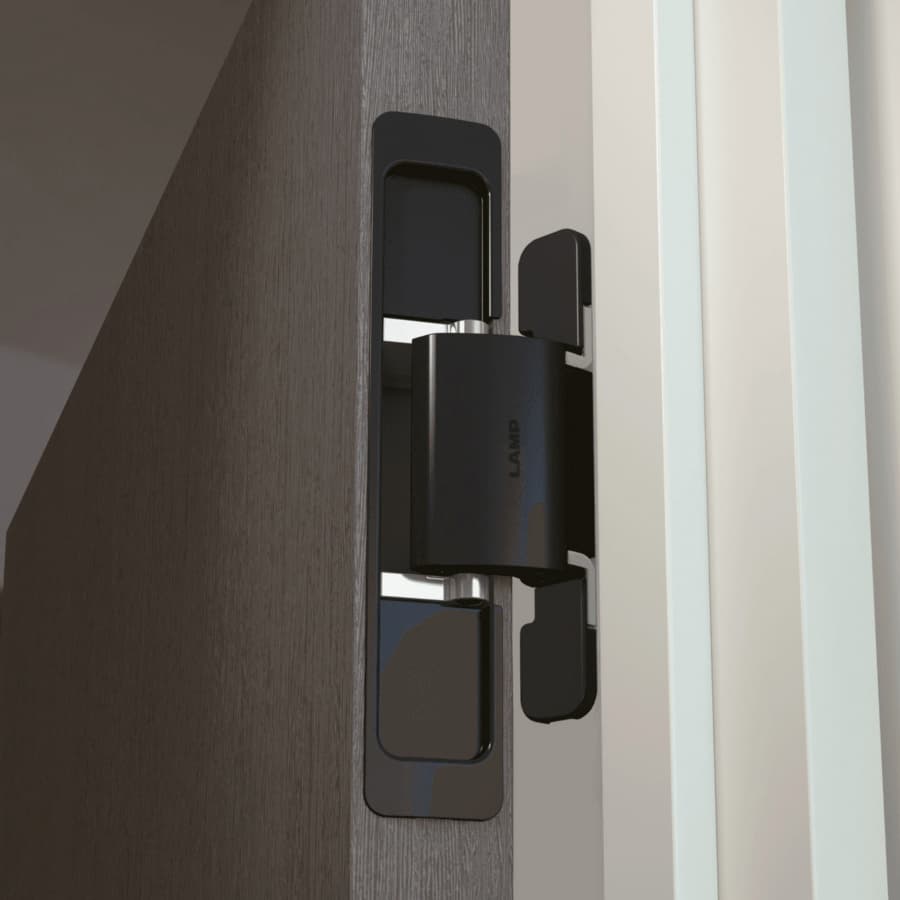

Features: • 3-Way adjustable concealed 110° opening hinge in black finish • Surface mount to the door frame for easy installation • Recommended door thickness is 1-3/8” (35 mm) or more • Opens to 110°. Door stopper is required to prevent breakage of the hinges and failure of the door • Compact and sturdy design combined with an exceptionally simple install • Durability: successfully passed 300,000 open/close private cycles • Adjustable depth ±1/8" (3 mm), vertical ±1/8" (3 mm), horizontal with spacer ±1/16" (1 mm) • Included 4 x 20 Countersunk tapping screw 4 x 16 Truss Tapping Screw
Specifications
| Box Quantity | 1 |
| Product Type | |
| Finish | Black |
| Opening Angle | |
| Hinge Type | Adjustable Hinge |
| Material | Steel(SPCC) |
| Length | |
| Barrel Diameter | |
| Material Thickness | |
| Screw Hole | |
| Door Thickness | 1-3/8" |
| Height | 6-5/16" |
| Width | |
| Closing Type |
