| Box Quantity | 1 |
| Opening Angle | 110 Degree |
| Product Type | Invisible Hinge |
| Weight Rating per Pair | 88 lb |
| Minimum Door Thickness (in) | 1-3/8 in |
| Minimum Door Thickness (mm) | 35 mm |
| Maximum Door Height (in) | 106-5/16 in |
| Maximum Door Thickness (in) | 1-3/8 in |
| Maximum Door Width | 35-7/16 in |
| Manufacturer Series | HES2S |
| Material Type | Zinc |
| Color/Finish | White |
| Length (in) | 6-5/16 in |
| Width (in) | 1-1/16 in |
| Adjustment Type | 3D |




| Box Quantity | 1 |
| Opening Angle | 110 Degree |
| Product Type | Invisible Hinge |
| Weight Rating per Pair | 88 lb |
| Minimum Door Thickness (in) | 1-3/8 in |
| Minimum Door Thickness (mm) | 35 mm |
| Maximum Door Height (in) | 106-5/16 in |
| Maximum Door Thickness (in) | 1-3/8 in |
| Maximum Door Width | 35-7/16 in |
| Manufacturer Series | HES2S |
| Material Type | Zinc |
| Color/Finish | White |
| Length (in) | 6-5/16 in |
| Width (in) | 1-1/16 in |
| Adjustment Type | 3D |
Features:

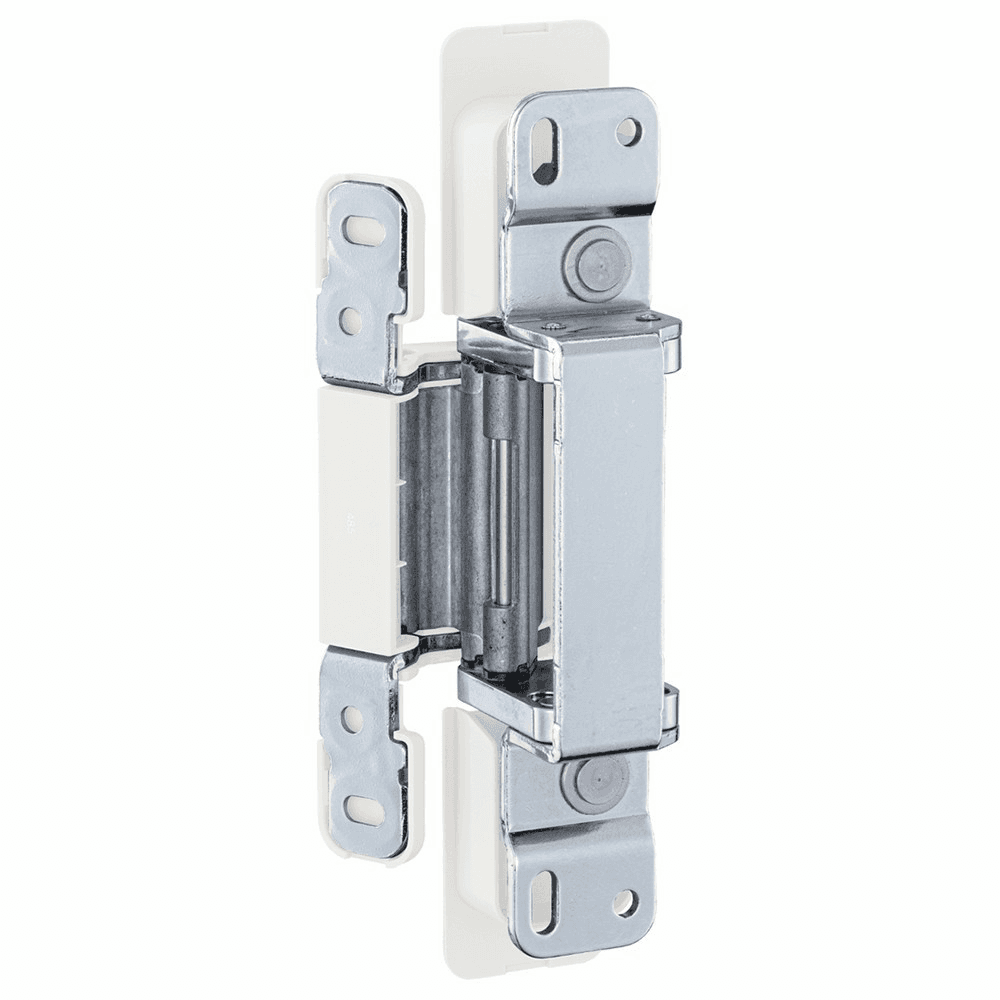

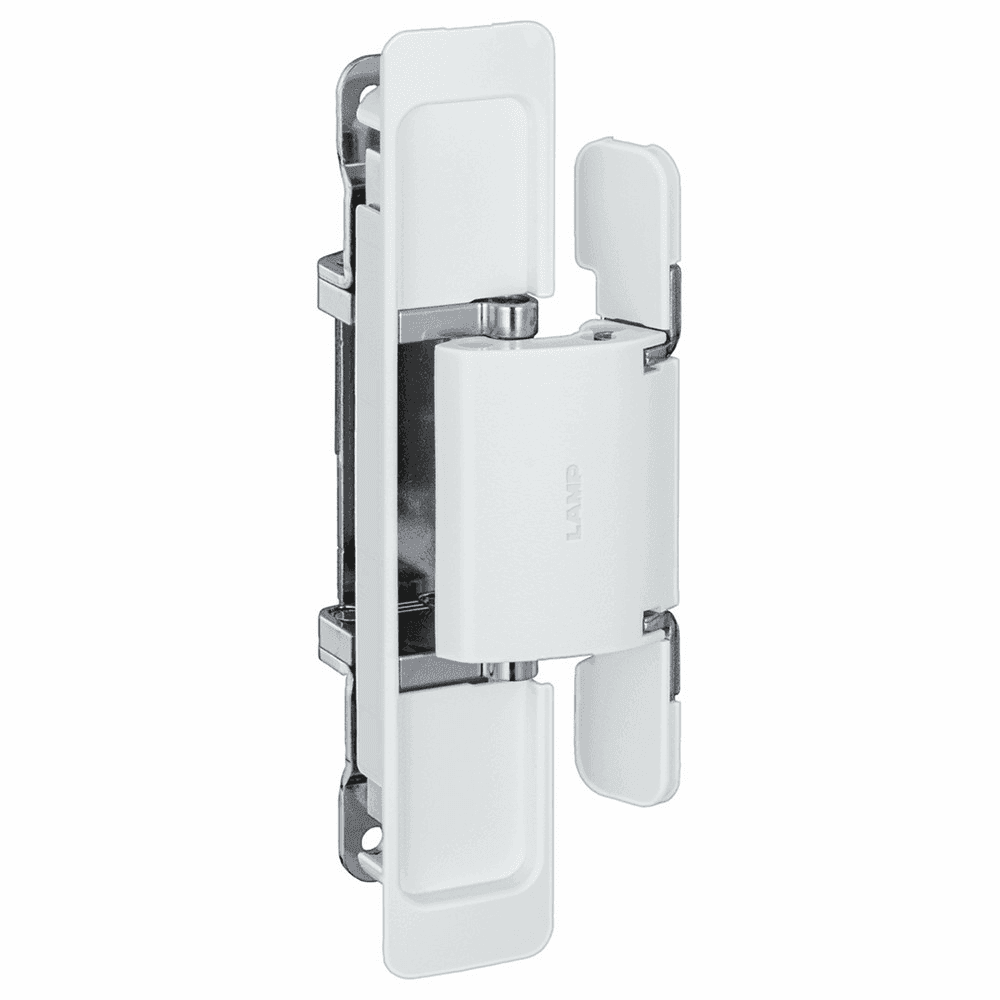

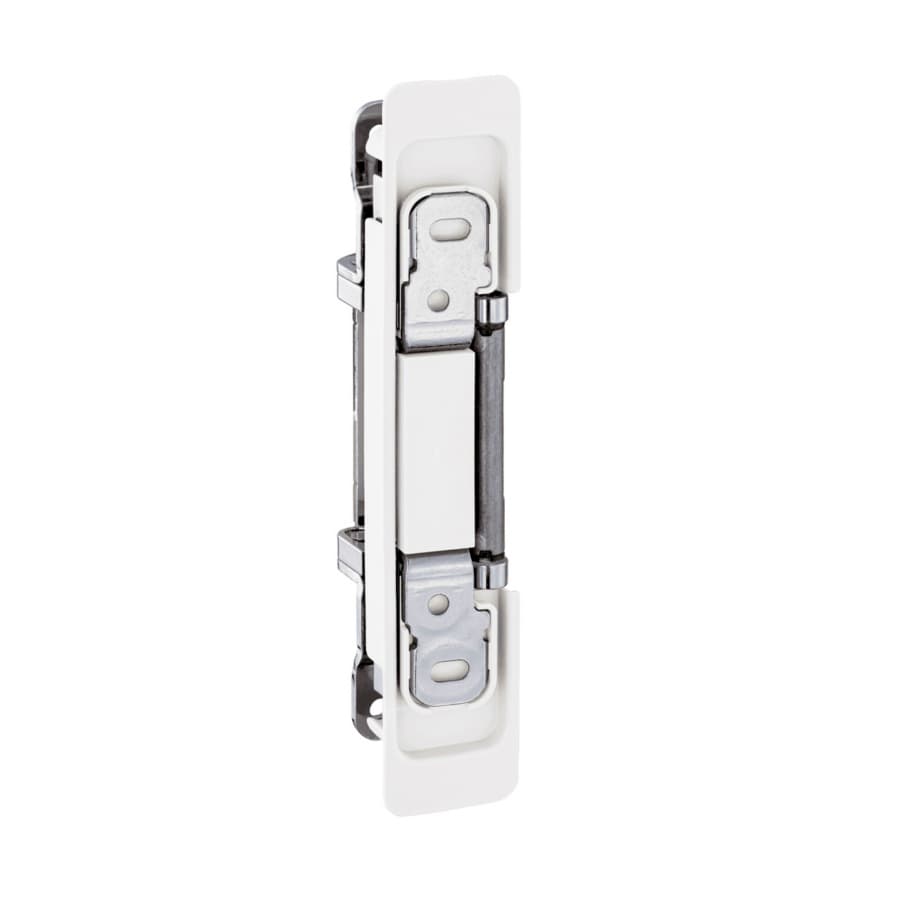

• 3-Way adjustable concealed 110° opening hinge in white finish

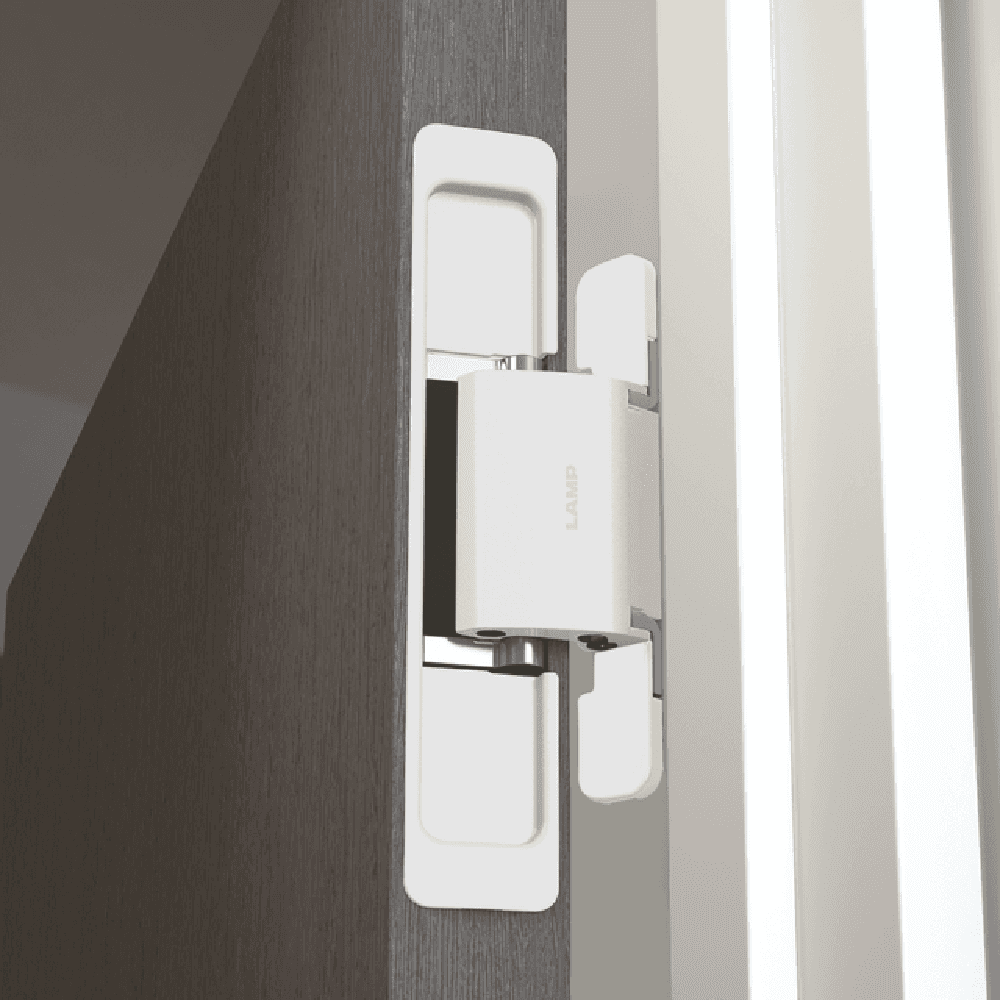

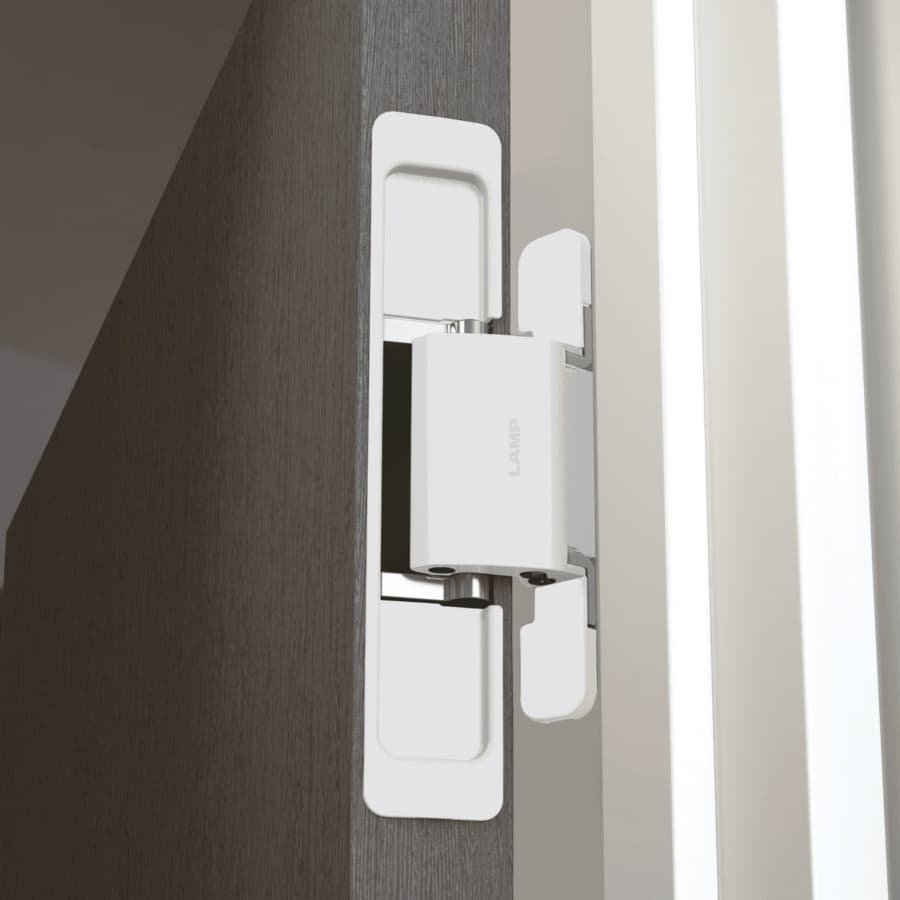

• Surface mount to the door frame for easy installation
• Recommended door thickness is 1-3/8" (35 mm) or more
• Opens to 110°. Door stopper is required to prevent breakage of the hinges and failure of the door
• Compact and sturdy design combined with an exceptionally simple install
• Durability: successfully passed 300,000 open/close private cycles

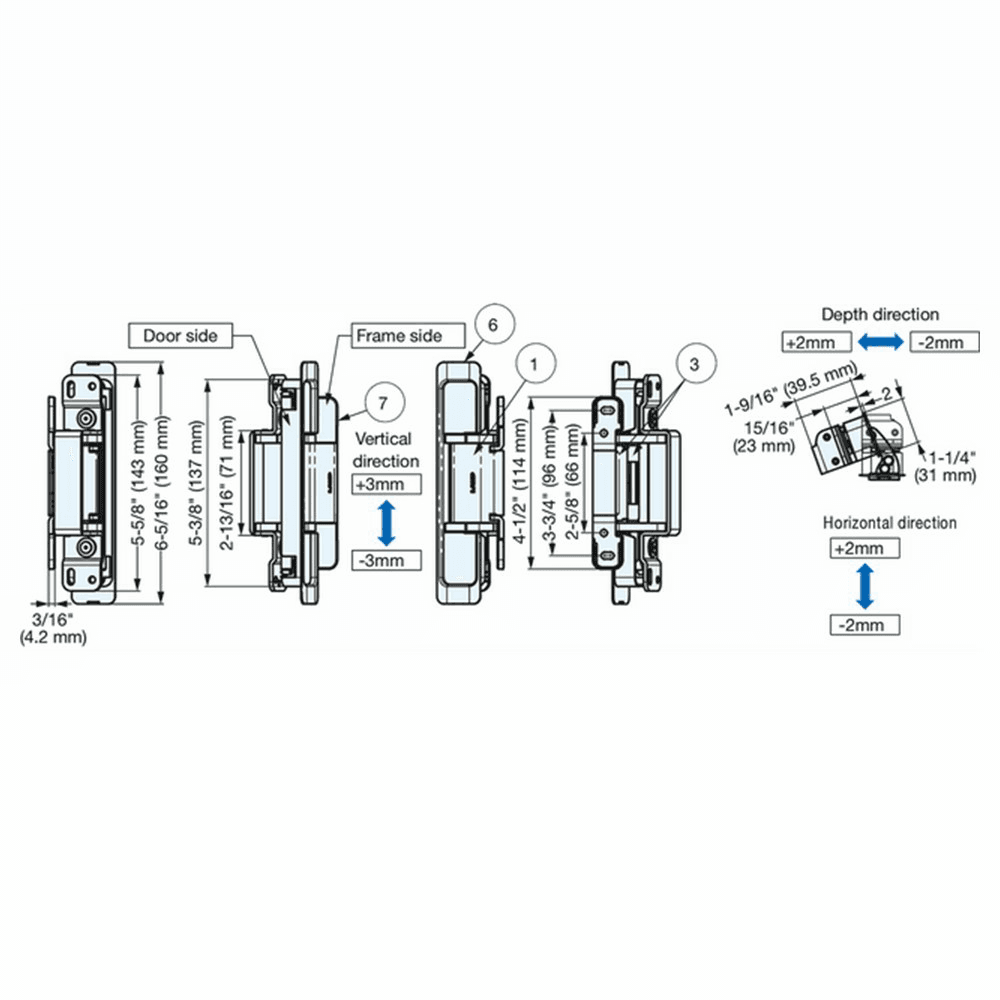

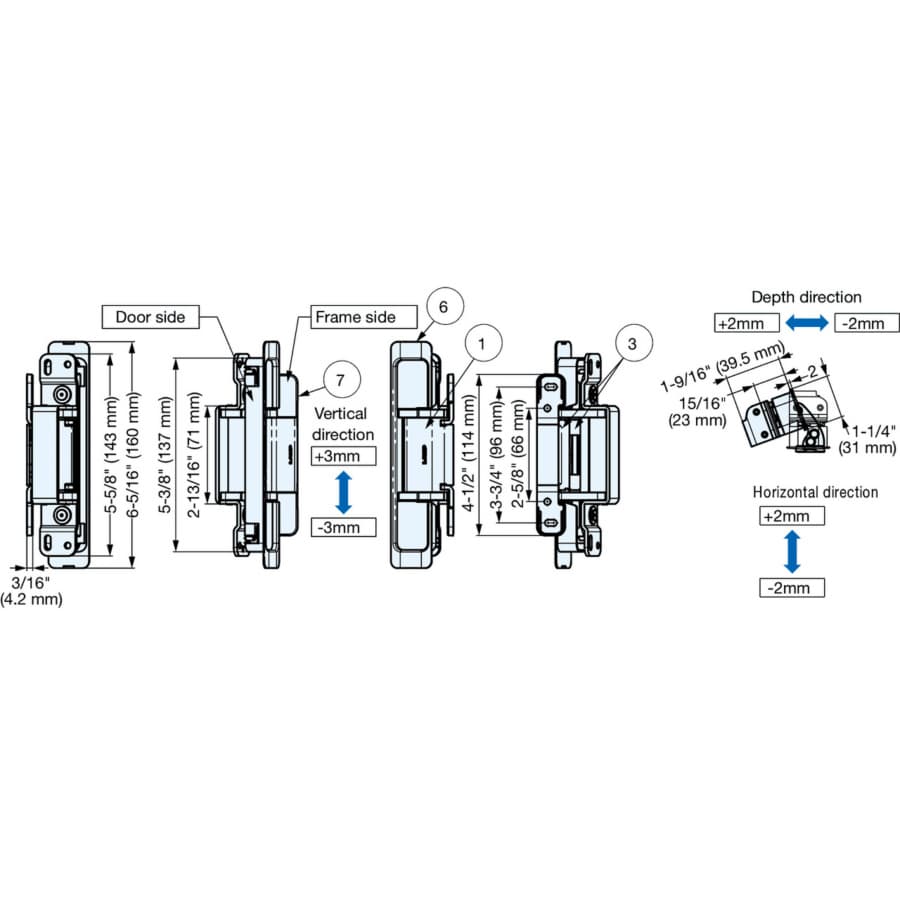

• Adjustable depth ±1/8" (3 mm), vertical ±1/8" (3 mm), horizontal with spacer ±1/16" (1 mm)
• Included 4 x 20 Countersunk tapping screw 4 x 16 Truss Tapping Screw
