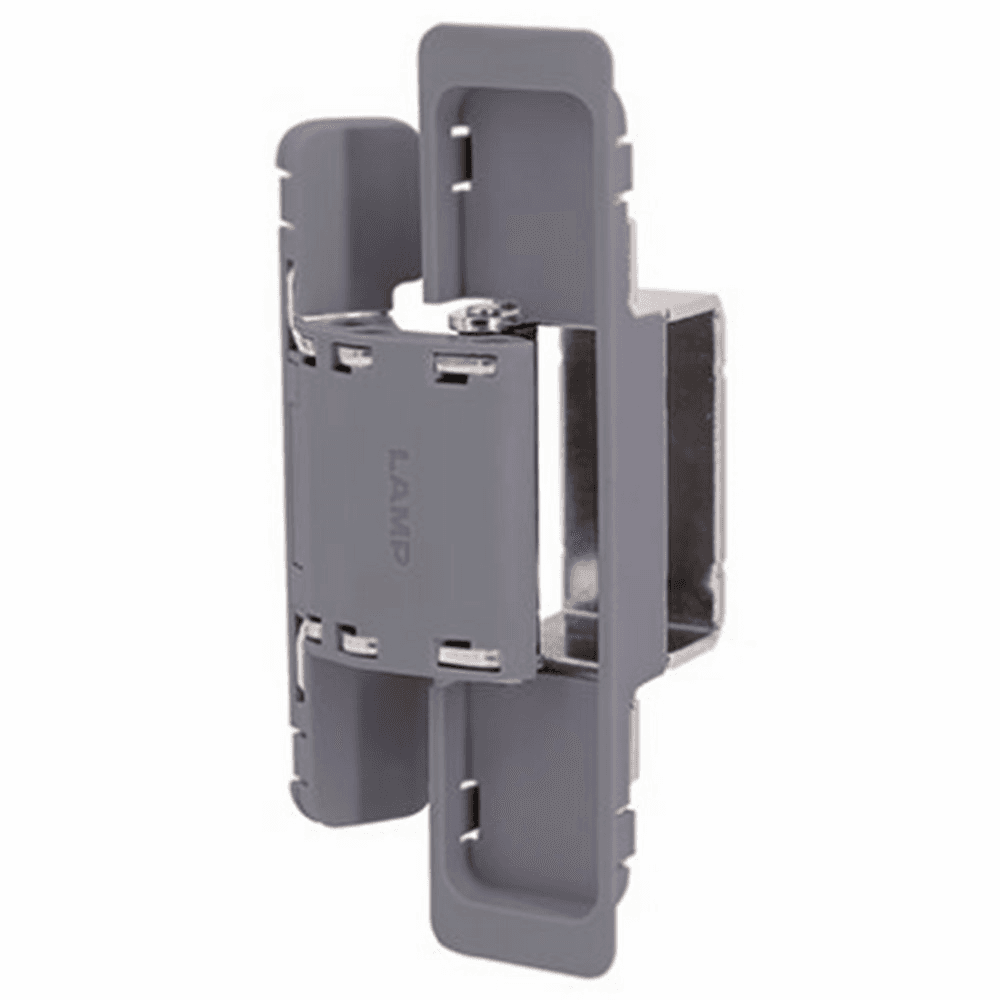

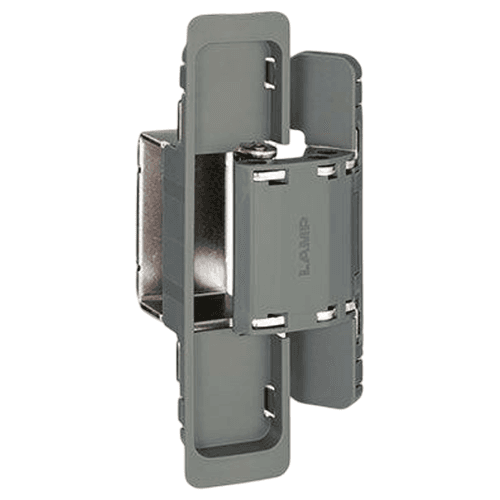

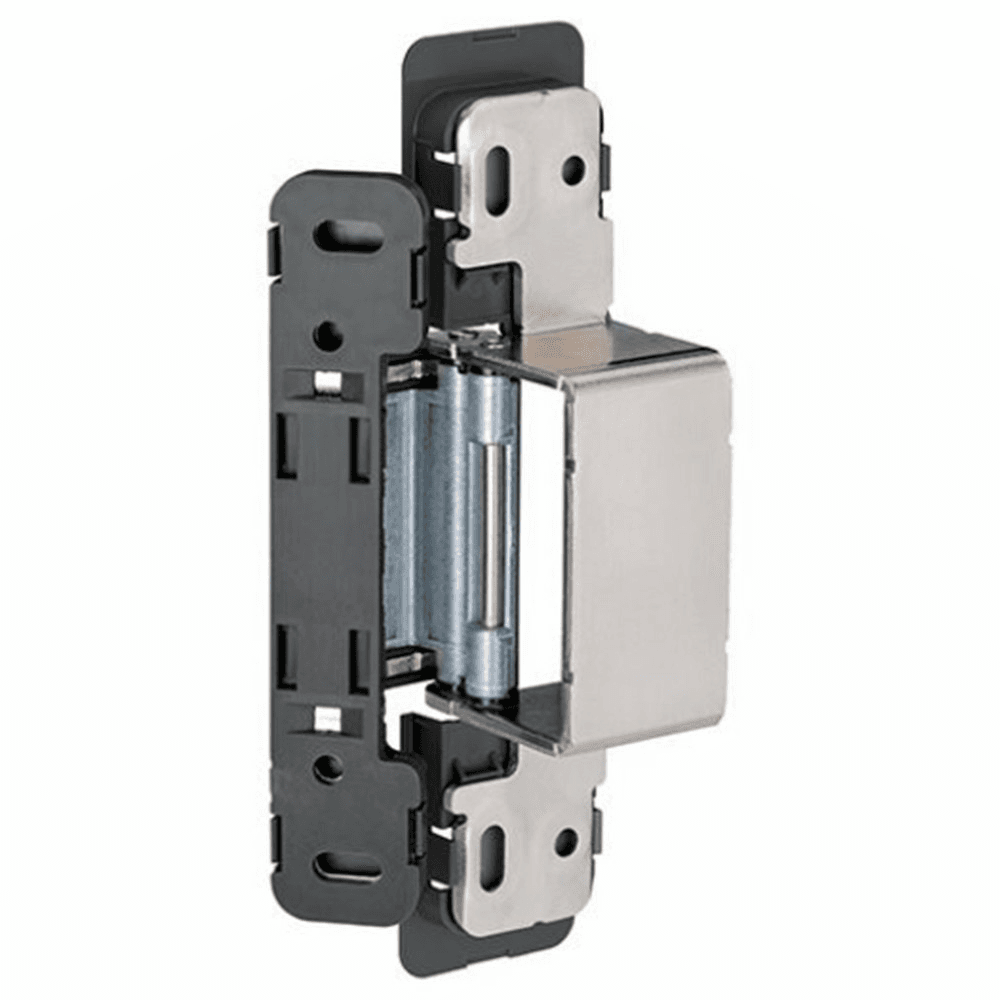

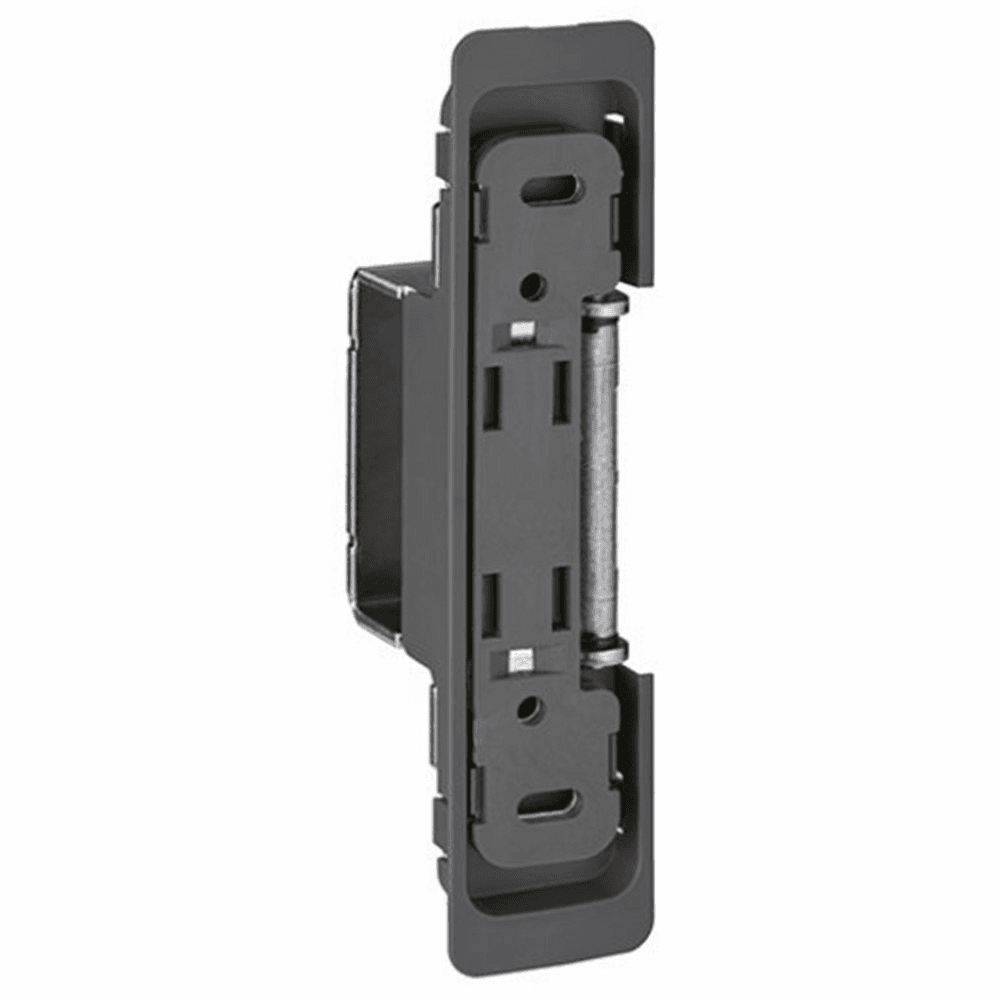

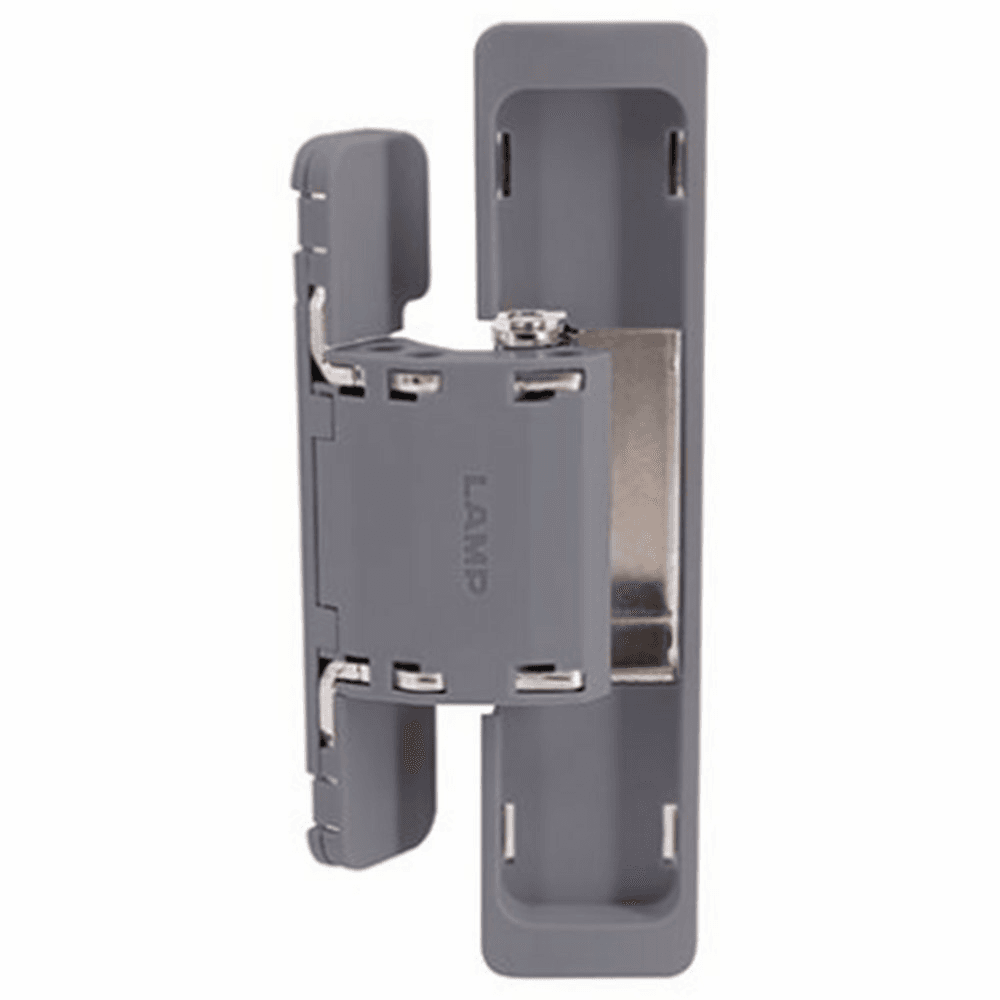

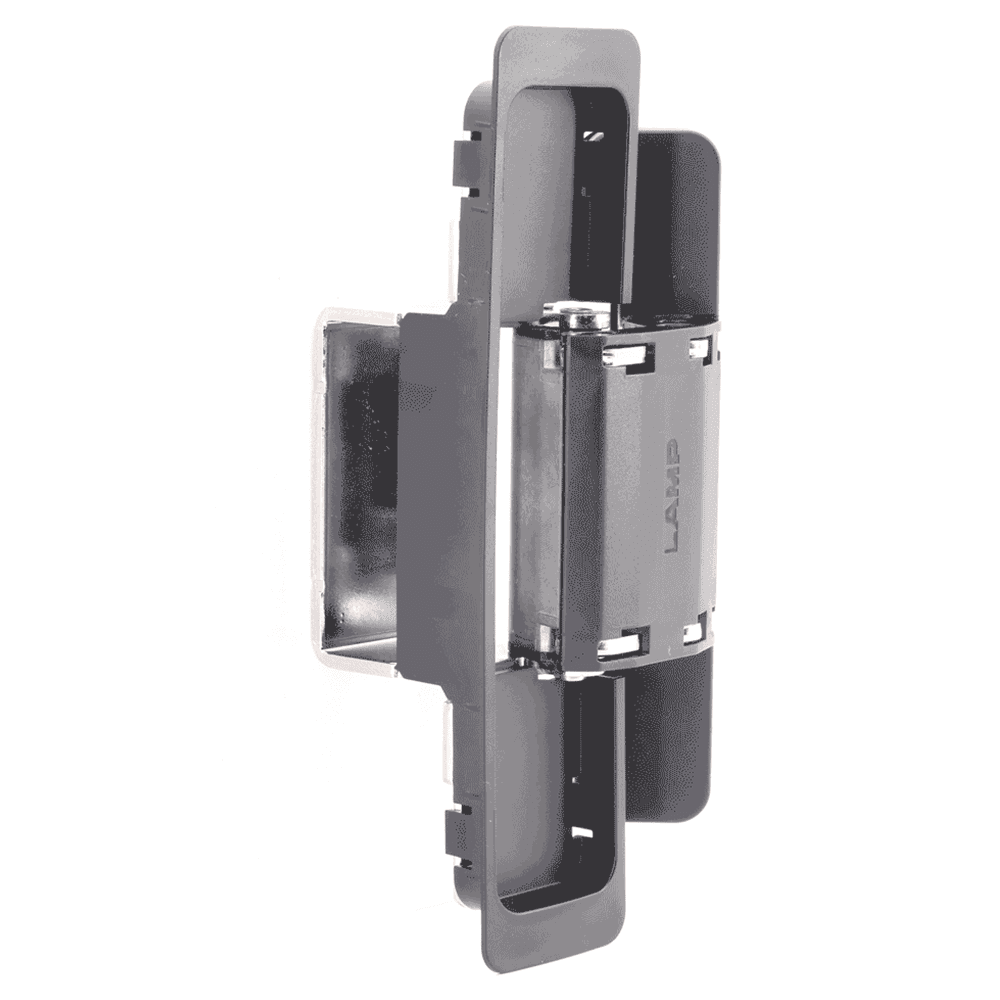

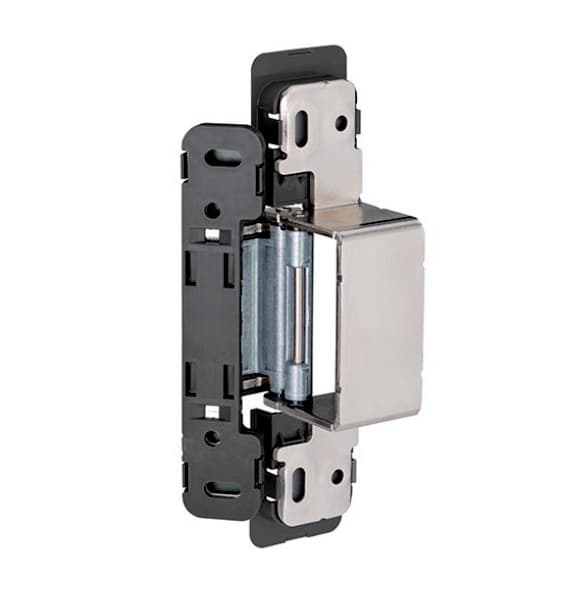

HES2S 3-Way Adjustable Concealed 125° Opening Hinge (Frame-Surface Mount), Dark Grey
Finish: Dark Grey
Product Details

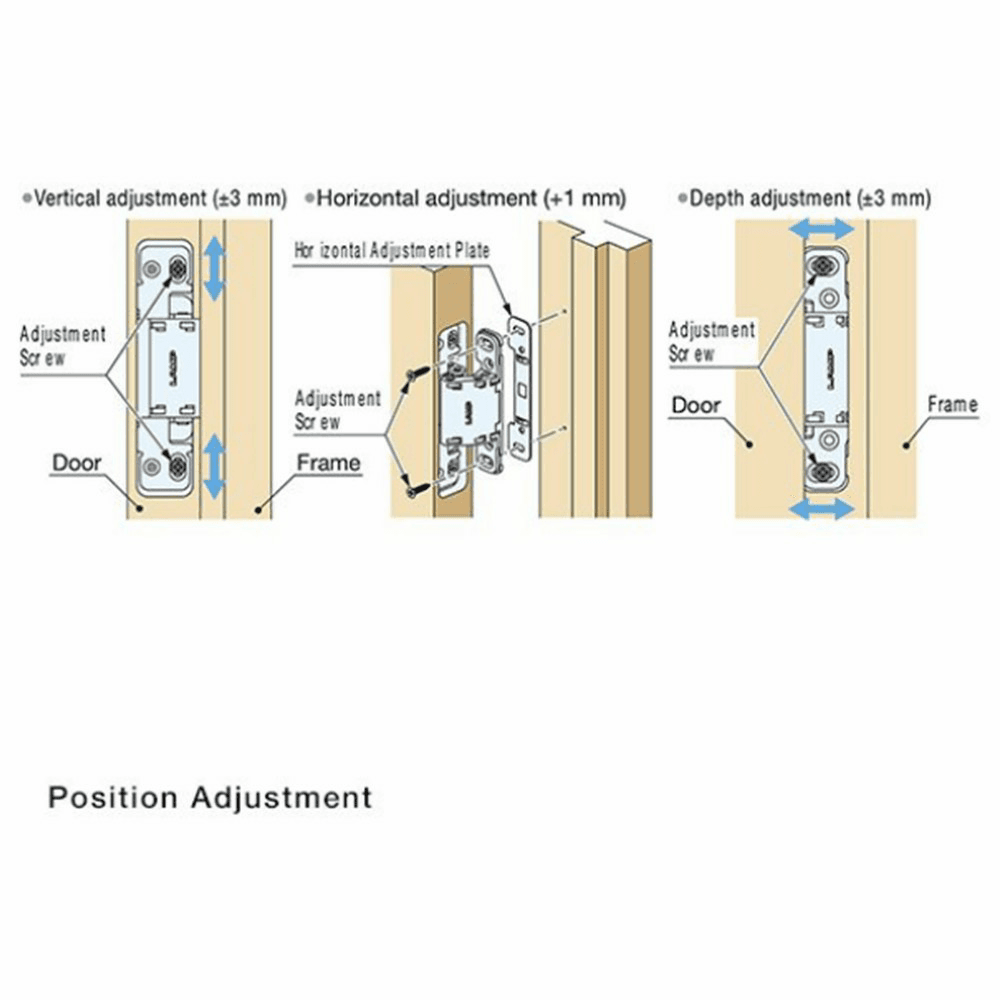

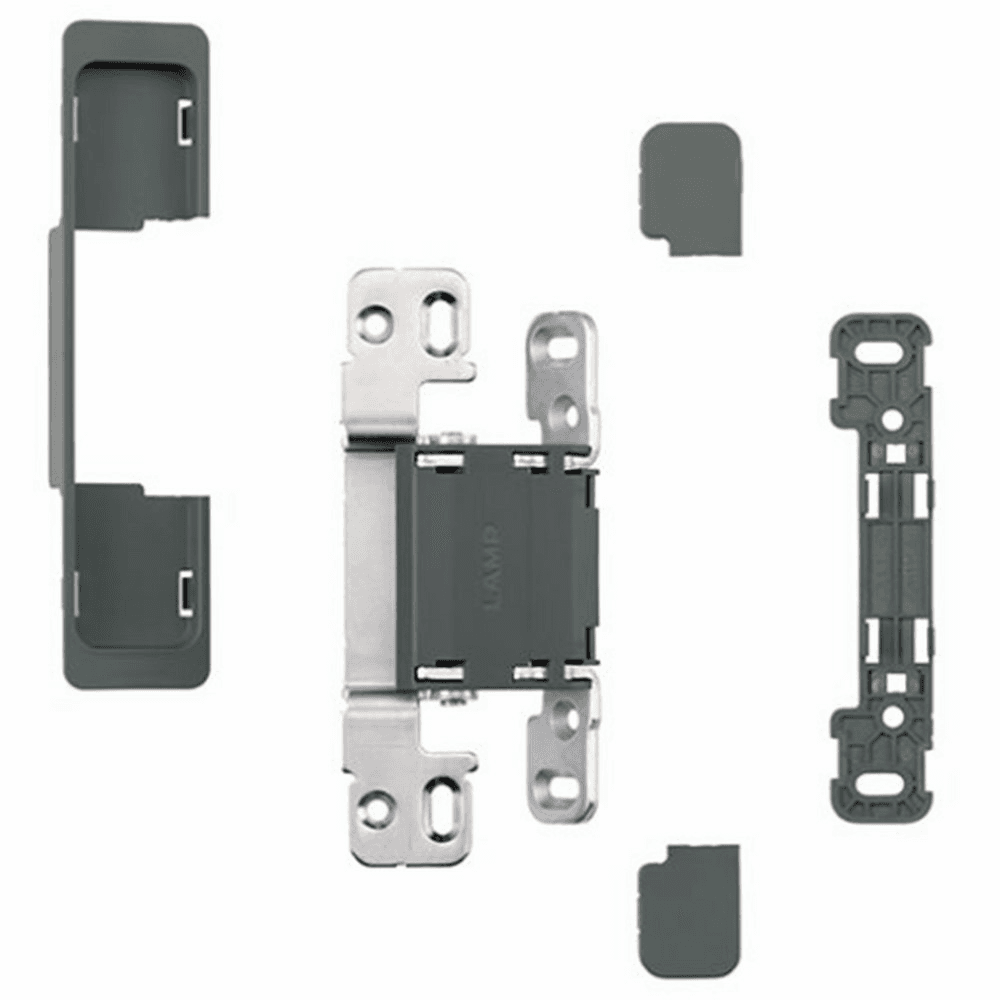

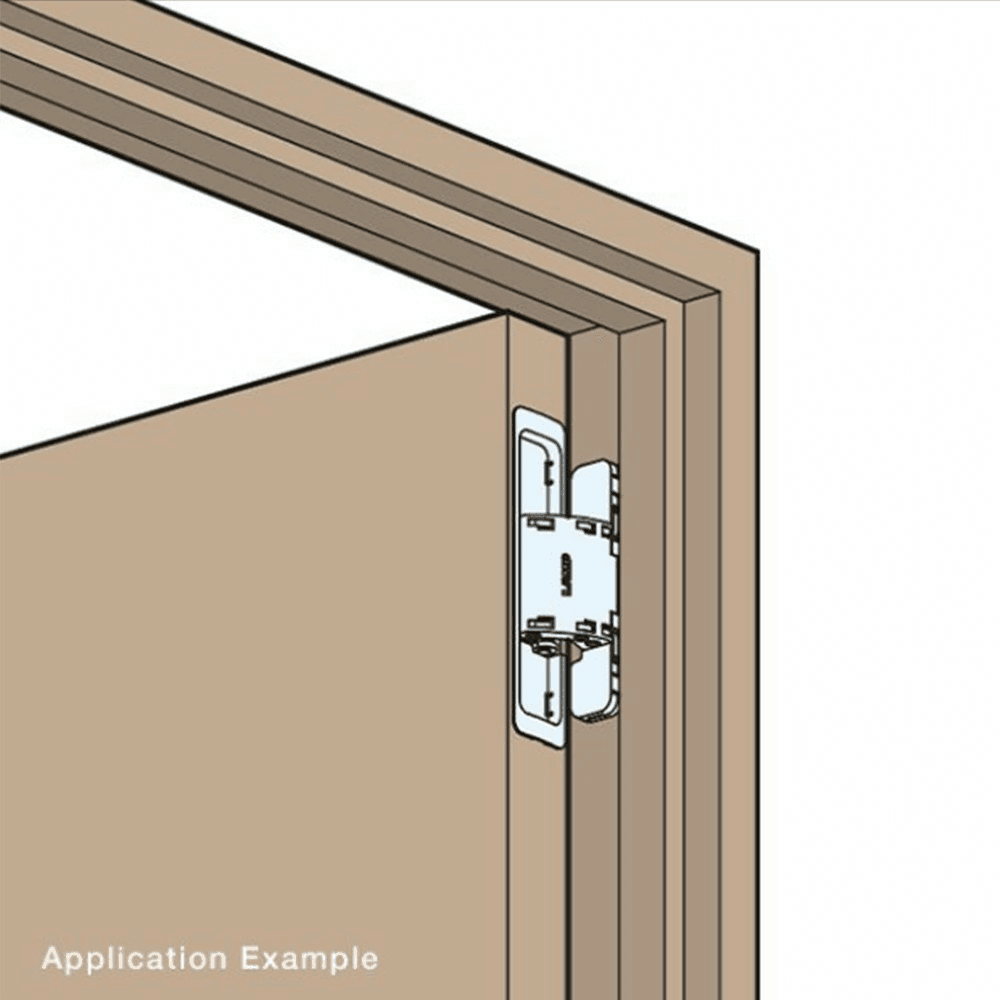

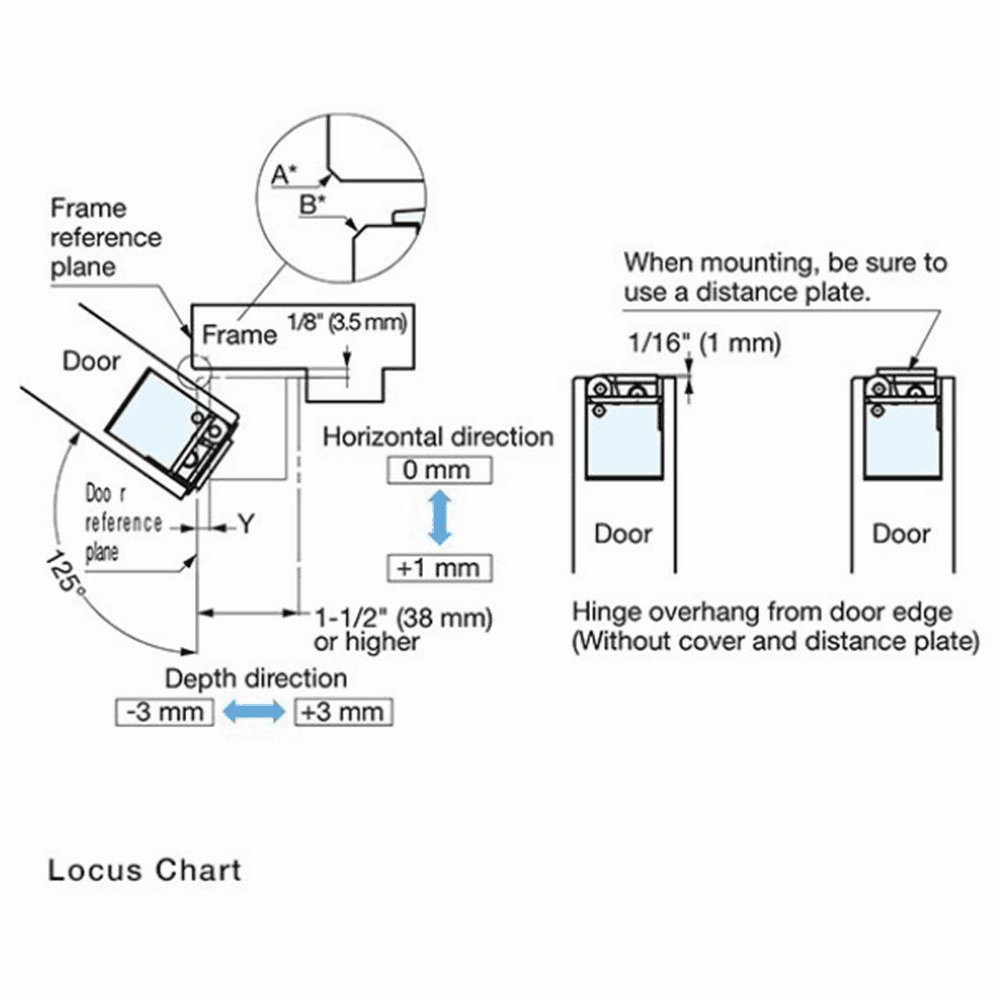

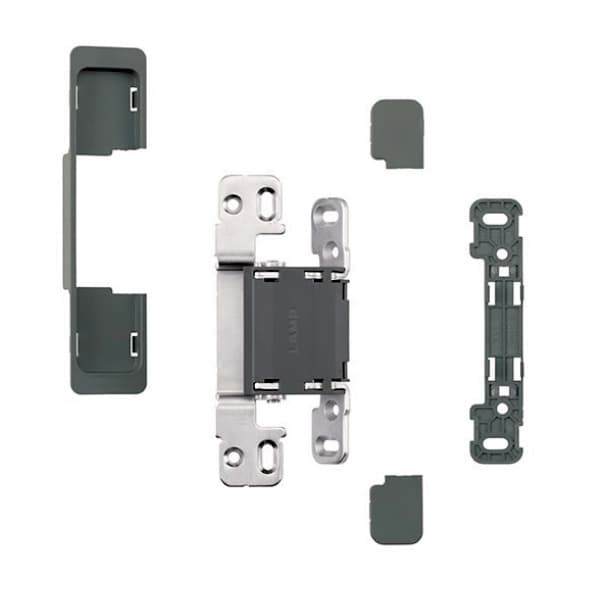

Features: • 3-Way adjustable concealed 125° opening hinge in dark grey finish • Surface mount to the door frame for easy installation • Recommended door thickness is 1-1/2" (38 mm) or more • Opens to 125°. Door stopper is required to prevent breakage of the hinges and failure of the door • Compact and sturdy design combined with an exceptionally simple install • Durability: successfully passed 300,000 open/close private cycles • Adjustable depth ±1/8" (3 mm), vertical ±1/8" (3 mm), horizontal with spacer ±1/16" (1 mm) • Included Countersunk Head Tapping Screw 4x20 (8pcs/hinge)
Specifications
| Box Quantity | 1 |
| Product Type | |
| Finish | Dark Grey |
| Opening Angle | |
| Hinge Type | Adjustable Hinge |
| Material | Steel(SPCC) |
| Length | |
| Barrel Diameter | |
| Material Thickness | |
| Screw Hole | |

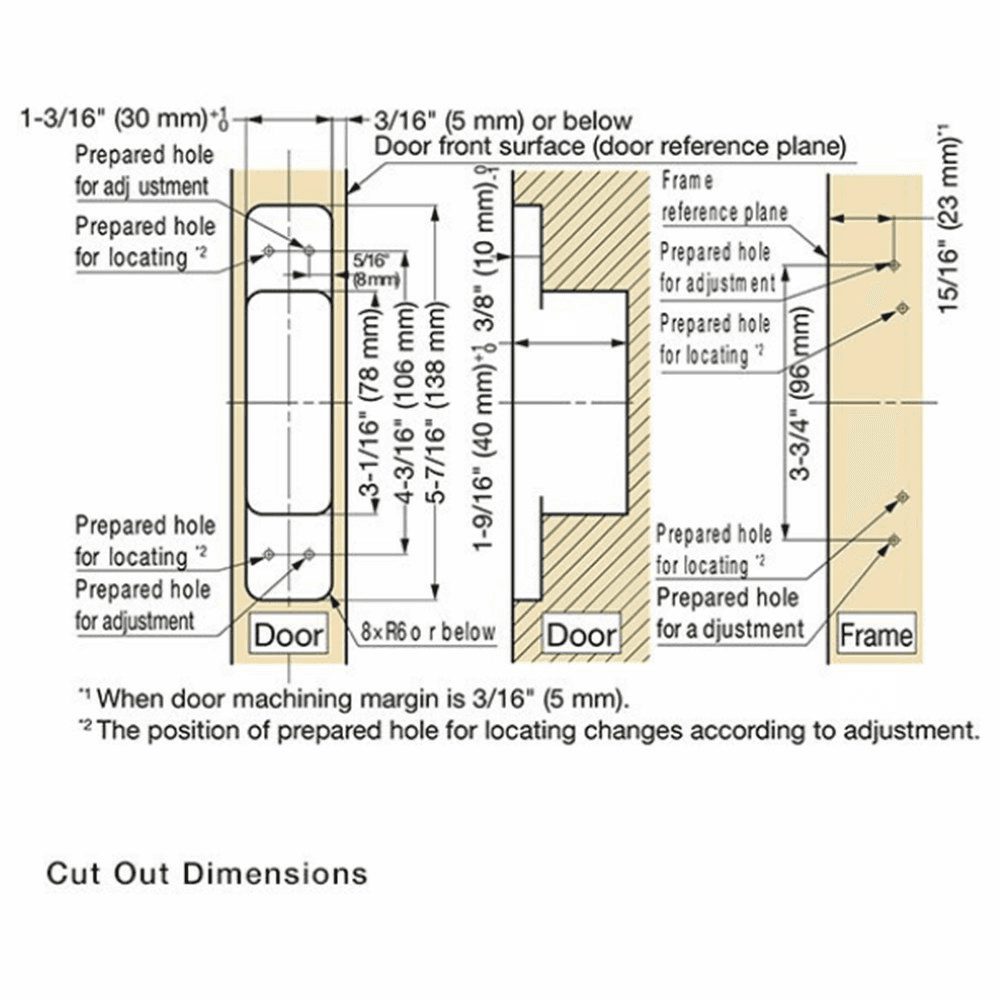

| Door Thickness | 1-1/2" |
| Height | 5-7/16" |
| Width | 1-3/16" |
| Closing Type |
