CLIP Top 110° Hinge with BLUMOTION, Dowelled
B71B358
List Price $3.21
$2.70
Save Up To$0.51
Box of 250 $675.00 save $127.75
Shop nowSeptember Stock Up Sale Prices Good Through September 30th
Blum CLIP top hinges
by each or the box
Silent, effortless close regardless of door weight or closing speed. Soft-close is built into the hinge cup.
Blum's CLIP top system is the industry standard for a reason: soft-close is built into the hinge cup, the tool-free CLIP mounting means a door comes on and off in seconds, and every hinge carries three-dimensional adjustment for a perfect reveal across a full bank of doors.
Save Up To$300 OFF
Hinge + plate = one door
Start with the cabinet, then the attachment
A complete door needs one hinge and one mounting plate. Frameless cabinets take a wing plate, face frame cabinets take a face frame plate. Then choose how the hinge cup fastens to the door. Hinges ship 250 to a box, plates 500.
Hinges
Mounting Plates
| Mounting plate | Cabinet | Type | Height | Sale ea | Box | Box price |
|---|---|---|---|---|---|---|
| B174H7100E | Frameless | Wing, cam adjustable, Expando screws | 0mm | $0.59 | 500 | $295.00 |
| B175L6600.22 | Face frame | Off-center mount, screw-on | 0mm | $0.56 | 500 | $280.00 |
| B175H6000 | Face frame | Cam adjustable, screw-on | 0mm | $0.80 | 250 | $200.00 |
| B175L6630.22 | Face frame | Off-center mount, screw-on | 3mm | $0.61 | 500 | $305.00 |
| B175H710 | Frameless | Wing, 2-piece, screw-on | 0mm | $0.50 | 500 | $250.00 |
Buy the box, or break one
One box of plates saves $300
Priced by the box, 500 for plates and 250 for hinges, the discount becomes a serious line item, and $300 off the wing plate box is the biggest saving in the promotion. Only need a door's worth? We break boxes: every item is sold by each at the same sale pricing.
| Item | List Price | Sale price | Save Up To |
|---|---|---|---|
| CLIP 2-piece wing plate · B175H710 | $1.10 | $0.50 | $0.60 |
| Box of 500 | $551.00 | $250.00 | $301.00 |
| Clip Top 110°+ Hinge Soft-Closing · B73B355 | $3.84 | $3.29 | $0.55 |
| Box of 250 | $959.50 | $822.50 | $137.00 |
Building storage into the run?
Rev-A-Shelf soft-close waste pullouts are up to 50% off through September 30.
Hinges
CLIP top BLUMOTION, September 1–30
Every hinge shown single and by the box.
CLIP Top 110° Hinge with BLUMOTION, Inserta
B71B359
List Price $4.70
$4.05
Save Up To$0.65
Box of 250 $1012.50 save $163.12
Shop now
CLIP Top 110° Hinge with BLUMOTION, Screw-On
B71B355
List Price $3.93
$3.29
Save Up To$0.64
Box of 250 $822.50 save $160.75
Shop now
CLIP Top 110° Hinge with BLUMOTION, Expando
B71B358E
List Price $3.21
$2.70
Save Up To$0.51
Box of 250 $675.00 save $127.75
Shop now
CLIP Top 110°+ Hinge with BLUMOTION, Screw-On
B73B355
List Price $3.84
$3.29
Save Up To$0.55
Box of 250 $822.50 save $137.00
Shop now
CLIP Top 110°+ Hinge with BLUMOTION, Dowelled
B73B358
List Price $3.21
$2.70
Save Up To$0.51
Box of 250 $675.00 save $127.75
Shop now
CLIP Top 110°+ Hinge with BLUMOTION, Inserta
B73B359
List Price $4.70
$4.05
Save Up To$0.65
Box of 250 $1012.50 save $163.12
Shop now
CLIP Top 110°+ Hinge with BLUMOTION, Expando
B73B358E
List Price $3.21
$2.70
Save Up To$0.51
Box of 250 $675.00 save $127.75
Shop nowMounting plates
CLIP plates for frameless and face frame
Plates ship 500 to a box. The 2-piece wing plate is the deepest cut in the whole promotion at 55% off.
CLIP Cam Adjustable Wing Mounting Plate, Expando, 0mm
B174H7100E
List Price $0.71
$0.59
Save Up To$0.12
CLIP Off-Center Face Frame Mounting Plate, 0mm
B175L6600.22
List Price $0.66
$0.56
Save Up To$0.10
CLIP Cam Adjustable Face Frame Mounting Plate, 0mm
B175H6000
List Price $1.04
$0.80
Save Up To$0.24
Box of 250 $200.00 save $58.88
Shop now
CLIP Off-Center Face Frame Mounting Plate, 3mm
B175L6630.22
List Price $0.72
$0.61
Save Up To$0.11
Box of 500 $305.00 save $56.00
Shop now

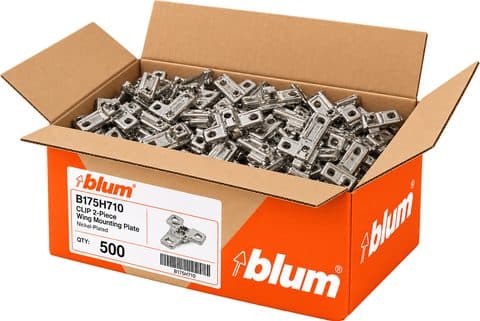

CLIP 2-Piece Wing Mounting Plate, Screw-On, 0mm
B175H710
List Price $1.10
$0.50
Save Up To$0.60
Box of 500 $250.00 save $301.00
Shop nowAnswers
Common questions
What is the difference between CLIP top 110° and 110°+?
Both are full-overlay hinges with a 45mm bore pattern and BLUMOTION soft-close. The 110° lets you get up to a 5/8" to 3/4" overlay. The 110°+ lets you get up to 7/8".
What do Screw-On, Dowelled, Expando and Inserta mean?
They describe how the hinge cup fastens to the door. Screw-on uses wood screws; dowelled and Expando seat into pre-bored holes; Inserta locks in without tools.
Do I need a PlateMate?
Blum recommends a PlateMate with the face frame mounting plates on this page for accurate, repeatable placement.
Do I have to buy a full box?
No. Hinges ship 250 to a box and mounting plates 500, but we break boxes: every hinge and plate on this page is sold by each at the same sale pricing. Buy the box when you are running production; buy the each when you need a door's worth.
Which mounting plate height do I need, 0mm or 3mm?
The plate height determines how much of the door covers the hinge-side of the cabinet face. 0mm is the standard full-overlay setting; 3mm moves the door sideways. Both plates give plus or minus 2mm of cam adjustment afterwards.
Can BLUMOTION soft-close be switched off?
Not on these hinges. The soft-close mechanism is integrated into the hinge cup, which is what keeps the action consistent regardless of door weight. Blum offers separate CLIP top hinges without BLUMOTION where soft-close is not wanted.
