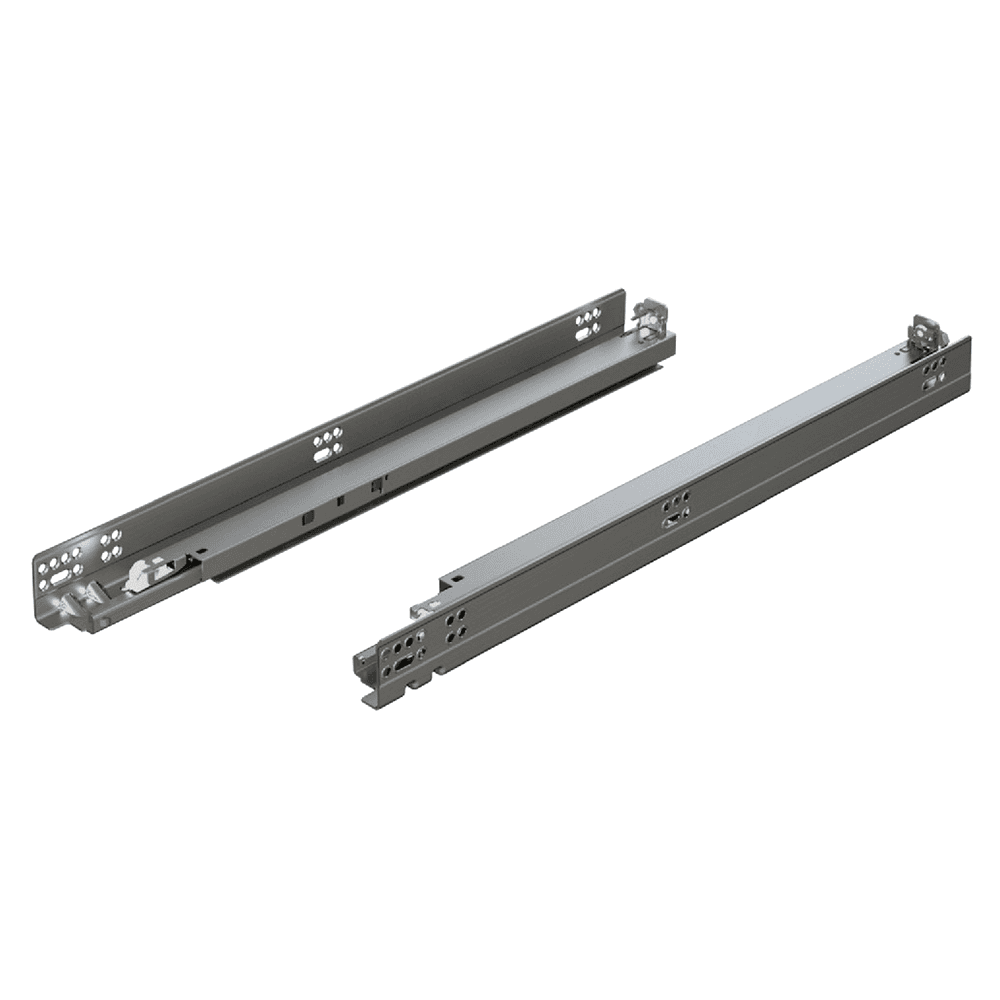

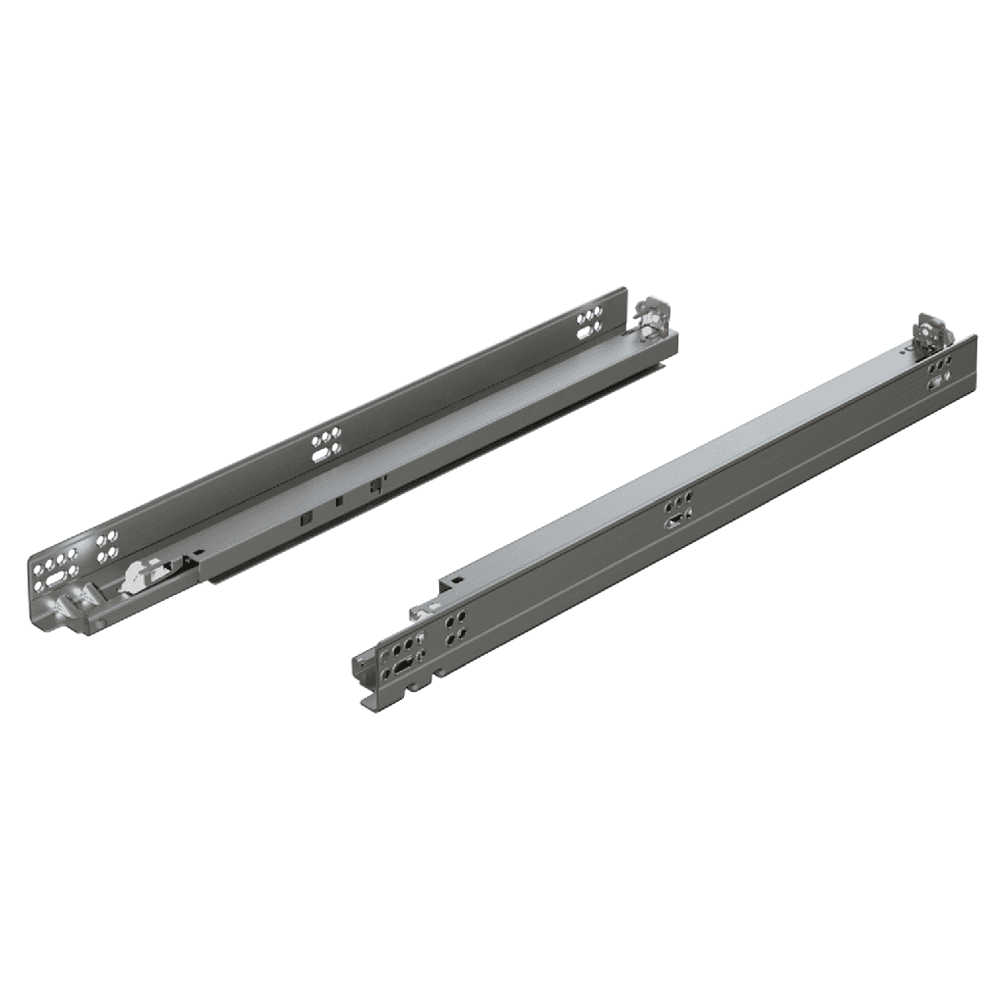

21" Tandem Plus 569F Undermount Drawer Slide for 3/4" Material, 150lb Capacity Full Extension with BLUMOTION Soft-Closing
Item # B569F5330B
•Mfr # 569F5330B
$46.54
/Pair
6 items
$44.88/Pair
Min Order: 1
Qty mult. by: 1
Product Details
TANDEM plus BLUMOTION 569F/569A Heavy Duty Undermount Slides for Drawer Thickness up to 3/4"
TANDEM plus BLUMOTION concealed runners offer four-dimensional adjustment, elongated holes for depth adjustment, bottom mount holes and exceptional load capacity.
The availability of a wide variety of locking devices, rear mounting brackets, sockets and templates make installation virtually effortless.
These concealed runners are the perfect solution for virtually any drawer. Kitchens, vanities, closets, home office and furniture all benefit from the smooth running and soft closing action of TANDEM plus BLUMOTION.
The customer only sees the beauty of the wood drawers while experiencing the quality of motion and soft closing they have come to expect from Blum products.
Features:
• Four-dimensional adjustment
• Elongated holes for depth adjustment
• 150 lb static load capacity
Description:
• Full extension concealed runners
• Frameless or blocked-out face frame cabinets
• BLUMOTION soft closing
• TANDEM smooth running action
• Available in 18" to 30" lengths
• 16 (5/8") to 19 (3/4") drawer thickness
Install with #6 x 5/8" Flat Head Wood Screw or #6 x 11.5mm System Screw
Setback on Standard Drawers: 3mm (1/8")
See Locking Device for Inset Drawer Setbacks
NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY
TANDEM plus BLUMOTION concealed runners offer four-dimensional adjustment, elongated holes for depth adjustment, bottom mount holes and exceptional load capacity.
The availability of a wide variety of locking devices, rear mounting brackets, sockets and templates make installation virtually effortless.
These concealed runners are the perfect solution for virtually any drawer. Kitchens, vanities, closets, home office and furniture all benefit from the smooth running and soft closing action of TANDEM plus BLUMOTION.
The customer only sees the beauty of the wood drawers while experiencing the quality of motion and soft closing they have come to expect from Blum products.
Features:
• Four-dimensional adjustment
• Elongated holes for depth adjustment
• 150 lb static load capacity
Description:
• Full extension concealed runners
• Frameless or blocked-out face frame cabinets
• BLUMOTION soft closing
• TANDEM smooth running action
• Available in 18" to 30" lengths
• 16 (5/8") to 19 (3/4") drawer thickness
Install with #6 x 5/8" Flat Head Wood Screw or #6 x 11.5mm System Screw
Setback on Standard Drawers: 3mm (1/8")
See Locking Device for Inset Drawer Setbacks
NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY
This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
This product can expose you to chemicals including Lead, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 6 |
| Length | |
| Finish | Zinc |
| Drawer Length | 21" |
| Closing Type | Soft-Closing |
| Model | Tandem Plus 569F |
| Load Capacity | 150lb |
| Travel | Full Extension |
| Product Type | Undermount Drawer Slide |
| Left or Right | Both (Pair) |
| Cabinet Type | |
| Mounting Type | Undermount |
| Material | Steel |
| Slide Type | |
| Height | |
| Certifications | |
| Width | |
| Material Thickness | 5/8" to 3/4" |
| Cabinet Width | |
| Thickness | |
| Overlay |
