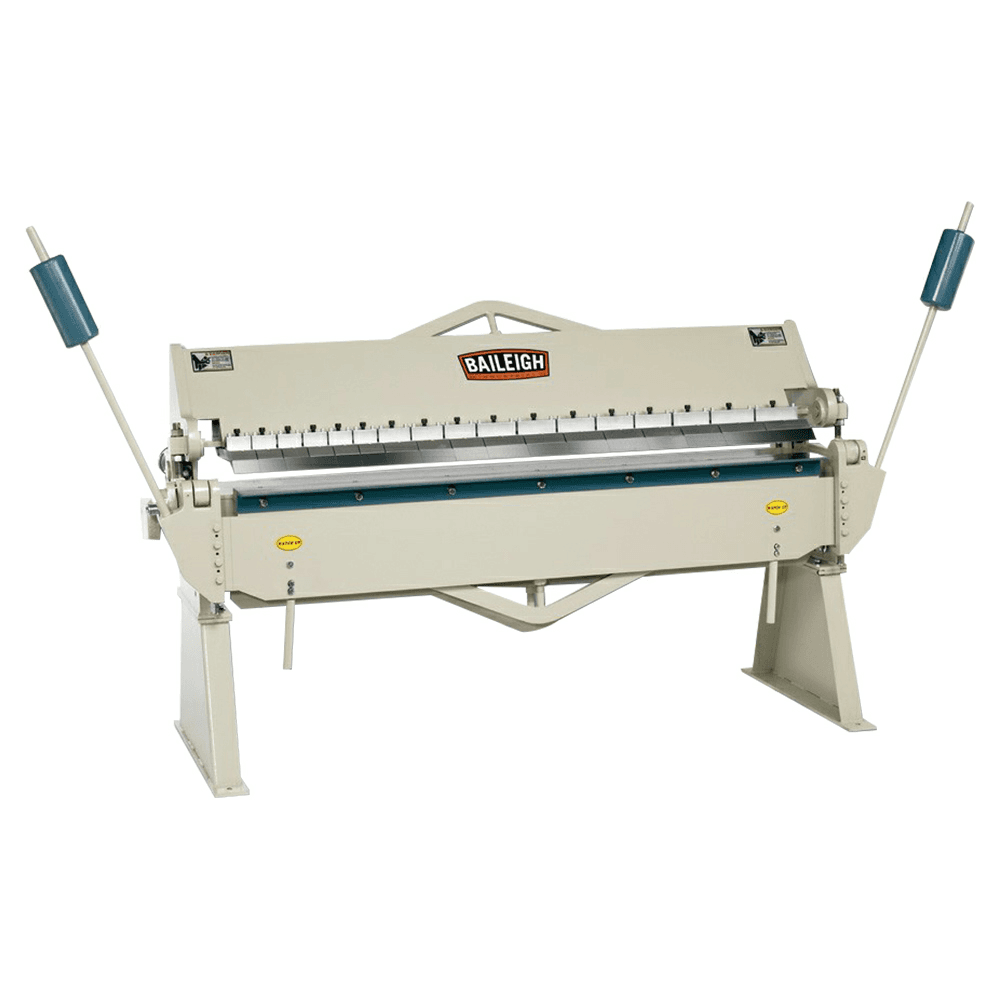

Baileigh BB-7212 Manually Operated Box/Pan Brake
This item may incur additional shipping costs and lead times.
Product Details
This 6-foot Box brake offers a happy medium between our 4-foot BB-4812 and our 8-foot BB-9612. With a welded steel frame, the BB-7212 offers years of hassle-free productivity. Features: • Bends 12-gauge mild steel over its full 6-foot (72") length • Maximum bend angle of 135° • Comes standard with 17 hardened fingers of varying sizes (6 fingers of 3", 3 of 4", 6 of 5", and 2 of 6") • 3-piece finger design allows for a 6" box depth • You can set up a long straight brake or a segmented one for boxes or pans • 2 counterbalance weights make it easy to bend at maximum capacity and reduce operator strain • Electro-welded and truss-supported steel frame prevents distortion or twisting and produces high-quality bends • Heavy-duty steel floor stand puts the beam at optimal working height • Recommended for: Smaller HVAC or fabrication shops that need a metal brake in a manageable, relatively compact size
Specifications
| Box Quantity | 1 |
| Approx. Pressure (Tons) | |
| Mild Steel Capacity (Gauge) | 12 |
| Motor (HP) | |
| Nose Radius | |
| Number and Width of Fingers | |
| Overall Dimensions (L x W x H) | |
| Overall Length | 72" |
| Product Type | Box/Pan Sheet Metal Brakes |
| Short Description | *12-gauge mild steel capacity *6-foot length *Bends up to 135° *Includes 17 fingers, from 3" and 6" |
| Maximum Lift of Beam | |
| Maximum Box Depth | 6" |
| Beam Adjustment (Front to Rear) | 1" |
| Bending Length Capacity | |
| Configurable Base Item | |
| Configurator Option Type | |
| Finger Nose Angle (Deg.) | |
| Input Power | Manual |
| Max. Bend (Deg.) | 0 - 135° |
| Max. Clamping Bar Lift | |
| Table Length |
