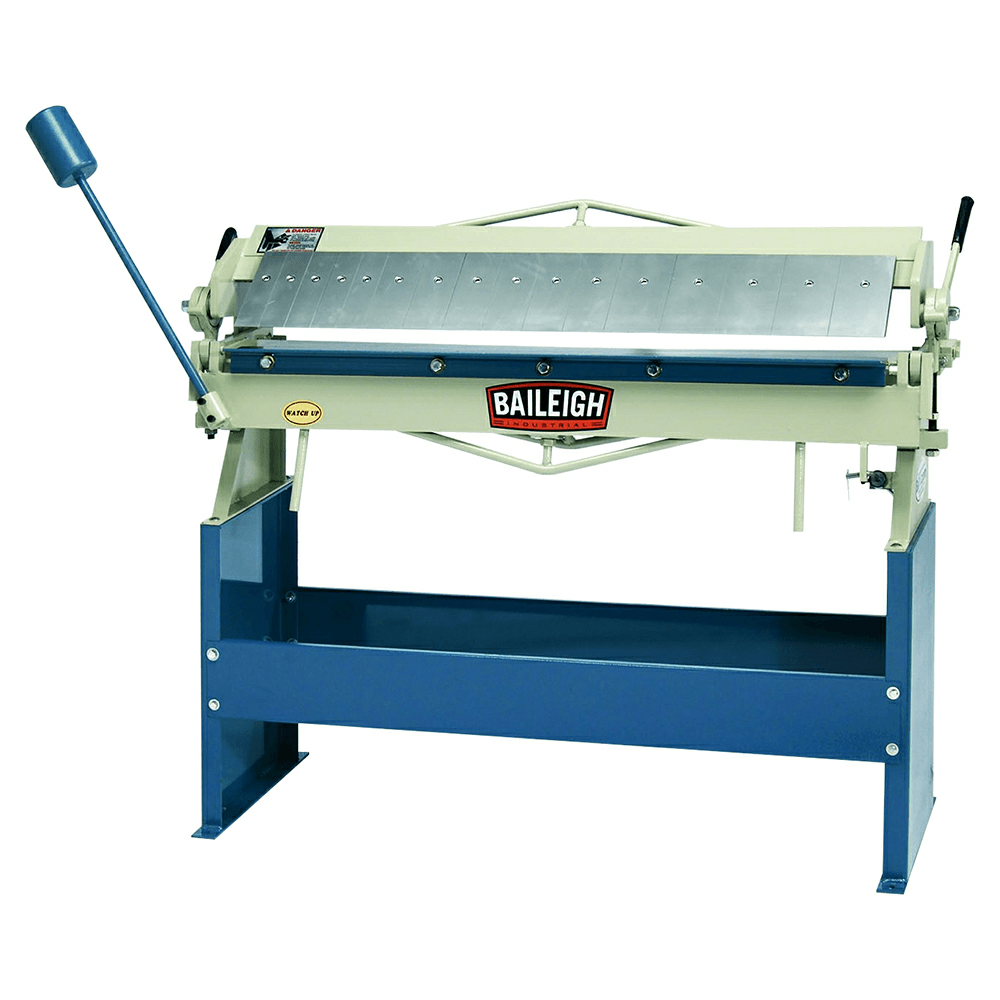

Baileigh BB-4816 Heavy Duty Box/Pan Brake
This item may incur additional shipping costs and lead times.
Product Details

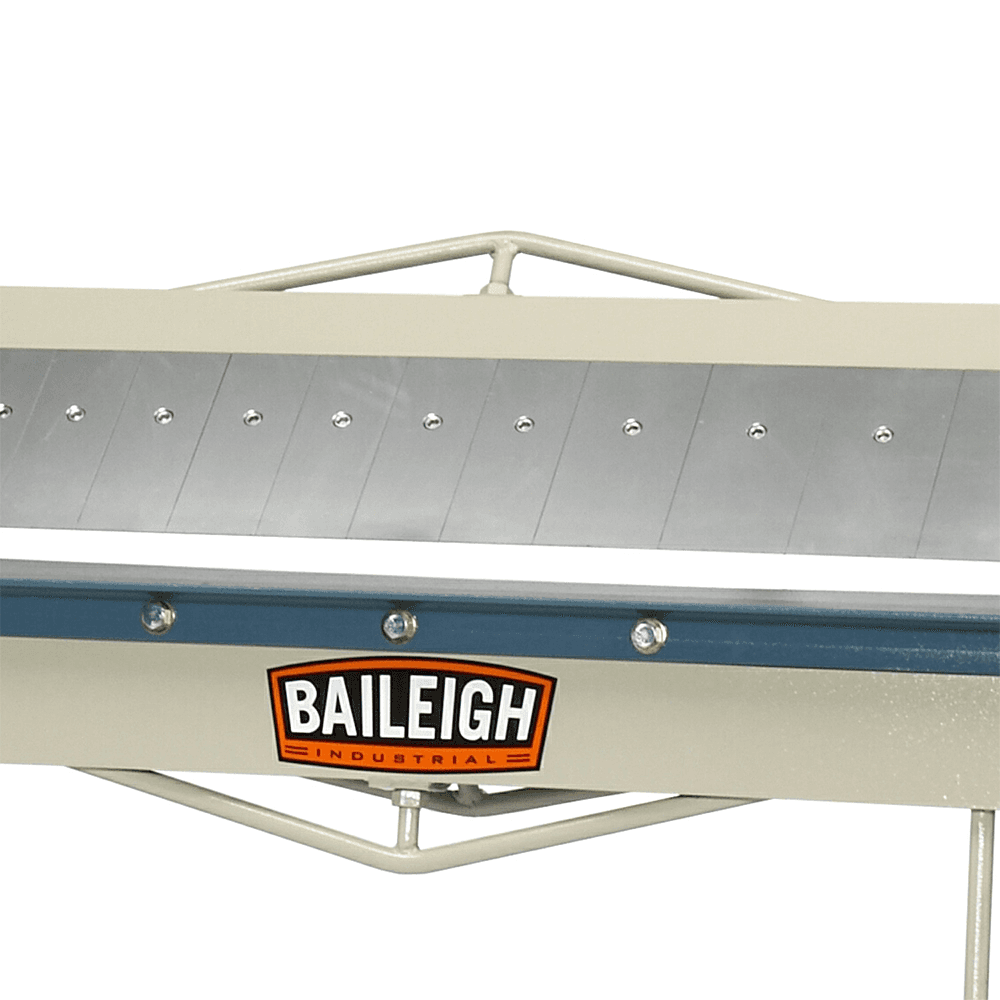

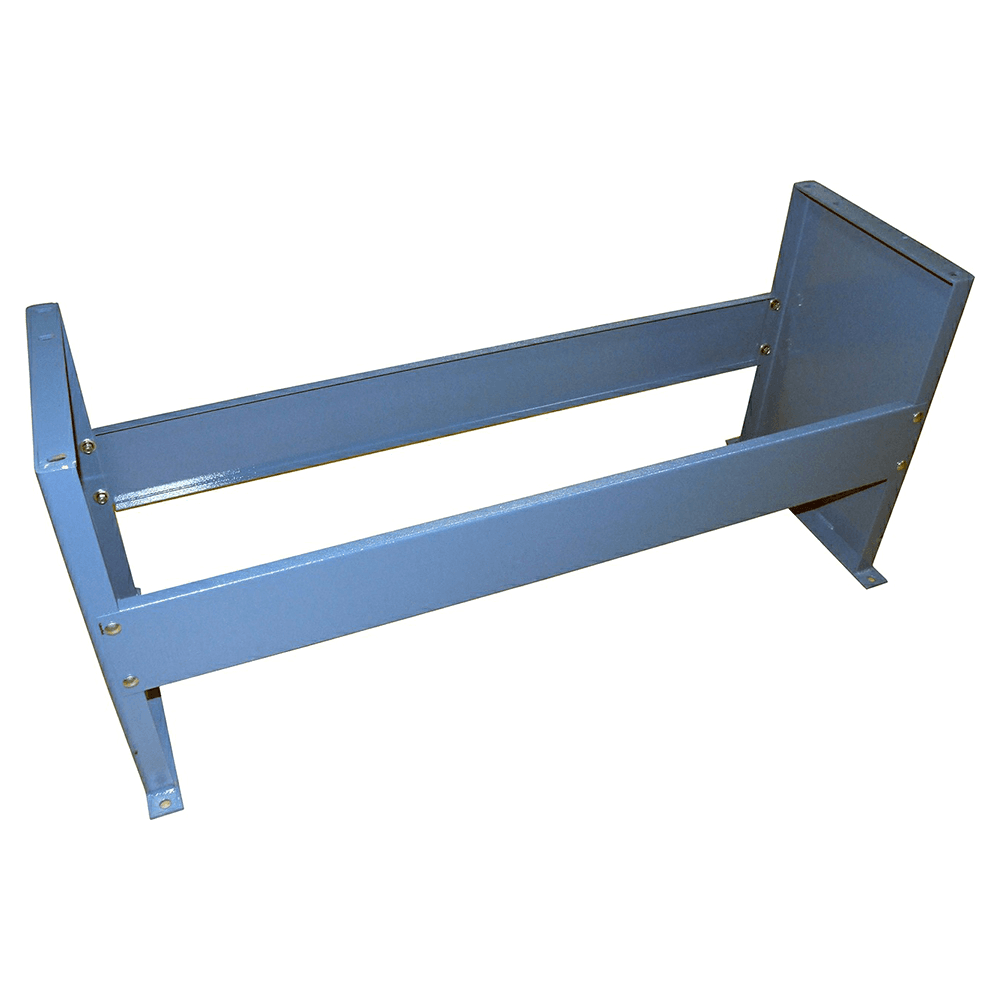

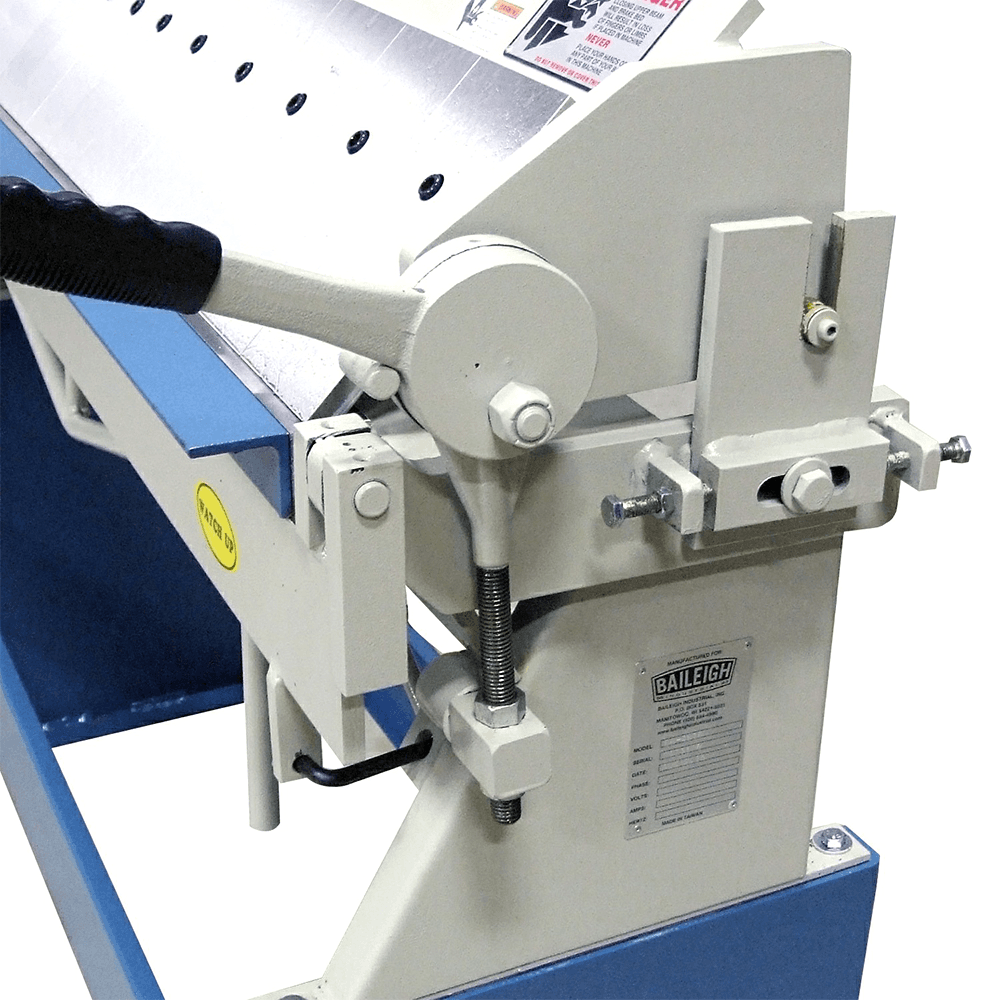

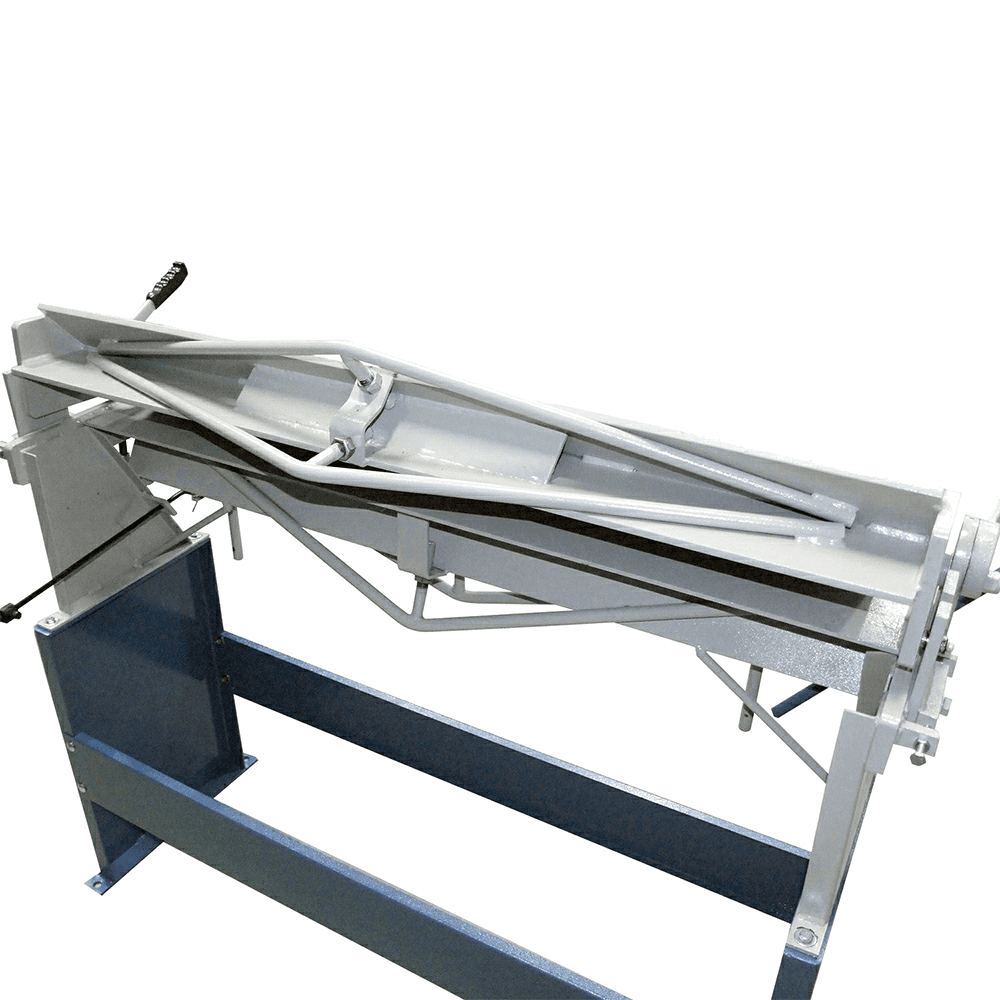

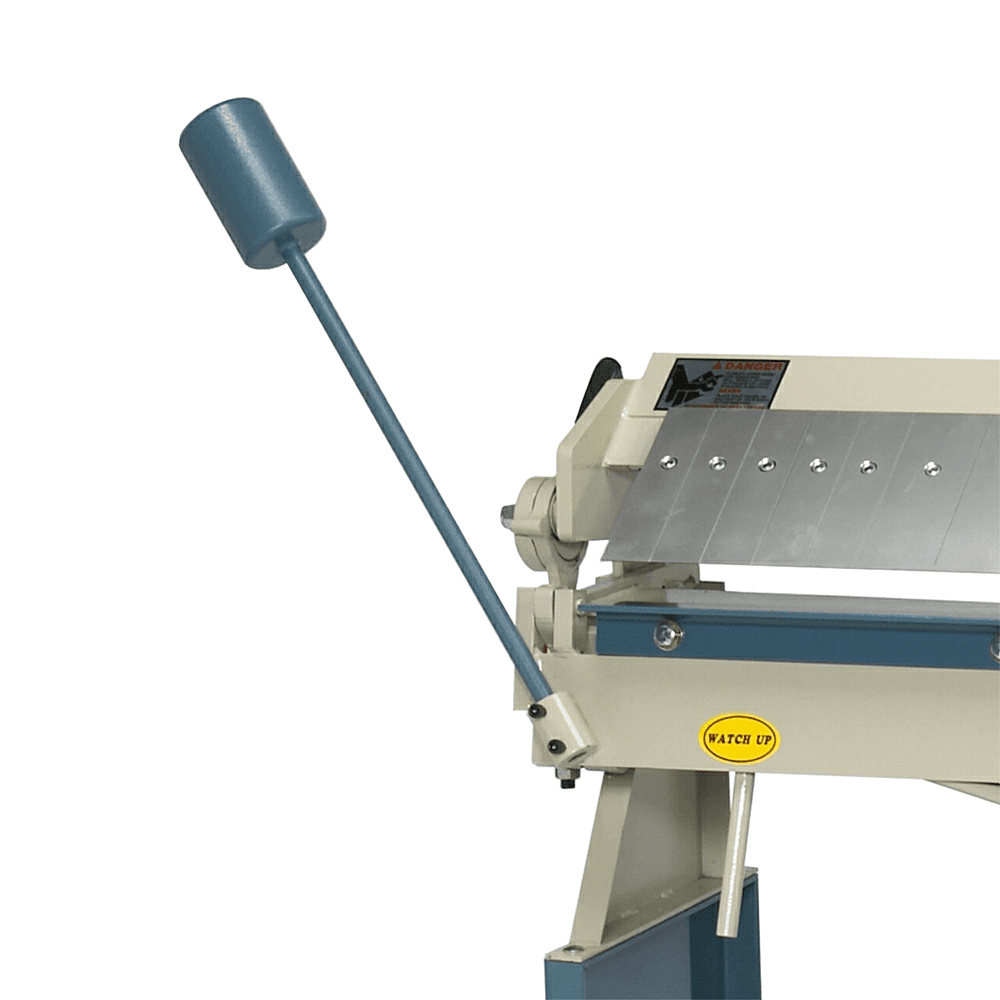

With a rigid steel beam and apron, this top-of-the-line box and pan brake bends sheet metal to perfect angles every time purchase this heavy-duty box and pan brake. Features: • 4-foot (48") length • 16-gauge mild steel maximum capacity • Angle indicator helps you make repeatable bends • Heavy counterbalance weight will save time and energy for the operator, especially at full capacity • Includes 16 hardened fingers of varying lengths, so you can make many different sizes of boxes and pans imaginable • Comes standard with a rugged steel stand or can be mounted to any bench • Fully welded main beam and apron maintain accuracy and reduce the chances of material deformation • Recommended for: Any fabrication shop that needs to bend light-gauge sheet metal
Specifications
| Box Quantity | 1 |
| Approx. Pressure (Tons) | |
| Mild Steel Capacity (Gauge) | 16 |
| Motor (HP) | |
| Nose Radius | |
| Number and Width of Fingers | |
| Overall Dimensions (L x W x H) | |
| Overall Length | 48" |
| Product Type | Box/Pan Sheet Metal Brakes |
| Short Description | *Manual box brake *16-gauge mild steel capacity *4-foot length *Includes bend angle indicator |
| Maximum Lift of Beam | 1.75" |
| Maximum Box Depth | 4" |
| Beam Adjustment (Front to Rear) | 0.625" |
| Bending Length Capacity | 48" |
| Configurable Base Item | |
| Configurator Option Type | |
| Finger Nose Angle (Deg.) | |
| Input Power | Manual |
| Max. Bend (Deg.) | |
| Max. Clamping Bar Lift | |
| Table Length |
