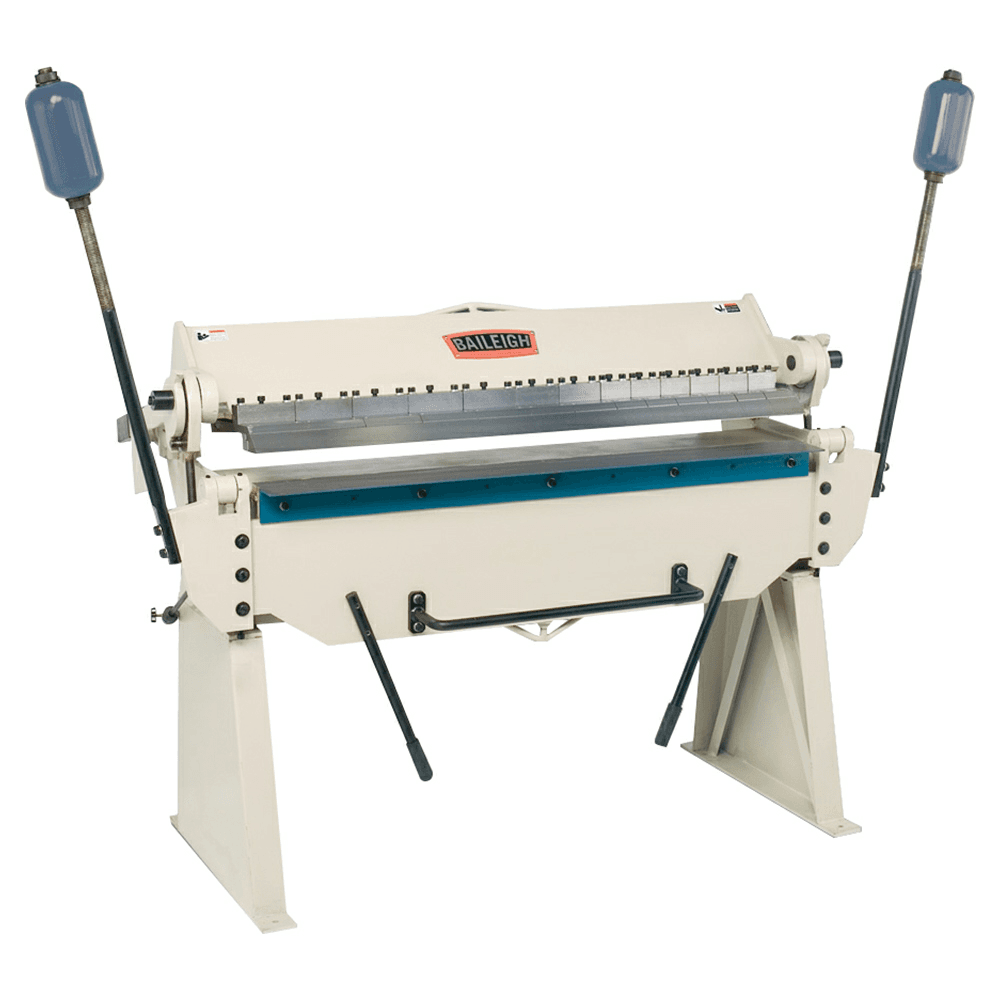

Baileigh BB-4814 Box Brake
This item may incur additional shipping costs and lead times.
Product Details

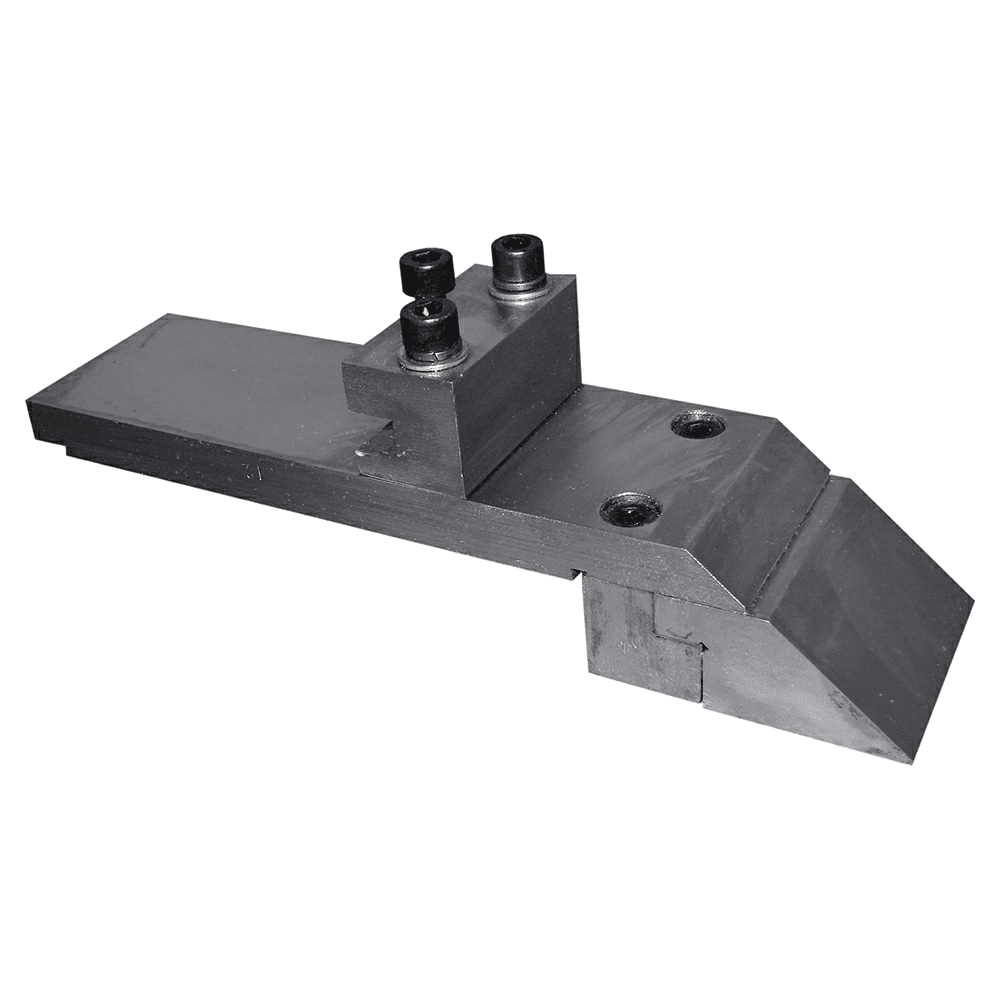

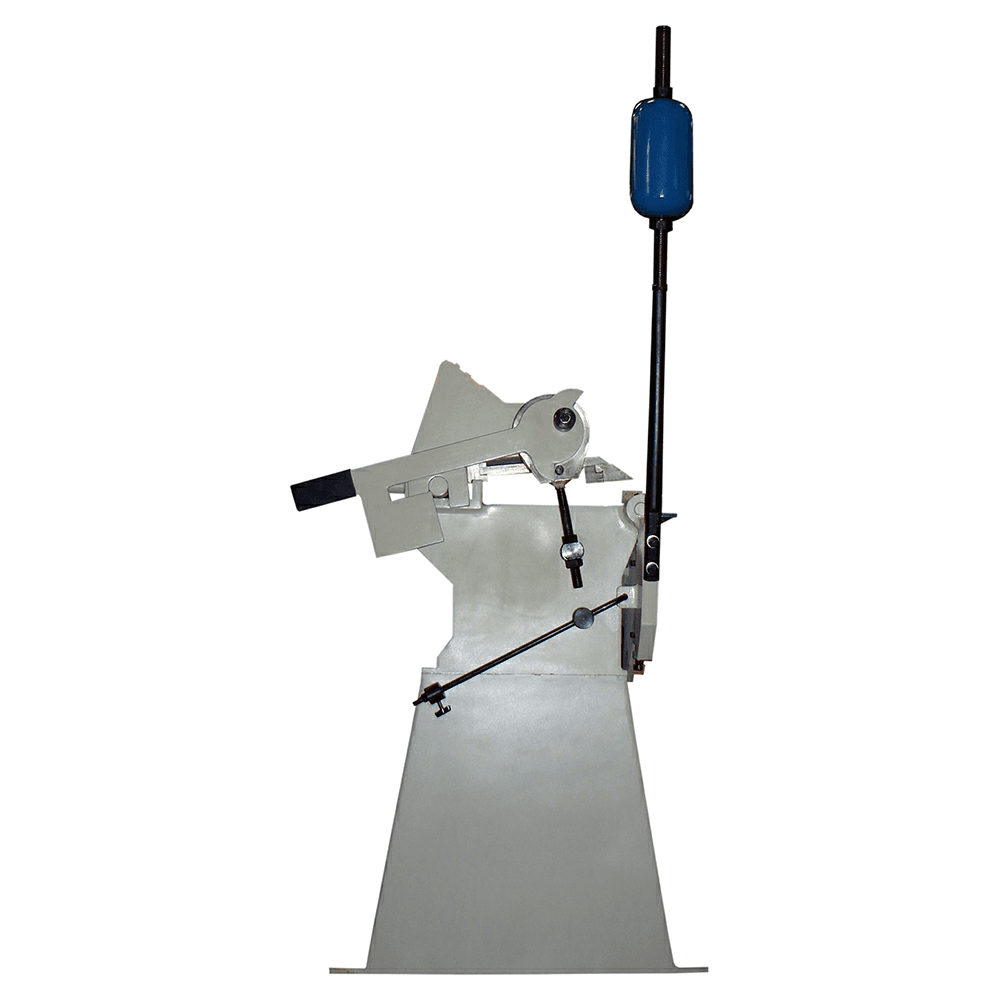

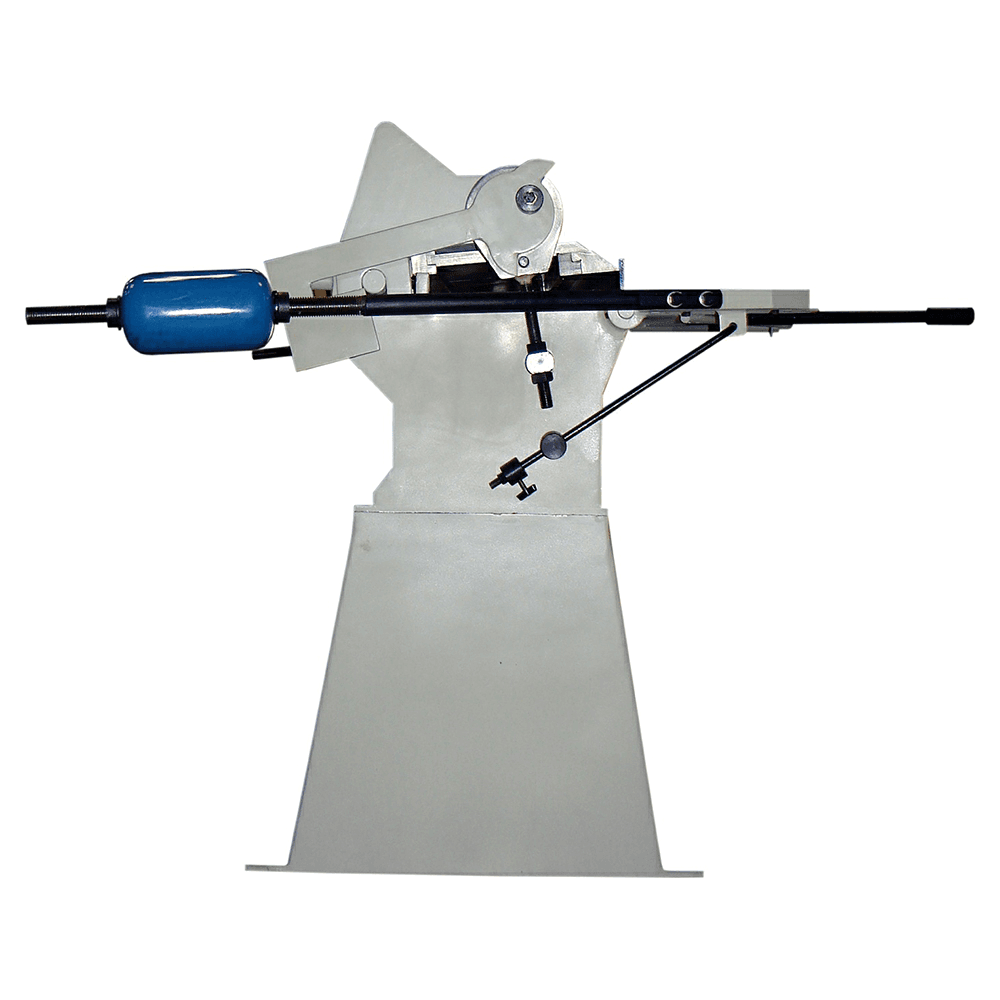

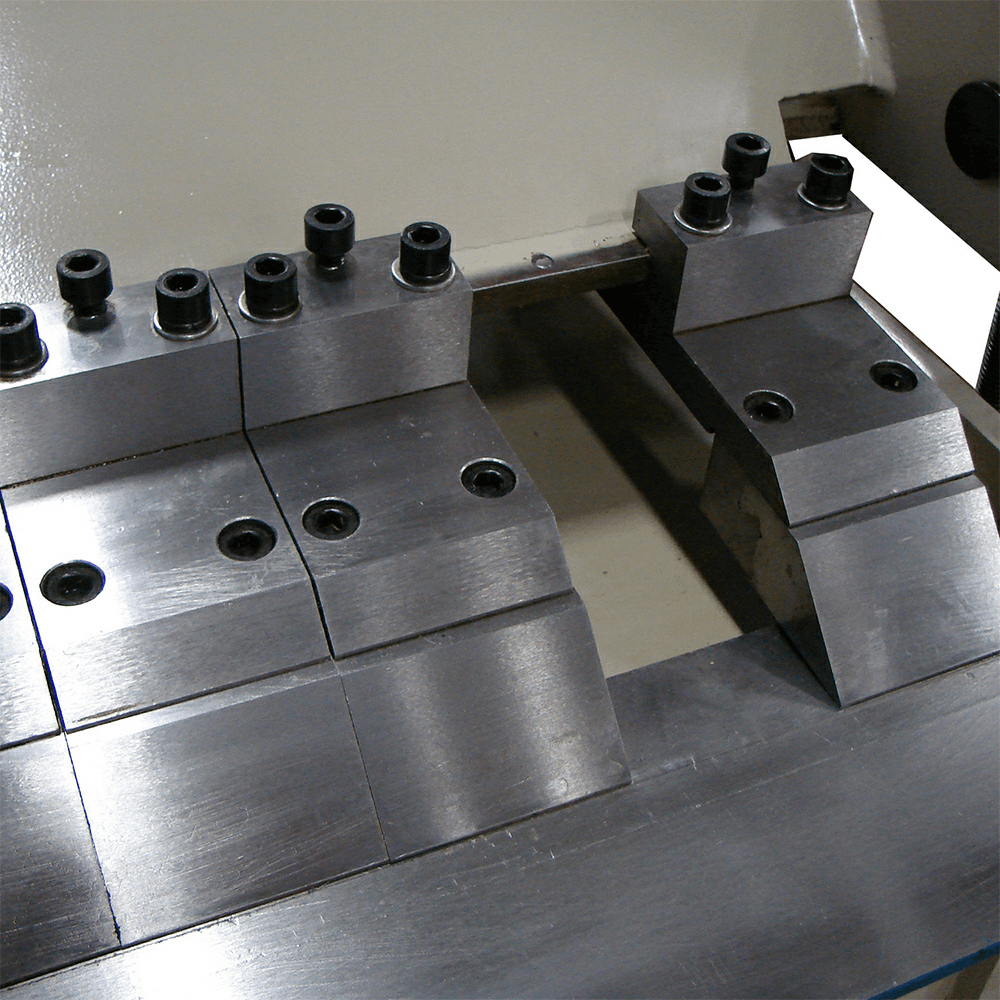

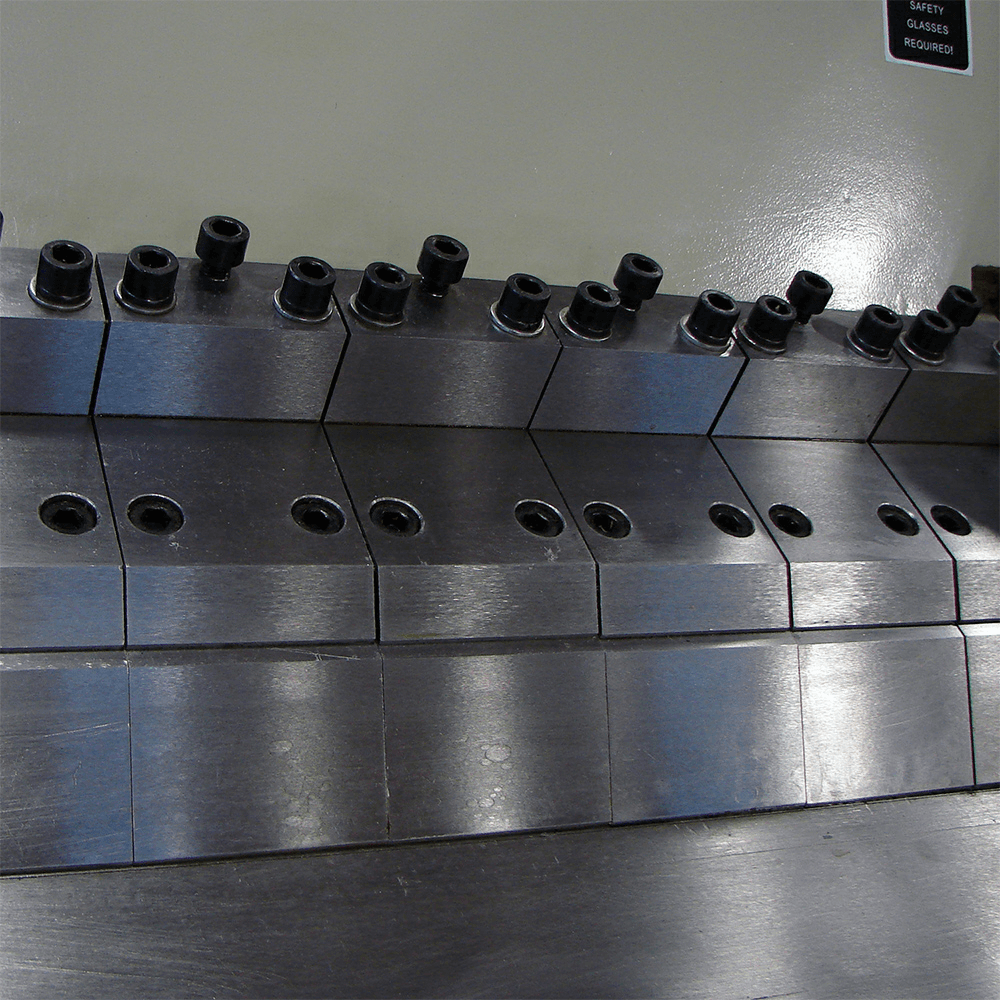

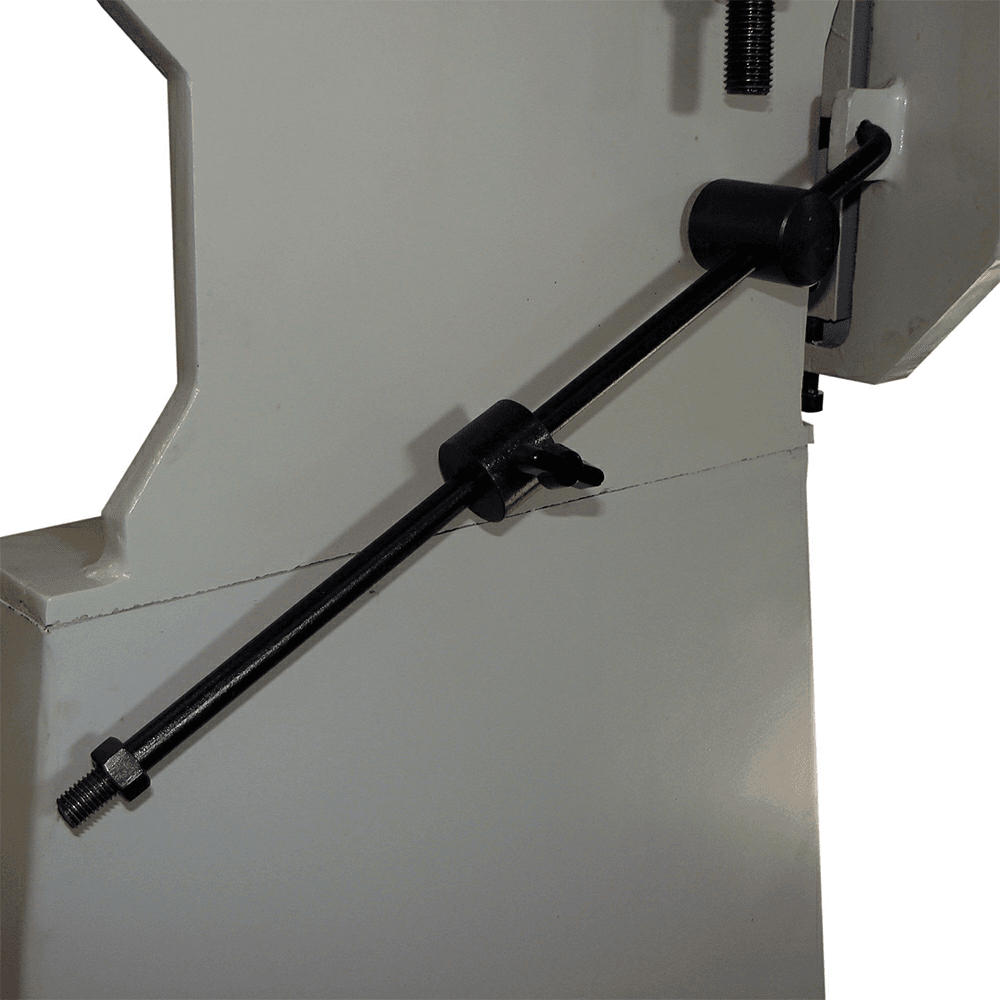

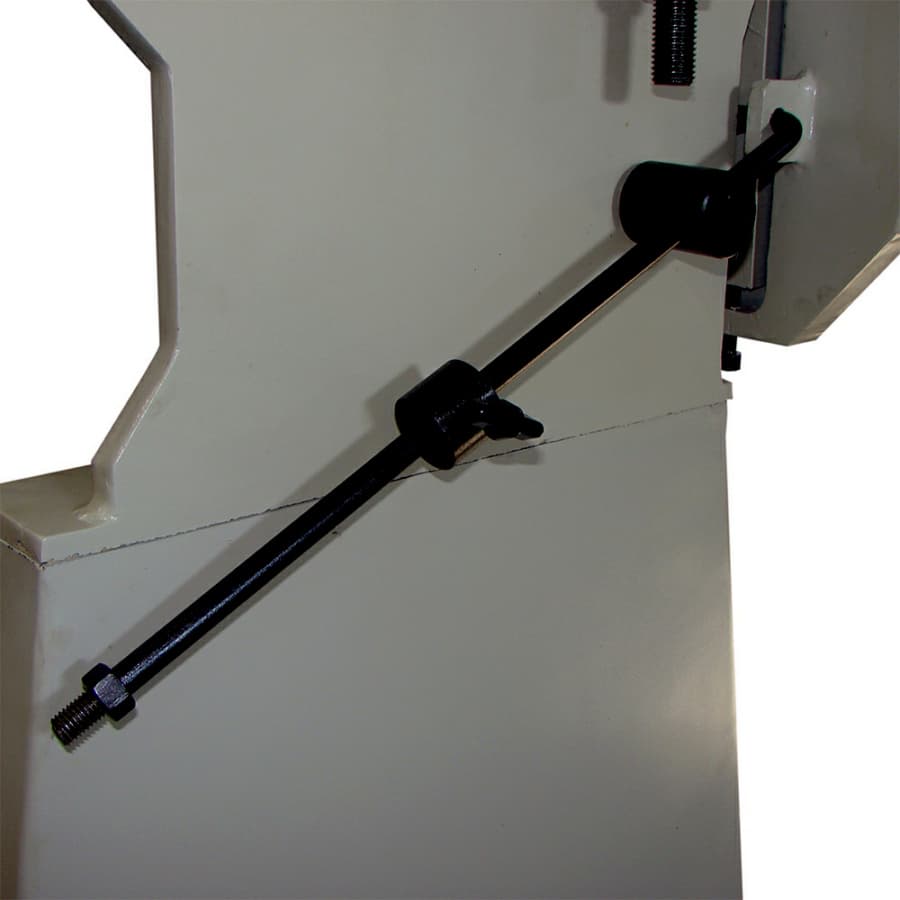

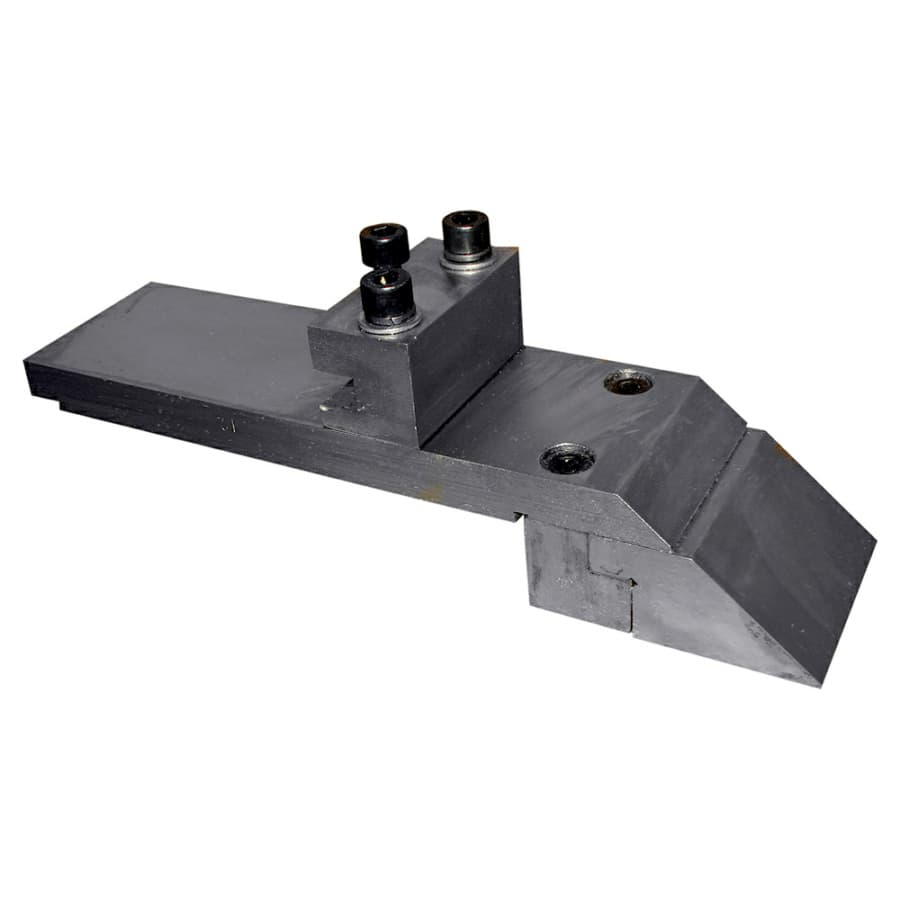

With its heavy steel construction, this 4-foot box and pan brake offers a great value for any shop. Features: • Maximum capacity of 14-gauge mild steel across its entire 48" length • Bends up to 135° • 2 heavy counterweights save time and energy for the operator with each lift and drop • Includes 9 hardened fingers to make many different sizes of boxes and pans, with a maximum box depth of 4" • Comes with an integrated floor stand, reinforced, and positioned for optimum balance • Fully welded steel framework prevents deformation and maintains accuracy when bending at full capacity • Offers a more affordable alternative to our 12-gauge line of metal brakes
Downloads
Specifications
| Box Quantity | 1 |
| Approx. Pressure (Tons) | |
| Mild Steel Capacity (Gauge) | 14 |
| Motor (HP) | |
| Nose Radius | |
| Number and Width of Fingers | |
| Overall Dimensions (L x W x H) | |
| Overall Length | 48" |
| Product Type | Box/Pan Sheet Metal Brakes |
| Short Description | *Manual finger brake *14-gauge mild steel capacity *4-foot length *Includes 11 fingers |
| Maximum Lift of Beam | |
| Maximum Box Depth | 4" |
| Beam Adjustment (Front to Rear) | |
| Bending Length Capacity | 48" |
| Configurable Base Item | |
| Configurator Option Type | |
| Finger Nose Angle (Deg.) | |
| Input Power | Manual |
| Max. Bend (Deg.) | |
| Max. Clamping Bar Lift | |
| Table Length |
