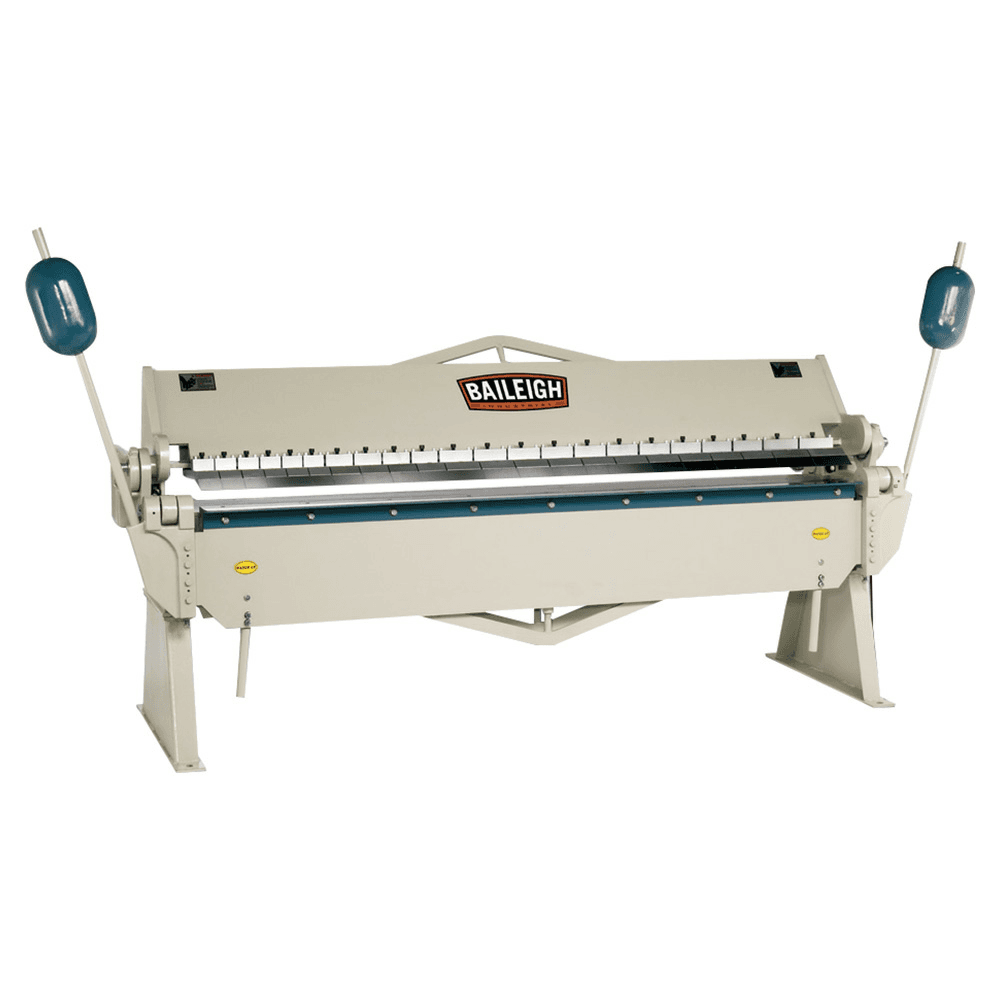

Baileigh BB-9612 Box/Pan Brake
This item may incur additional shipping costs and lead times.
Product Details
This Box brake can bend a 4-foot x 8-foot sheet of 12 gauge mild steel the long way. The BB-9612's steel framework ensures decades of crisp bends and reliable production. Features: • 8-foot (96") bending width with a bend angle of up to 135° • Maximum capacity of 12-gauge mild steel and 16-gauge stainless steel • 22 finger assortments of varying sizes (6 fingers of 3", 4 of 4",10 of 5", 2 of 6") • Maximum box depth of 6" with a heavy framework which weighs an impressive 3200lbs • Hardened fingers and bending rail will produce extremely straight and tight bends, even when working with stainless steel • Apron side shafts ride in oil able bearings that improve tolerance and make the apron last longer • Heavy truss rods reinforce the rigidly built apron and help it withstand deflection • 2 massive bending apron counterweights keeps fatigue low, even at full capacity • Mounted on a solid floor stand, raised to the ideal height, which improves efficiency and reduces operator fatigue • Electro-welded steel construction withstands bending at maximum capacity, day in and day out, for decades of quality bends
Downloads
Specifications
| Box Quantity | 1 |
| Approx. Pressure (Tons) | |
| Mild Steel Capacity (Gauge) | 12 |
| Motor (HP) | |
| Nose Radius | |
| Number and Width of Fingers | |
| Overall Dimensions (L x W x H) | |
| Overall Length | 96" |
| Product Type | Box/Pan Sheet Metal Brakes |
| Short Description | *Manual box brake *12-gauge mild steel capacity *8-foot length *Includes 22 fingers, from 3" to 6" |
| Maximum Lift of Beam | |
| Maximum Box Depth | 6" |
| Beam Adjustment (Front to Rear) | 1" |
| Bending Length Capacity | |
| Configurable Base Item | |
| Configurator Option Type | |
| Finger Nose Angle (Deg.) | |
| Input Power | Manual |
| Max. Bend (Deg.) | 0 - 135° |
| Max. Clamping Bar Lift | |
| Table Length |
