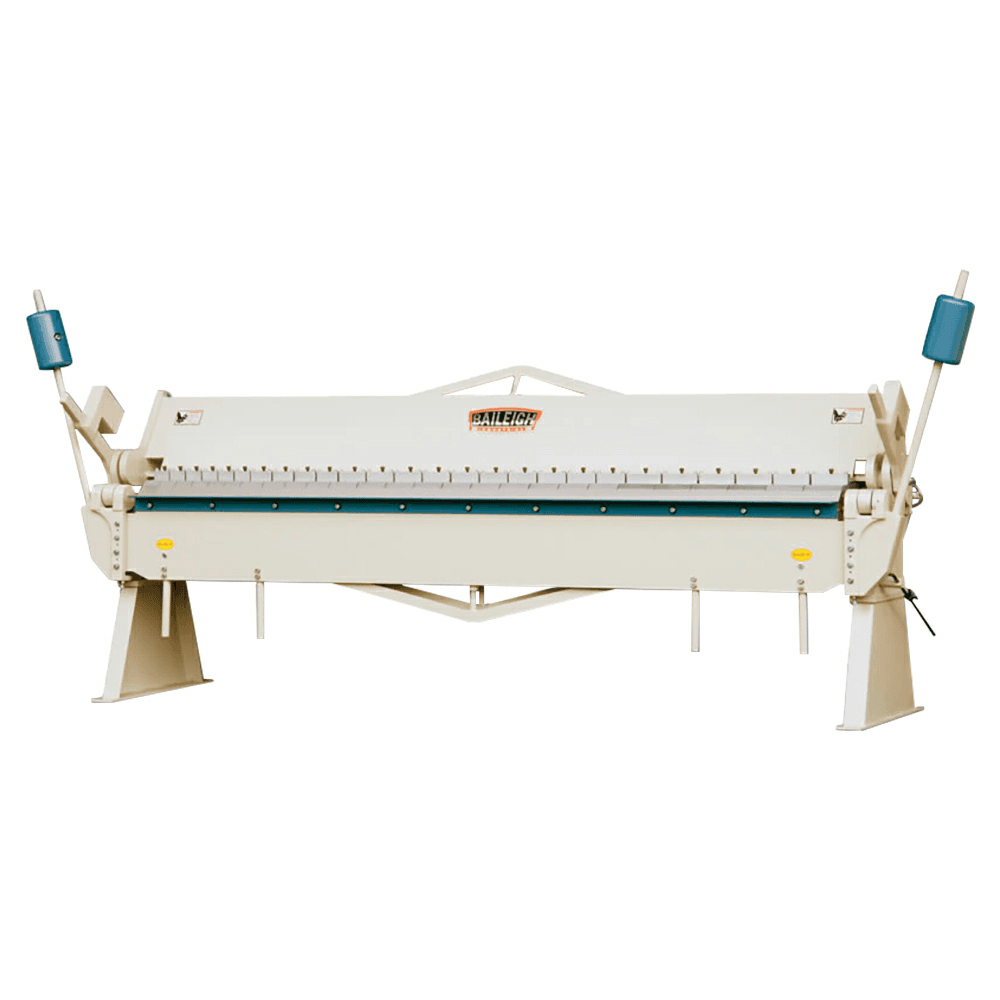

Baileigh BB-12016 Box/Pan Brake
This item may incur additional shipping costs and lead times.
Product Details
The Box brake, designed to bend 16-gauge (and lighter) sheet metal, will produce crisp bends over many years of use. Features: • Bends 16-gauge mild steel across its entire 10-foot length • Maximum bend angle of 135° • 26 individual fingers of varying lengths (6 of 3", 4 of 4",10 of 5", 6 of 6") allow you to make boxes or pans of many sizes • 6" maximum box depth • Bending leaf shafts ride in precise oil able for better bend tolerances and less operator fatigue-unlike many other box and pan brakes on the market • 2 large counterweights make the bending process easier and reduce physical strain on the operator • Electro-welded steel framework and support rods keep alignment in place, even at full capacity
Downloads
Specifications
| Box Quantity | 1 |
| Approx. Pressure (Tons) | |
| Mild Steel Capacity (Gauge) | 16 |
| Motor (HP) | |
| Nose Radius | |
| Number and Width of Fingers | 26 ea. 3" to 6" |
| Overall Dimensions (L x W x H) | |
| Overall Length | 120" |
| Product Type | Box/Pan Sheet Metal Brakes |
| Short Description | *Manual finger brake *16-gauge mild steel capacity *10-foot length *Includes 26 fingers, from 3" to 6" |
| Maximum Lift of Beam | |
| Maximum Box Depth | 6" |
| Beam Adjustment (Front to Rear) | 1" |
| Bending Length Capacity | 120" |
| Configurable Base Item | |
| Configurator Option Type | |
| Finger Nose Angle (Deg.) | |
| Input Power | Manual |
| Max. Bend (Deg.) | |
| Max. Clamping Bar Lift | |
| Table Length |
