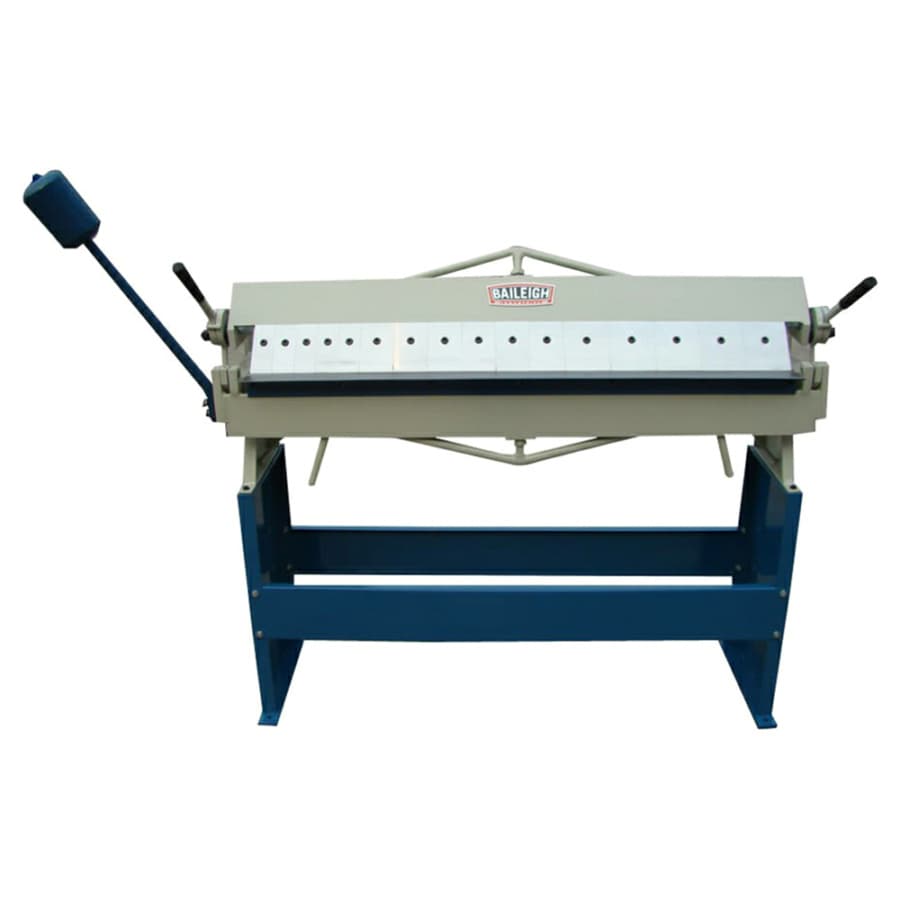

Baileigh BB-4816E Sheet Metal Brake
This item may incur additional shipping costs and lead times.
Product Details

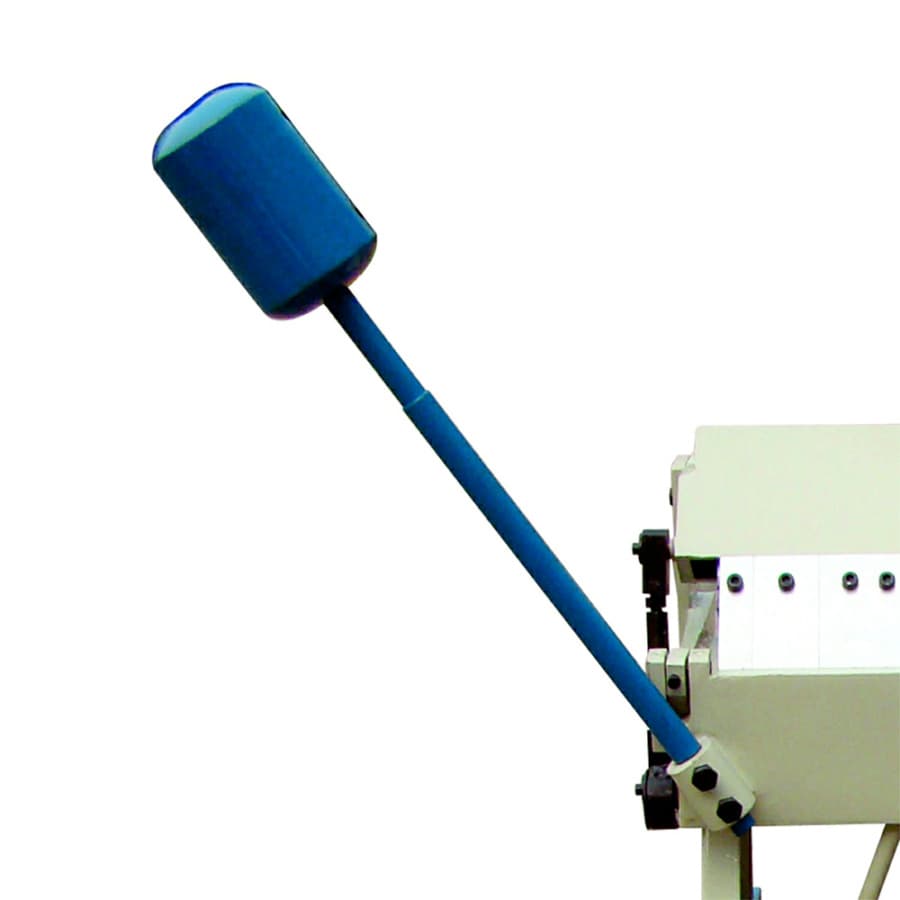

With a fully-welded steel plate framework, this sheet metal Box brake offers budget-friendly durability that you won't get from many competing metal brakes. Features: • Maximum capacity of 16-gauge mild steel • Bends up to 135° across the brakes entire 48" (4-foot) length even at full capacity • Includes 16 hardened fingers of varying lengths to make many sizes of boxes and pans • Counterweight apron lift assist reduces your effort when bending at full capacity • Finger setback adjustment lets you adjust for the thickness of the material • Comes standard with sturdy floor stand • Recommended for: Hobbyists, light sheet metal fabricators, or educational institutions
Downloads
Specifications
| Box Quantity | 1 |
| Approx. Pressure (Tons) | |
| Mild Steel Capacity (Gauge) | 16 |
| Motor (HP) | |
| Nose Radius | |
| Number and Width of Fingers | |
| Overall Dimensions (L x W x H) | |
| Overall Length | 48" |
| Product Type | Box/Pan Sheet Metal Brakes |
| Short Description | *Manual box brake *16-gauge mild steel capacity *4-foot length *Includes 16 fingers |
| Maximum Lift of Beam | |
| Maximum Box Depth | 1.5" |
| Beam Adjustment (Front to Rear) | |
| Bending Length Capacity | |
| Configurable Base Item | |
| Configurator Option Type | |
| Finger Nose Angle (Deg.) | |
| Input Power | Manual |
| Max. Bend (Deg.) | |
| Max. Clamping Bar Lift | |
| Table Length |
