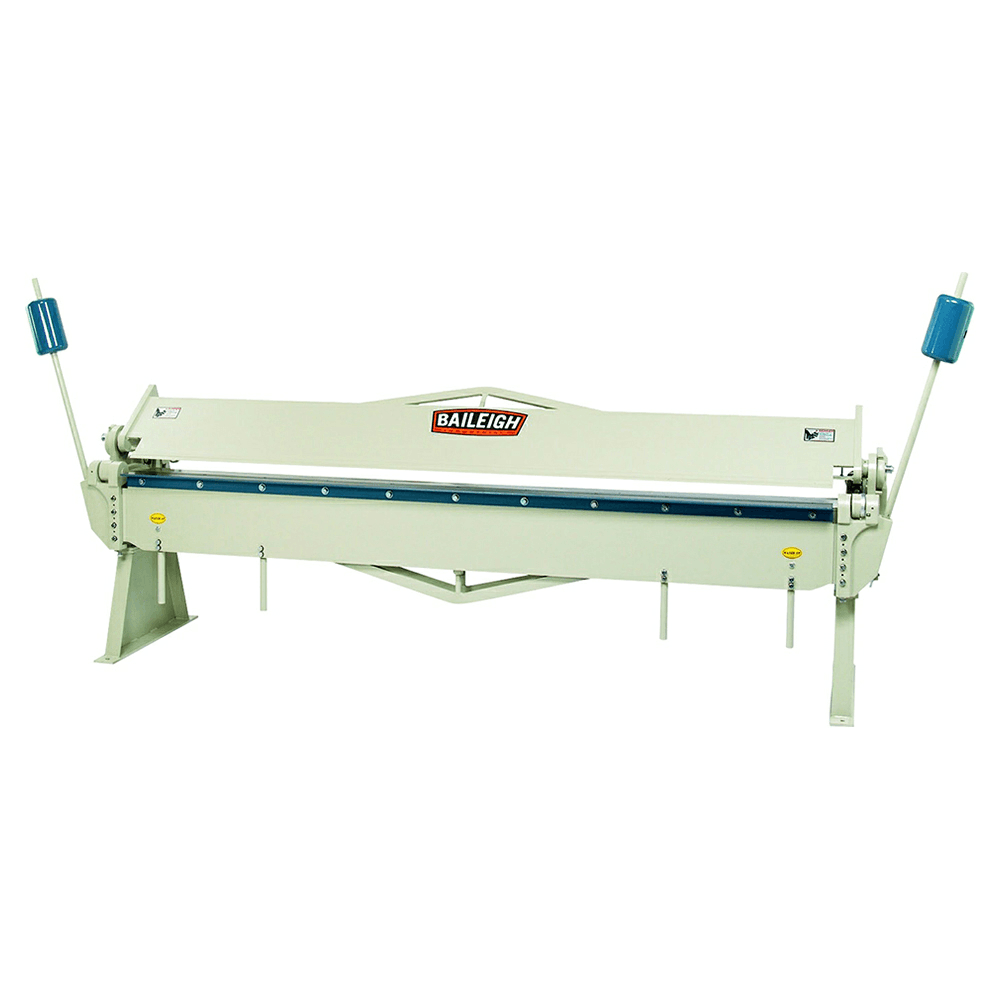

Baileigh HB-12016 Straight Brake
This item may incur additional shipping costs and lead times.
Product Details

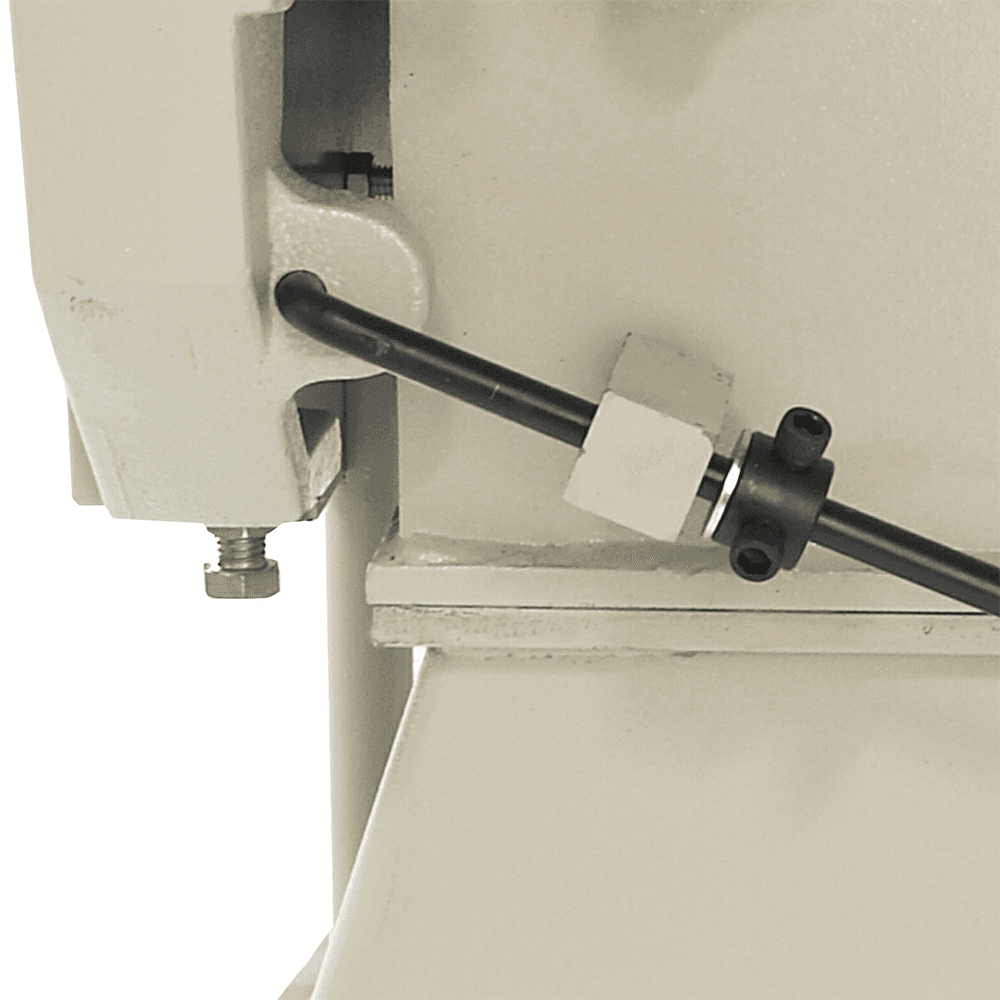

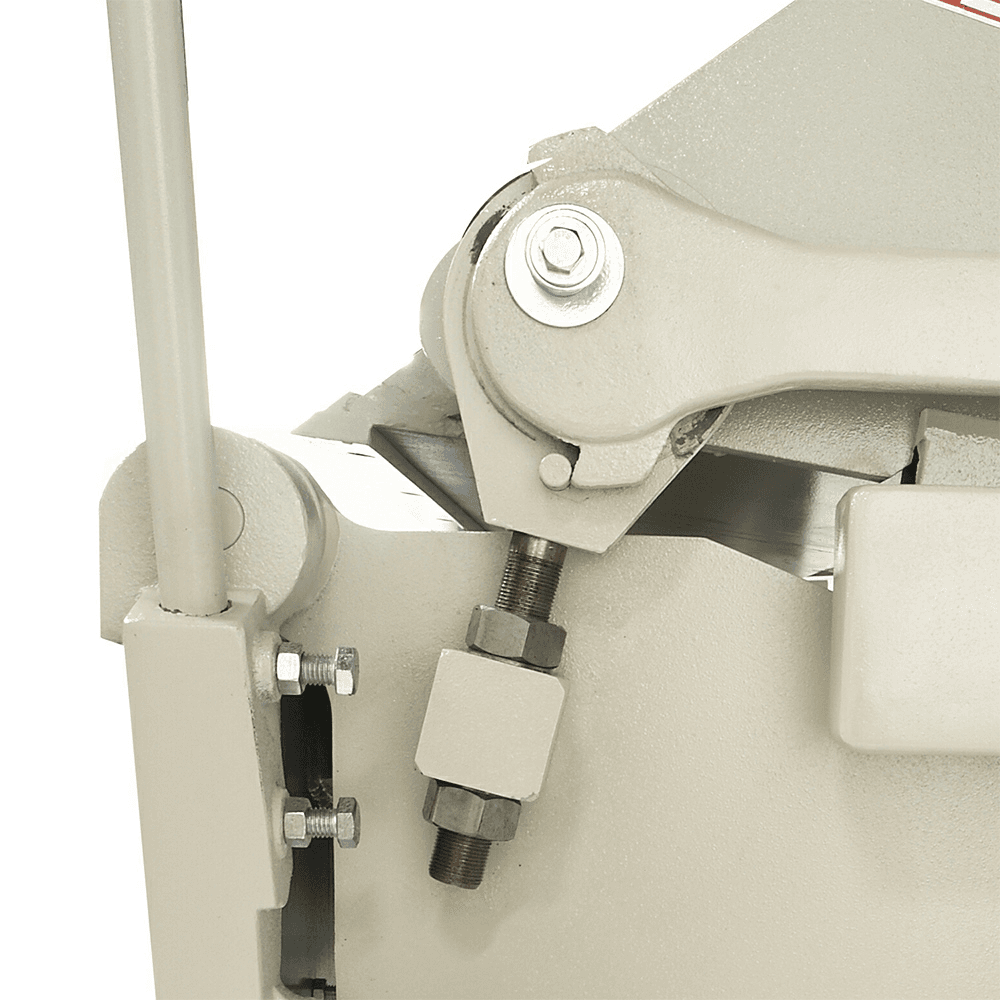

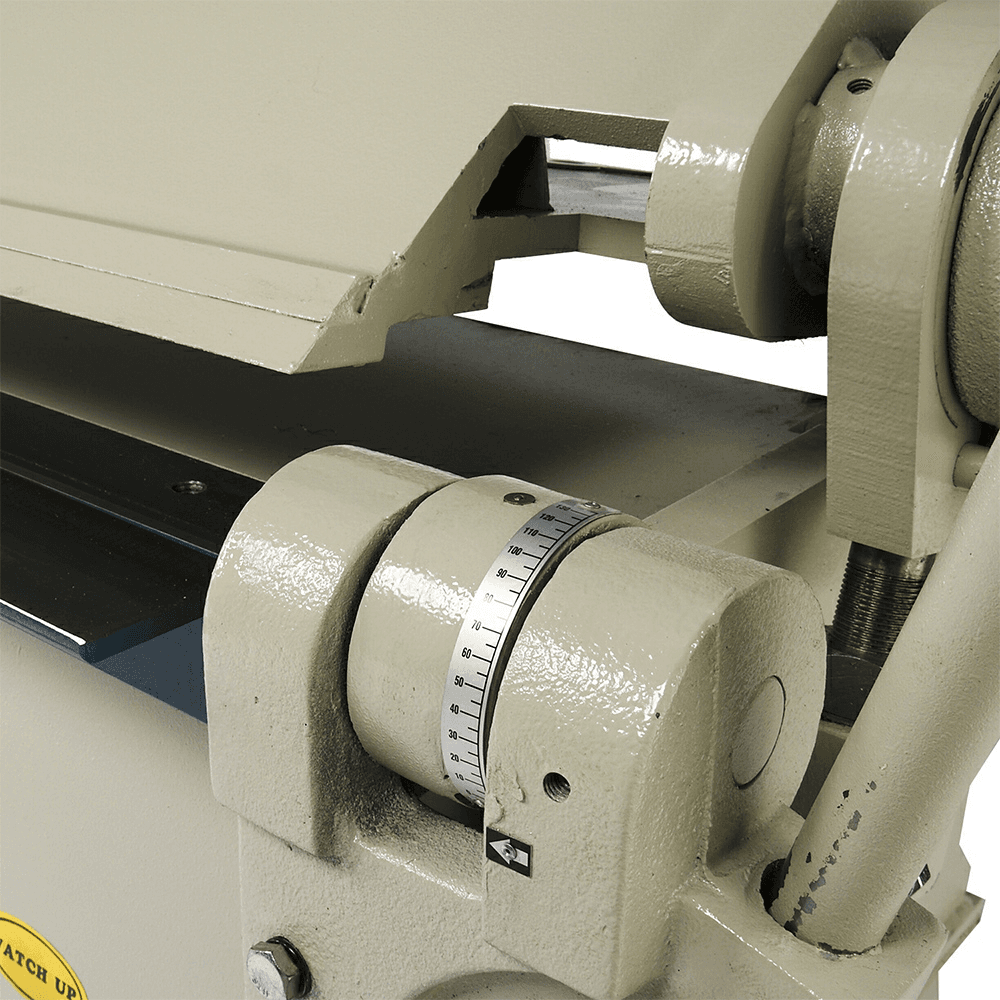

The ability to bend full sheet metal panels is important to a shop's productivity. The HB-12016 sheet metal hand brake can fit an 8-foot sheet corner to corner, opening up wider project possibilities. Features: • Sheet metal hand brake bends16 gauge mild steel across its full 10-foot length (120") • Maximum bend angle of 135° • 2 heavy duty counterweights assist the operator and the reduce effort of bending full sheets • Comes standard with a stop rod to help you easily make repeatable bends for production runs • Top beam and bending leaf made from fully welded plate steel prevents this hand sheet metal bender from flexing and ensures accurate bends • Steel support rods stabilize the machine • Main pivots, supports, and clamp levers are made from high-quality cast iron, then machined to exacting tolerances • Fully welded steel stand can bolt to the floor for even more stability
Downloads
Specifications
| Box Quantity | 1 |
| Approx. Pressure (Tons) | 120 Ton |
| Mild Steel Capacity (Gauge) | 16 |
| Motor (HP) | |
| Nose Radius | |
| Number and Width of Fingers | |
| Overall Dimensions (L x W x H) | |
| Overall Length | 120" |
| Product Type | Straight Sheet Metal Brakes |
| Short Description | *Manual sheet metal brake *16-gauge mild steel capacity *10-foot length *Bends up to 135° |
| Maximum Lift of Beam | |
| Maximum Box Depth | |
| Beam Adjustment (Front to Rear) | 1" |
| Bending Length Capacity | |
| Configurable Base Item | |
| Configurator Option Type | |
| Finger Nose Angle (Deg.) | |
| Input Power | Manual |
| Max. Bend (Deg.) | |
| Max. Clamping Bar Lift | |
| Table Length |
