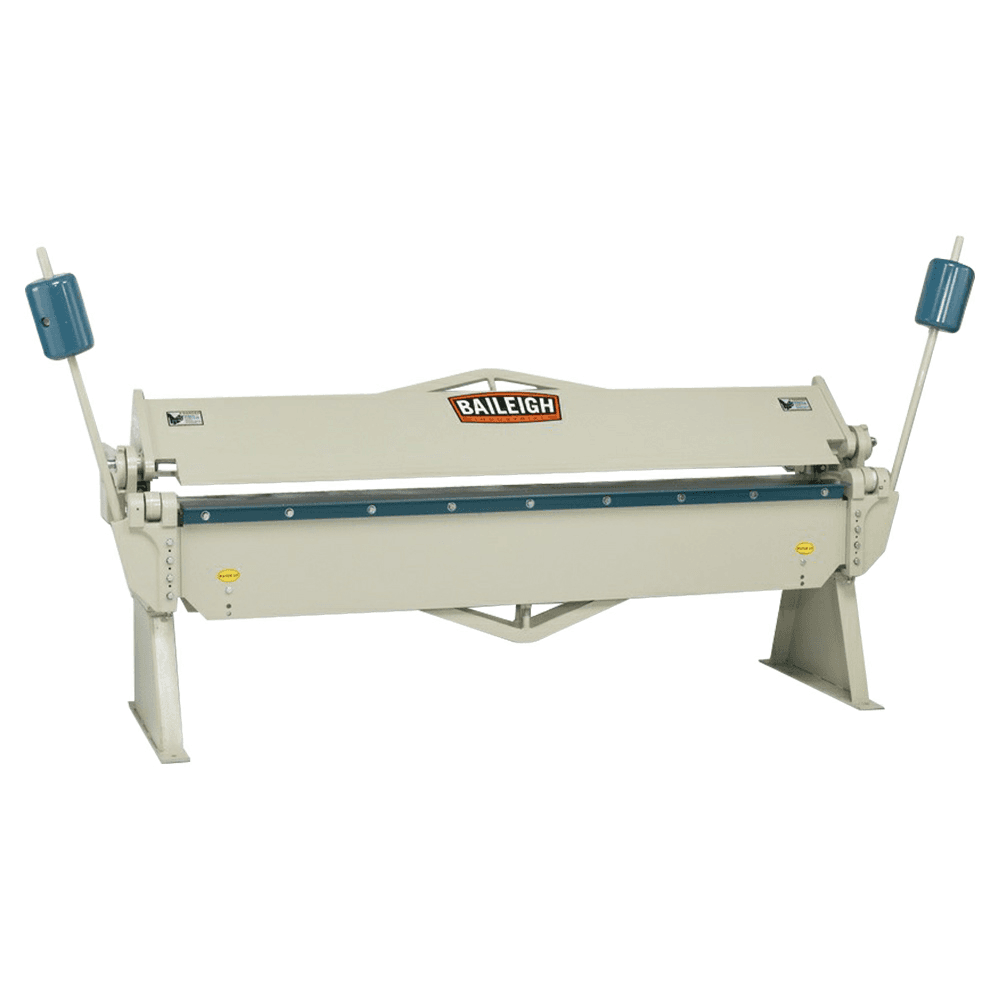

Baileigh HB-9612 Sheet Metal Leaf Brake
This item may incur additional shipping costs and lead times.
Product Details
Working with heavy-gauge sheet metal. This manual brake's top beam and support trusses-made of fully-welded steel plate-will keep bends accurate at full capacity. Features: • Bends 12-gauge (or lighter) mild steel • 8 feet (96") long • Maximum bend angle of 135° • Blade, precisely machined to exacting tolerances, produces the tightest possible bend radius • Comes standard with a stop rod, so you can easily make repeated parts and bends • Plate steel bending leaf, with integrated side pivots, uses bushings to help the machine last for many years and wear well • 2 heavy duty counterweights allow you to effortlessly bend at maximum capacity • Steel floor stand sets the beam at a comfortable working height and stabilizes the machine during the bending process • Made from the finest quality components, including heavy cast iron clamp handles, to maintain rigidity • Baileigh Industrial covers this Sheet Metal Brake with a 1-year parts warranty
Specifications
| Box Quantity | 1 |
| Approx. Pressure (Tons) | 96 Ton |
| Mild Steel Capacity (Gauge) | 12 |
| Motor (HP) | |
| Nose Radius | |
| Number and Width of Fingers | |
| Overall Dimensions (L x W x H) | |
| Overall Length | 96" |
| Product Type | Straight Sheet Metal Brakes |
| Short Description | *Manual straight brake *12-gauge mild steel capacity *8-foot length *Bends up to 135° |
| Maximum Lift of Beam | |
| Maximum Box Depth | |
| Beam Adjustment (Front to Rear) | 1" |
| Bending Length Capacity | |
| Configurable Base Item | |
| Configurator Option Type | |
| Finger Nose Angle (Deg.) | |
| Input Power | Manual |
| Max. Bend (Deg.) | |
| Max. Clamping Bar Lift | |
| Table Length | 96" |
