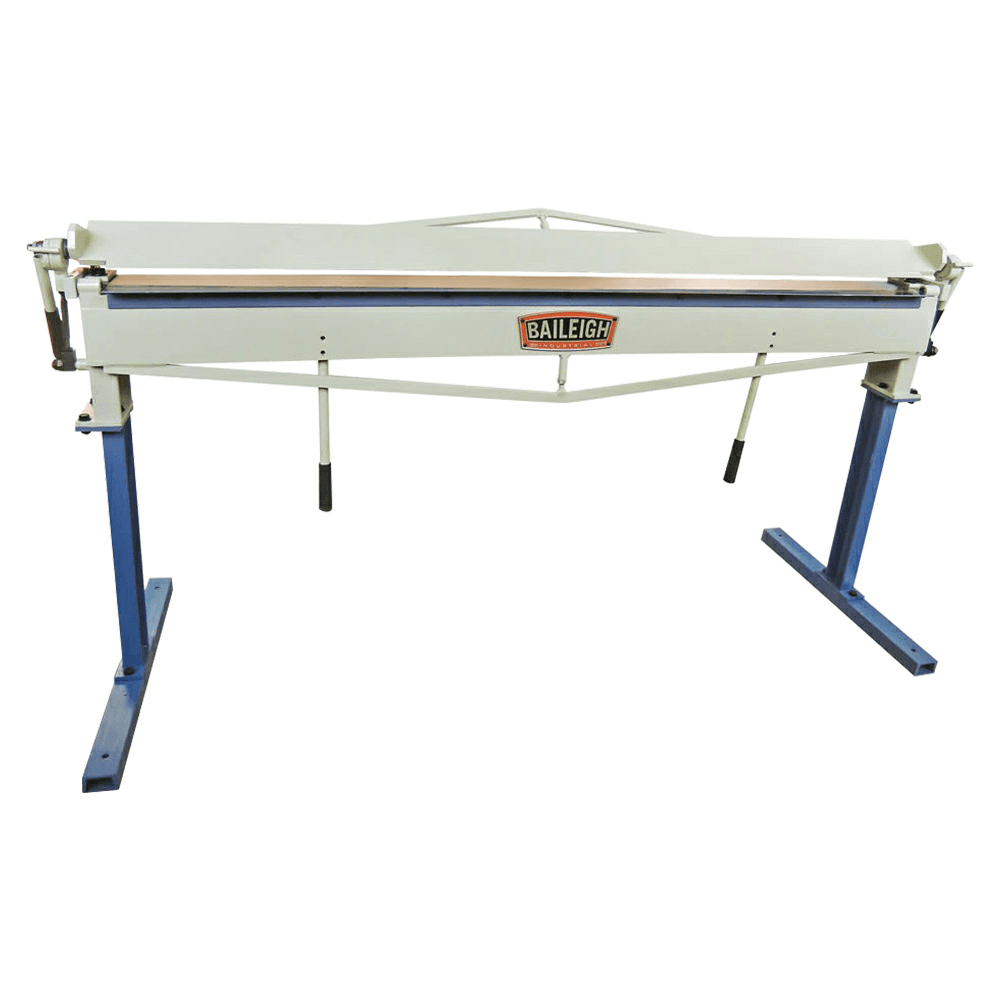

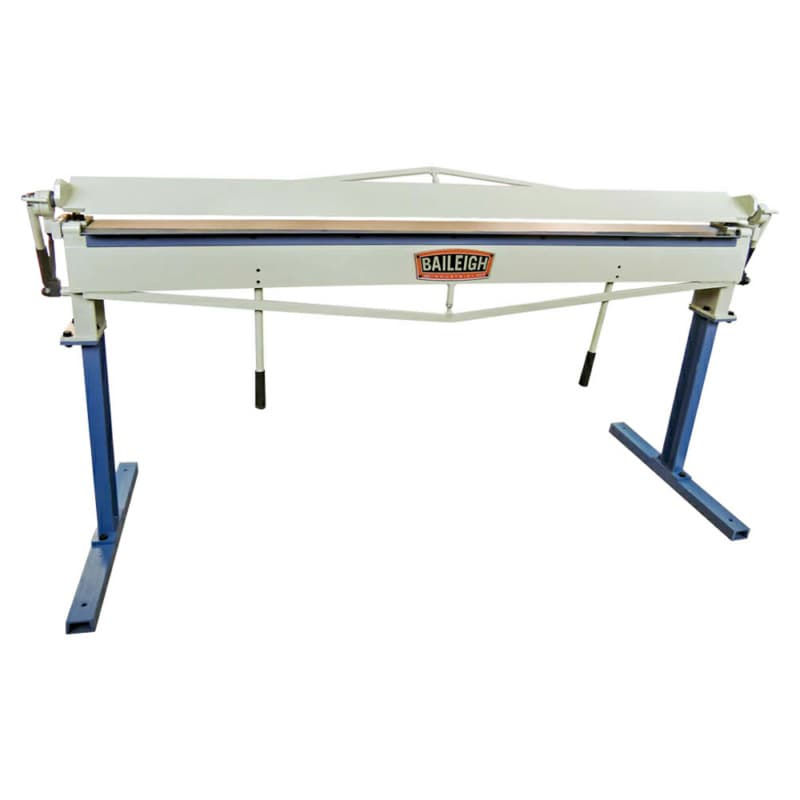

Baileigh HBR-7222 Hand Brake
This item may incur additional shipping costs and lead times.
Product Details

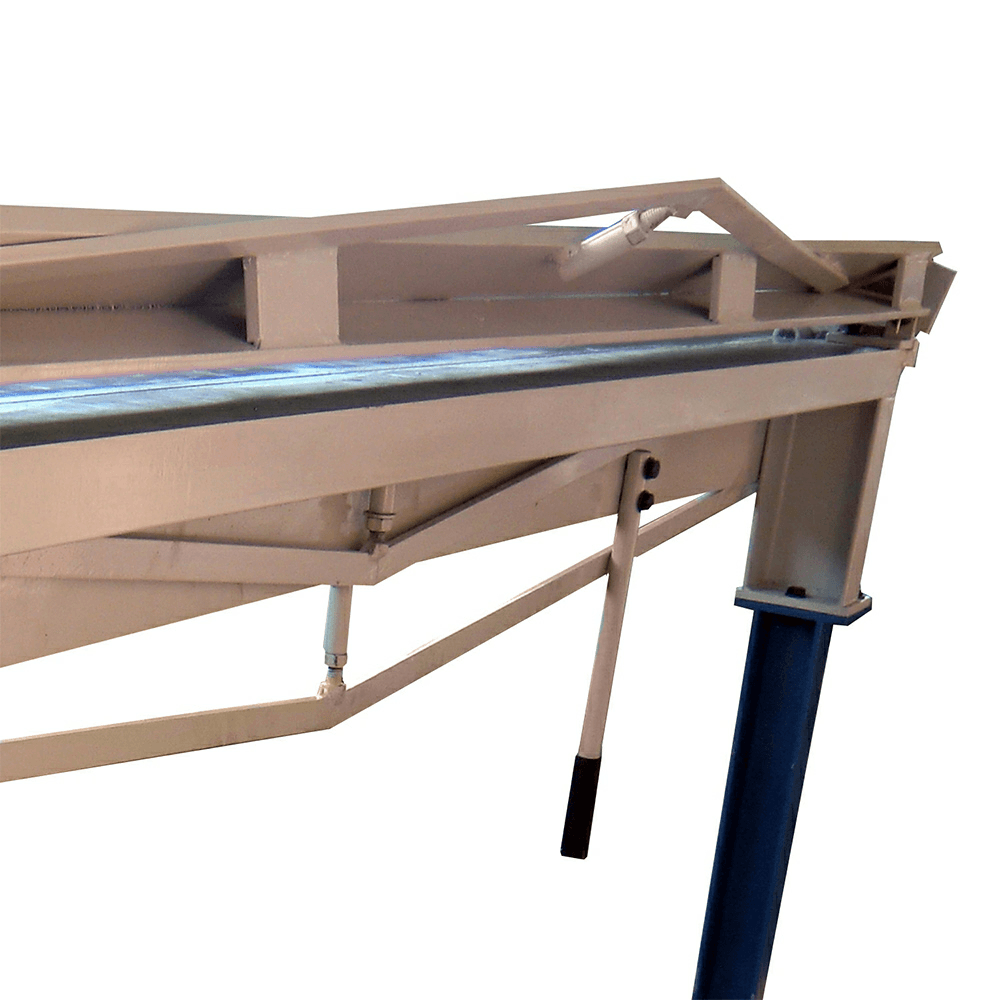

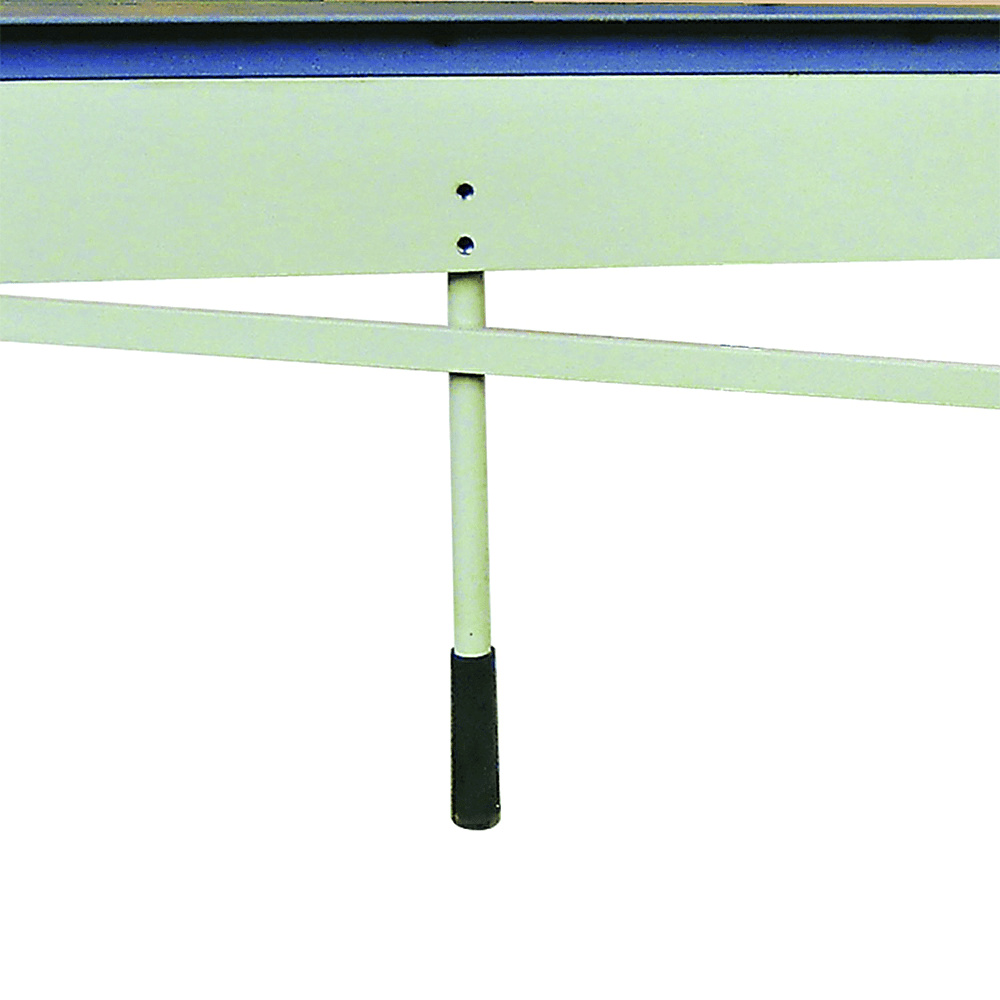

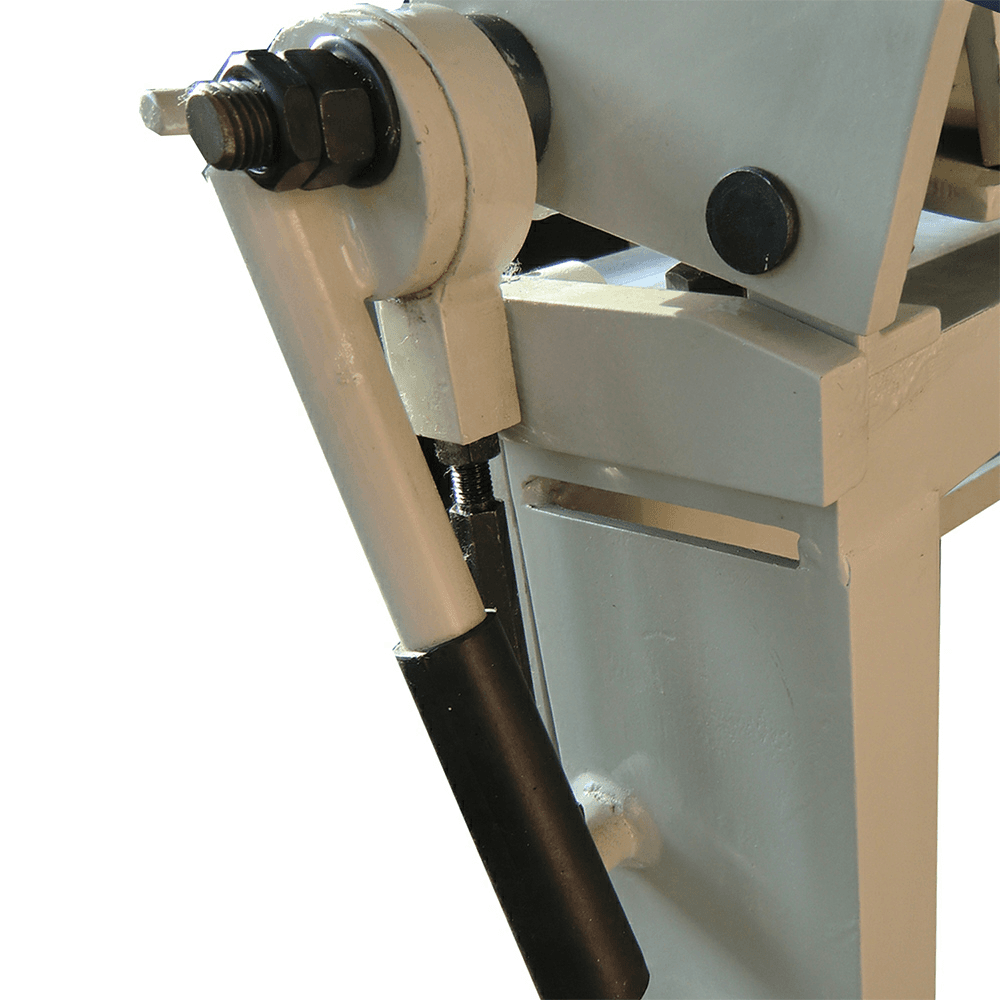

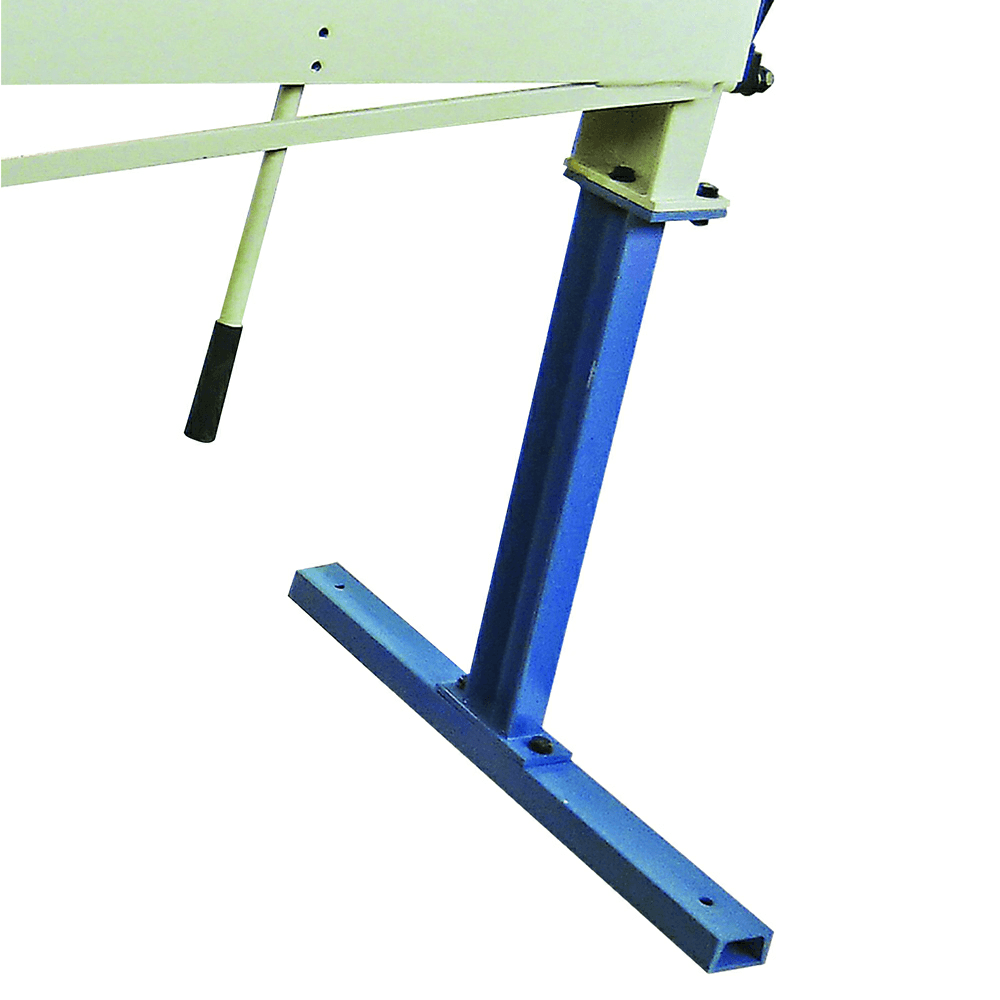

This 72" manual hand brake maintains accuracy with a fully-welded framework, made of heavy steel plate including support trusses on the top and bottom. Features: • 22-gauge mild steel maximum capacity • Easily bends across its entire 6-foot length at full capacity • Angle of up to 120° • Right and left precision cam lever arm carefully lifts or drops to clamp the material • Adjustable clamping pressure lets you accommodate more delicate work • Comes standard with heavy-duty steel floor stand
Downloads
Specifications
| Box Quantity | 1 |
| Approx. Pressure (Tons) | |
| Mild Steel Capacity (Gauge) | 22 |
| Motor (HP) | |
| Nose Radius | |
| Number and Width of Fingers | |
| Overall Dimensions (L x W x H) | |
| Overall Length | |
| Product Type | Straight Sheet Metal Brakes |
| Short Description | *Manual straight metal brake *22-gauge mild steel capacity *6-foot length *Bends up to 120° |
| Maximum Lift of Beam | |
| Maximum Box Depth | |
| Beam Adjustment (Front to Rear) | |
| Bending Length Capacity | 72" |
| Configurable Base Item | |
| Configurator Option Type | |
| Finger Nose Angle (Deg.) | |
| Input Power | Manual |
| Max. Bend (Deg.) | |
| Max. Clamping Bar Lift | |
| Table Length |
