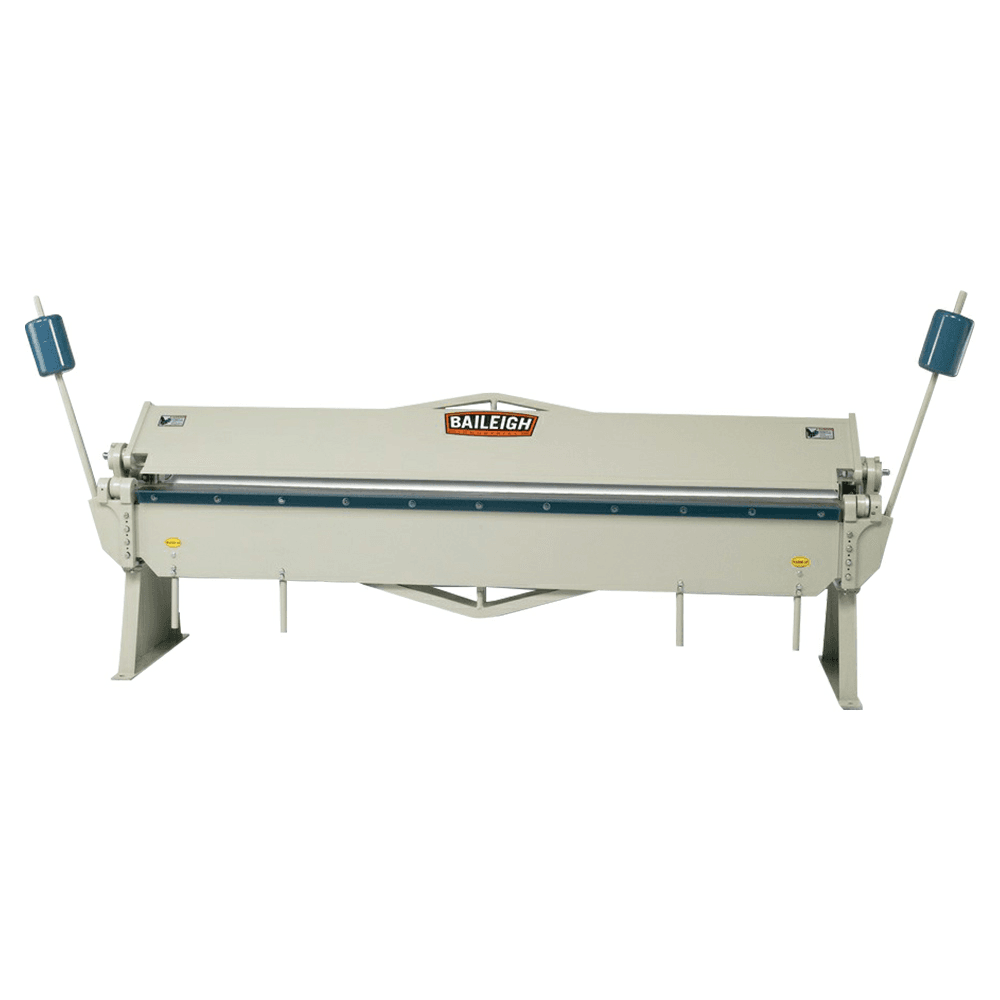

Baileigh HB-12014 Straight Sheet Metal Brake
This item may incur additional shipping costs and lead times.
Product Details

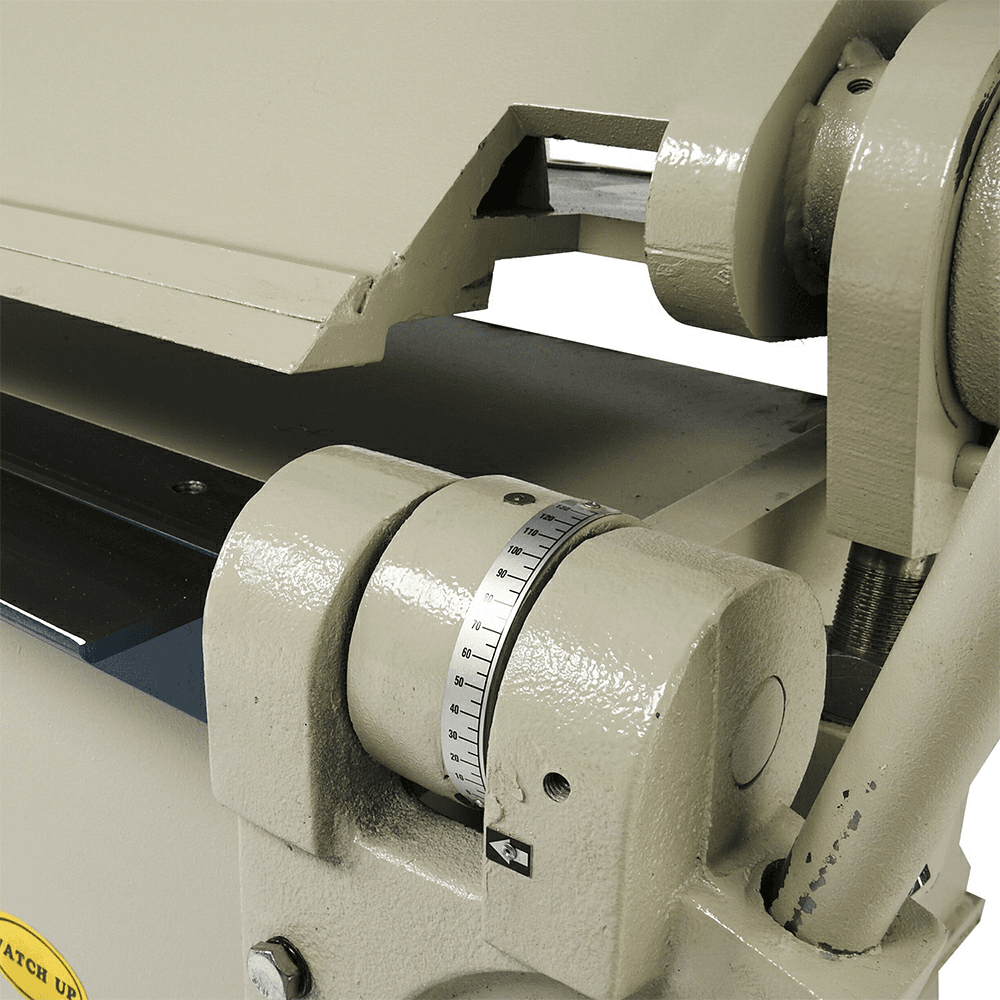

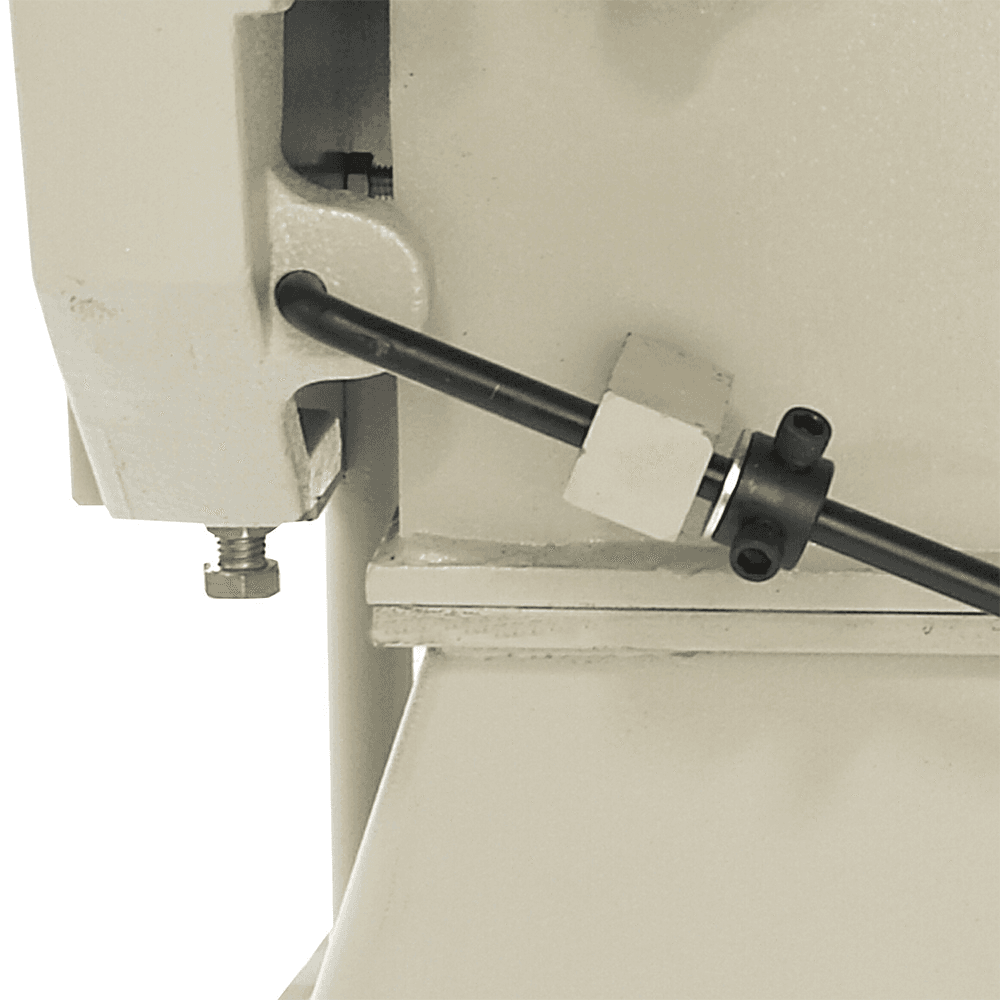

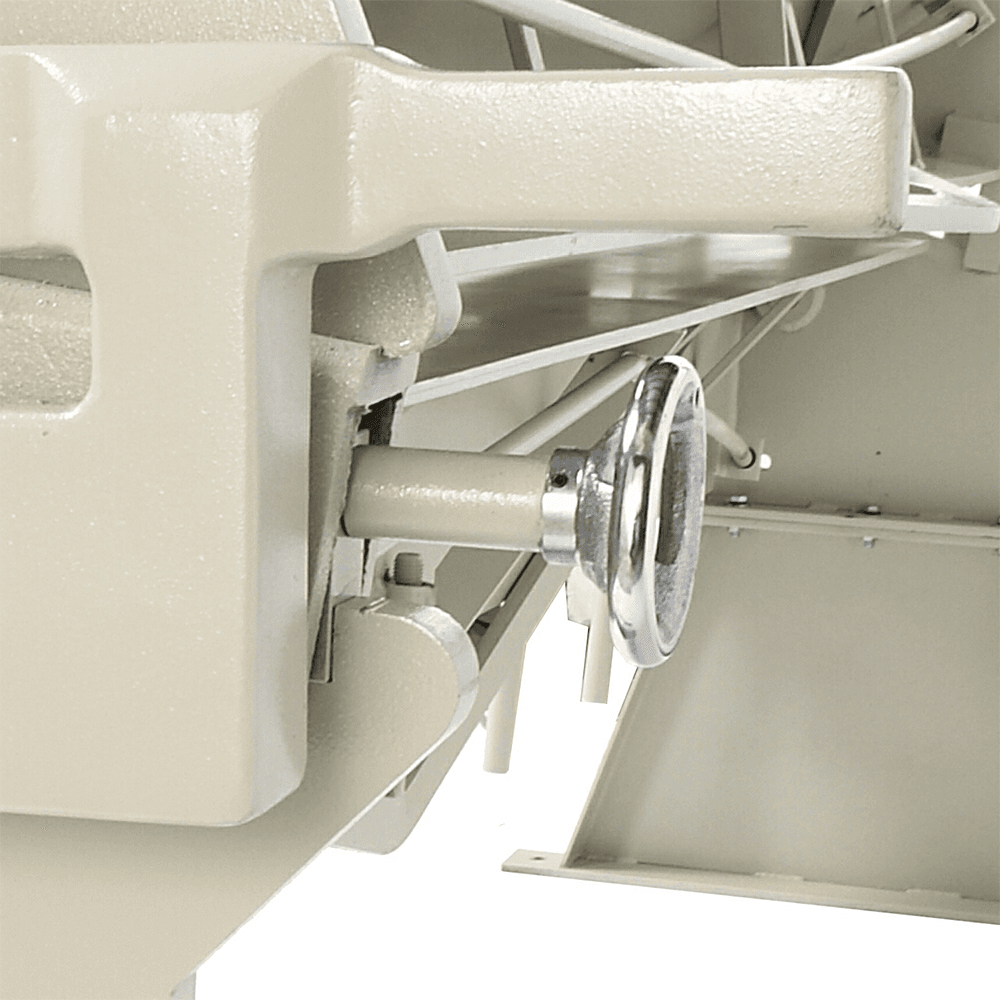

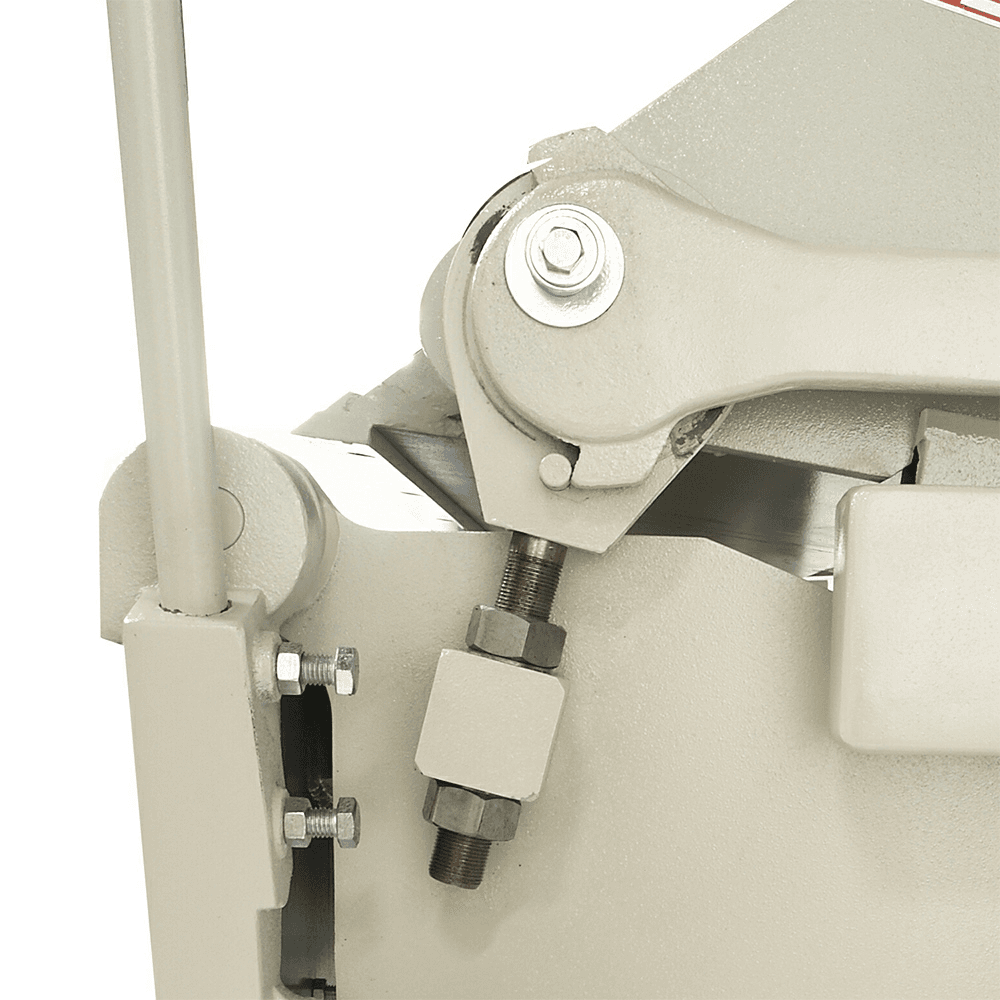

With a welded steel frame, this manual sheet metal bender is strong enough to bend 14 gauge mild steel across its full length of 10 feet (120"). Features: • Maximum bend angle of 135° • 10-foot sheet metal brake made using only the highest-quality materials • Machined bending leaf pivots ride in precision bushings, allowing for better bend tolerances and minimizing operator fatigue • 2 massive counterweights on the bending apron reduce the effort of bending at maximum capacity • 1-piece bending blade, machined to perfection, achieves a tight bend radius • Top beam depth adjusts to fit different material thickness • Comes standard with stop rod to ensure repeatability for production runs • Thick, fully welded steel plate frame maintains accuracy and keeps the machine from buckling at full capacity
Specifications
| Box Quantity | 1 |
| Approx. Pressure (Tons) | 144 Ton |
| Mild Steel Capacity (Gauge) | 14 |
| Motor (HP) | |
| Nose Radius | |
| Number and Width of Fingers | |
| Overall Dimensions (L x W x H) | |
| Overall Length | 120" |
| Product Type | Straight Sheet Metal Brakes |
| Short Description | *Manual straight brake *14-gauge mild steel capacity *10-foot length *Adjustable top beam depth |
| Maximum Lift of Beam | |
| Maximum Box Depth | |
| Beam Adjustment (Front to Rear) | 1" |
| Bending Length Capacity | |
| Configurable Base Item | |
| Configurator Option Type | |
| Finger Nose Angle (Deg.) | |
| Input Power | Manual |
| Max. Bend (Deg.) | |
| Max. Clamping Bar Lift | |
| Table Length |
