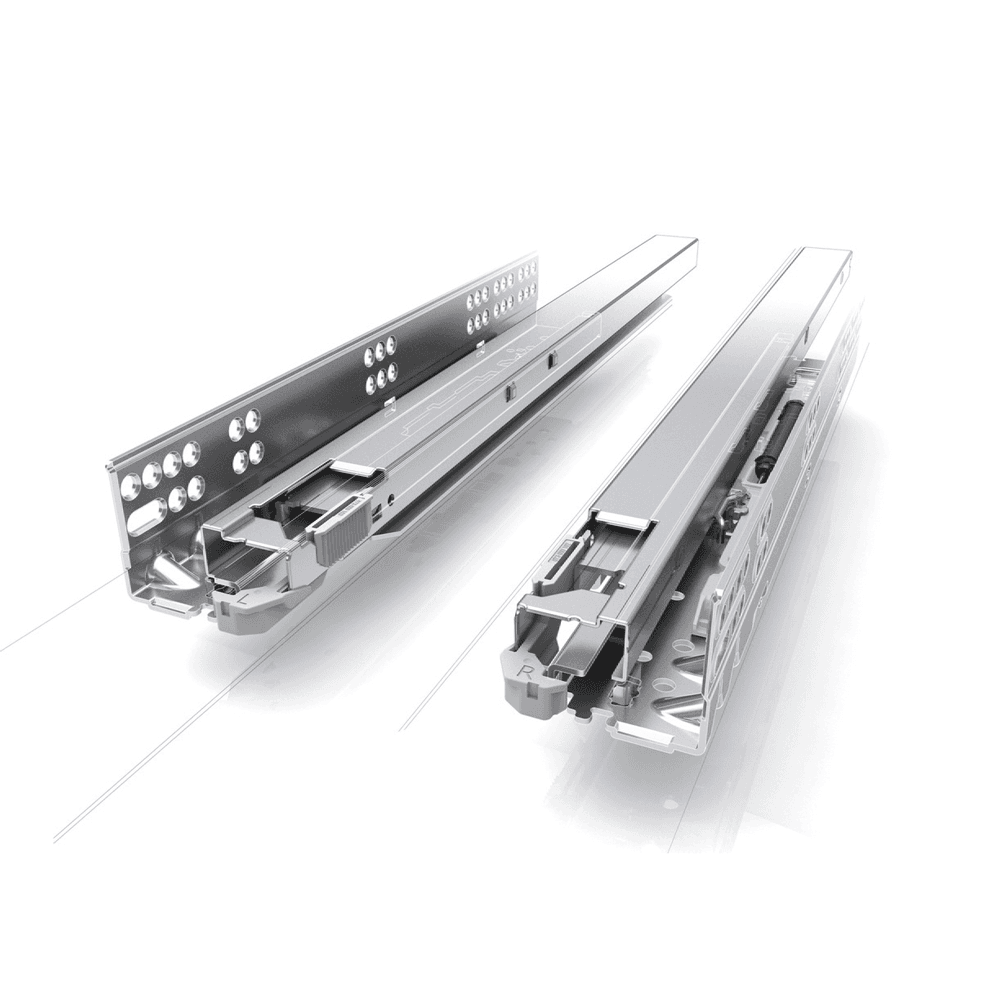

15" Dynapro 16 2D Undermount Drawer Slide for 5/8" Material, 100lb Capacity Full Extension Soft-Closing

Dynapro 16 2D Standard Duty Undermount Slides for Drawer Material Thickness 1/2" to 5/8"

Dynapro’s enhanced features benefit manufacturers, cabinet makers, designers, and homeowners alike. With its excellent running performance at high loads, synchronized smooth extension, and ability to accommodate 48" wide drawers without additional hardware, Dynapro provides a premium option for customers seeking the premier solution for their undermount slides.
Dynapro 2D offers both height and side adjustment, as well as depth adjustment via the front locking device. Dynapro’s integrated German-made Soft-close damper brings the drawer to a gentle, even rest, even when fully loaded or slammed. Its extensive adjustability and front locking device options ensure flawless operation and precise positioning in the cabinetry.
In addition, this system can be combined with Grass’ mechanical, push-to-open, handle-free Tipmatic system or the Sensomatic electronic opening system for additional functionality and ease of operation.

Features:
• Face frame or frameless applications from 12.7mm (1/2") up to 16mm (5/8") drawer material
• Full extension with a synchronized mechanism
• Fully enclosed soft-close liquid damping system
• Self-latching front locking devices have easy release levers for drawer removal and installation
• Height adjustment +3.5mm with suitable front locking device
• Side adjustment ±1.5mm with suitable front locking device
• Depth adjustment +3.0mm forward with suitable front locking device
• 100 lb load rating (45 kg)

Drawer Setback: 4mm (5/32")
See Locking Device for Inset Drawer Setbacks

NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY
Optional Rear Brackets Sold Seperately.
